I can control all colours and brightness (from within the colour picker and via domoticz api) except the white one
(Switching On / Off does work). And ofcourse within the app it does all work nicely.

Any RGB Colour I can select via:

http://192.168.1.2:8080/json.htm?type=command&param ...

Hi.
I have - Xiaomi Aqara Smart Light Switch WXKG03LM single-key.
Domoticz adds only a battery device. Light/Switch device does not appear. In MiHome everything works fine. Is this related to the Xiaomi gateway firmware (149)?

Sorry, its a german page, but Google-Translator is your friend ;). Your phone has to be in devmode and usb-debugging is activated. Connect your phone via usb to your pc.

i´ve used this tutorial to manage this: http://blog.gurskiy.com/?p=62

This is a russian page, but with google translator ...

Good job!
small problem

Excellent!

joebar wrote: On eBay I found very nice low profile adapters so the gateway and plugs are almost flush with the outlet like in China/Australia.

It is possible more in more detail?

You're right. It is possible and in a standard way. But the bug is present.

Comfort mode
Excellent work - level adjusts automatically.


Direct Valve Control mode
Work, level supports manually, but does not change the operation mode visually. However, the thermostat is working ...

Kayle wrote:
Hello Sevift,

did you manage also to get the actual Battery Level or cleaning time ?

Greetings Kay

Hello.
No. To do this, we must be able to decrypt the packets.

Click on MiHome search devices
and stop on vereschark intercept packets
search packets ip PC to ip Mi Robot
Снимок экрана 2017-01-10 в 18.49.44.png

Copy data

Run PacketSender
Paste ip, port, protocol, data
Снимок экрана 2017-01-10 в 18.54.36.png
And send

If the robot will respond ...

I should receve my mi robot soon, could you give me some informations to catch packets with wireshark? So that I could check if command are te same?

thanks

For example, a vacuum cleaner Search
Install BlueStacks on PC (Mac)
Install MiHome app on BlueStacks and connect Mi Robot
Снимок экрана ...

Great ! via the gateway or something else ?

Via python script
Ok ! Can you share it please ?
I used vereschark to intercept packets.
I do not know whether they will suit you.
Probably everyone has their own packages.

#!/usr/bin/python

import socket
import sys
import codecs

UDP_IP = '192 ...

deennoo wrote:

Sevift wrote:

Sevift wrote:Xiaomi Mi Robot Vacuum - Is that possible? )

it's possible!

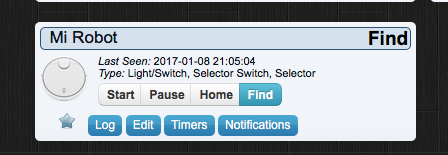

Снимок экрана 2017-01-08 в 21.06.53.png

Great ! via the gateway or something else ?

Via python script

Sevift wrote:Xiaomi Mi Robot Vacuum - Is that possible? )

it's possible!

I checked the work in the "Direct Control Valve" mode. Everything works fine.
Снимок экрана 2016-12-13 в 14.29.18.png

local tempNeed = tonumber(otherdevices_svalues[thermostatVName])
local tempHum = tonumber(otherdevices_temperature[tempHumName])

setLevel = (tempNeed - tempHum) * 100

if ...

But a glitch in OpenZWave Control Panel
When you switch to "Direct Valve Control" (nvalue=3), OpenZWave Control Panel will display the mode that you have chosen before.
Снимок экрана 2016-12-12 в 23.09.14.png
Снимок экрана 2016-12-12 в 23.14.40.png
But this does not affect the work.
You need to ...

My observations
JSON
/json.htm?type=command&param=udevice&idx=...&nvalue=1 - comfort
/json.htm?type=command&param=udevice&idx=...&nvalue=0 - frost

everything else is not working

upd
/json.htm?type=command&param=udevice&idx=...&nvalue=2 - Energy Saving
/json.htm?type=command&param=udevice&idx ...

Xiaomi Mi Robot Vacuum - Is that possible? )

I have it so

Egregius wrote:Isn't 10/30 a bit overkill?
I use a function that sets the valva 1 degree lower or higher for each 0,1 temp difference. That way they're somewere half open if temp is reached.

Thanks.

STELLAZ - using the second year

local upTemp = 30
local downTemp = 10
...
if tempTempHum - tempTsV <= delta then
setTemp = upTemp
elseif tempTempHum - tempTsV >= 0 then
setTemp = downTemp
end
...
commandArray[#commandArray+1] = {['UpdateDevice'] = thermostatIdx..'|0|'..tostring(setTemp)}
