Thanks for the quick help and solving my error !

It's working now for me as well

Jos,

unfortunately both does not work. I have tried M_opzet and M_opzet_api.

The website returns with an error.

I can get the data with the following url returned a json

https://afvalkalender.purmerend.nl/rest ... ender/2022

Hi Jos

Was running the old script for years now, but suddenly stopped ( i believe for 2 weeks now).

https://afvalkalender.purmerend.nl/

Is my calendar url. Couldn't find it in this topic.
Trying to get the new script to work..
Can you please advise me what module I have to enable to get it to ...

Sjonnie, what is the normal status ?
Mine is moving from MQTT ,starting , shutting down.

Pick a status which has a daily change and you can check if your script is working.....

So , better ( if your inverter supports it ) connect yourself to the modbus over TCP-IP.
Unfortunately not seen the optimizers yet...

solarboy wrote: Sunday 29 August 2021 21:37 Hi Freijn..
The output is "throttled=0x80000"
Hope this helps...Raspberry pi 3b if that helps.

If you have made a 1 to 1 copy the only issue I can see is the version of DzVents.

I need more time to investigate. sorry..

Frank

2021-08-29 19:30:00.401 Status: dzVents: Error (2.4.19): RPI Sensor Value Script: ...z/scripts/dzVents/generated_scripts/Rpi Undervoltage.lua:46: attempt to call field 'stringSplit' (a nil value)


@Mr Boy

Can you please goto the command line and issue :

vcgencmd get_throttled

and share the ...

The script causes the following error in the domoticz log:

2021-08-29 19:59:00.508 Error: dzVents: Error: (3.1.7) RPI Sensor Value Script: vcgencmd get_throttled
2021-08-29 19:59:00.528 Error: dzVents: Error: (3.1.7) RPI Sensor Value Script: throttled,0x0




Jan , I have removed the ...

Thanks

I think you have an unnexpected } at end of the script ?

Very much true! Thanks !! Removed it.


What does it means throttled ?


To my understanding ( in your situation ) while voltage is under required, the speed of the PRI is throttled ( reduced/slowed down)
So if you fix your power ...

@Multinet

I think you are in troubles.....

0x50005 means you are currently under-voltage and throttled.

I have updated the script in the first post. Please replace the old one with this and let me know.
Also please change your powersupply!

Cheers,

Frank

Hello

Thanks for the scripts ;)

i tried it but i get error :

2021-08-29 13:57:02.913 Error: dzVents: Error: (3.0.2) TIMER-RPI Health: vcgencmd get_throttled
2021-08-29 13:57:03.151 Error: dzVents: Error: (3.0.2) TIMER-RPI Health: throttled,0x50005
2021-08-29 13:58:03.065 Error: dzVents: Error ...

Dear members,

Often you find others in troubles for not having the correct powersupply for the Raspberry.
The Raspberry starts complaining but only in the UI of the o.s.
After reading again that somebody was in troubles because of this, I decided to write a little script for monitoring Raspberry Pi ...

it send s {"idx":20373,"nvalue":0,"svalue":"0.00"}
I don´t know why?


in = {"idx":4095,"nvalue":0,"svalue":"13.00"} is my datagram

What hardware (wemos, ESP ? ) are you using and on what pin have you connected the TX line coming from the sensor?

Anybody intrested to work with me to get this one in Tasmota or ESPeasy ?

mastadook wrote: Thursday 19 August 2021 11:39
Any Idea why?
I used Air Quality sensor
should I try with a Custom Sensor instead?

Yeah, to a custom sensor it works perfectly.

Wauw! Well done Marc, will defenitely have a look into it. Very interesting!

Thanks,

Frank

Hi Jeroen,

Please sent me your email by PM and I wetransfer the files to you.

For sure the script will work on windows, The "only" thing you need to take care of is the serial port name.

Linux is /dev/ttyxxx Windows would be com4 or so. I guess there are 100 examples on how to do that.

Cheers ...

Joost,

The issue is that you only detect a status from the sensor you need to detect the change only. The so called flank.


if (devicechanged['GPIO Watermeter'] == 'Off') then

when the meter stops just under the sensor your led is always activated or vise vera, not activated.

The Lua script ...

We have plans to buy Controlicz

I hope you mean Subscription ?


We have domoticz on port 8080 and forwarding this port.
Is it possible to use this port 8080 in Controlicz or does it have to be an ssl connection 443.

No it has to be 443


Do we have to forward the port too?

Yes



Could ...

Guys,

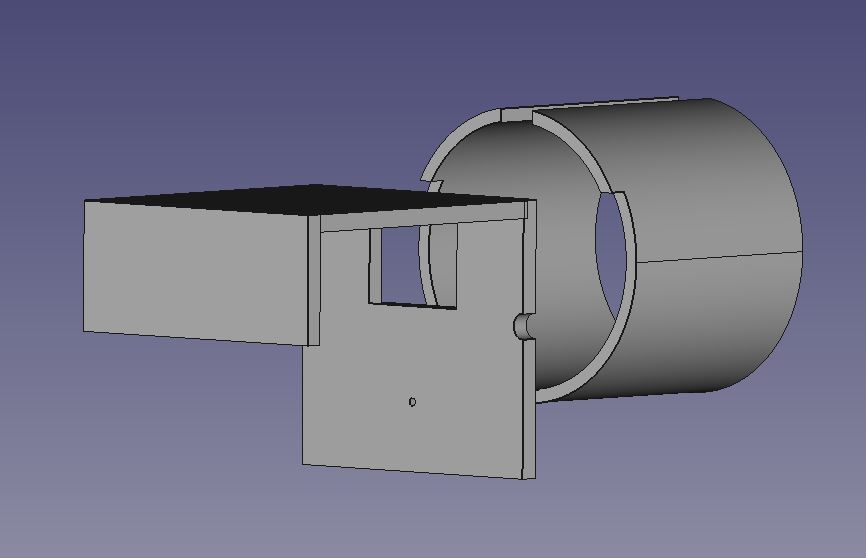

I have my IR sensor attached to the Kamstrup with this 3D printed holder.
Let me know if you are interested in the .stl
