my water meter.

[remb0]

Watersensor

ordered from iPrototype.nl
https://iprototype.nl/products/componen ... e-tracking
Line tracking sensor - digitaal

Specs
Power: +5V
Operatie stroom: <10mA
3-wire output.
Output: TTL(Zwart voor LOW output, Wit voor HIGH output)

price: €5,95

[Ritmeester]

Thanks. This looks good.

In this article number: 82649264 ?

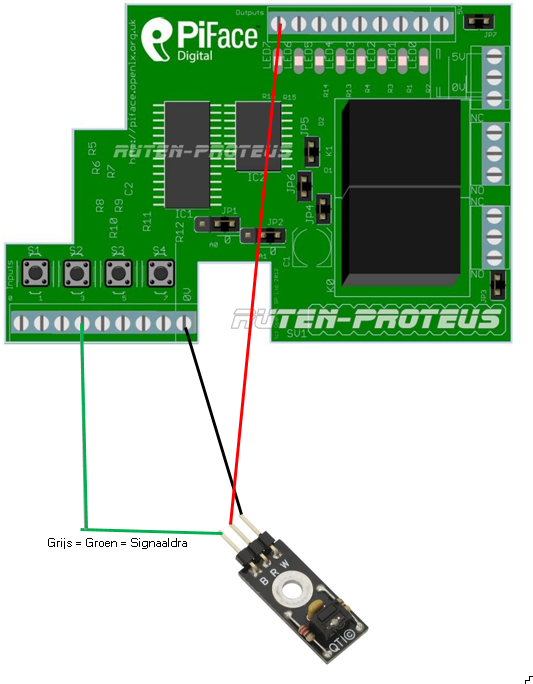

(P.S, the red wire goes to Output pin 7 instead of 5V on the PiFace in your schematic)

[remb0]

don't know why but I have this als my schema. but it works.

Thanks. This looks good.

In this article number: 82649264 ?

(P.S, the red wire goes to Output pin 7 instead of 5V on the PiFace in your schematic)

[bistoury]

Hi remb0 ! Can you pleade detail that piece of hardware that you connect to your piface (brand, référence, supplier cost...).

I have the same king of water meter but i do not want to invest into the official pulse module (itron cyble V2) because it cost more than 50€.

So any detail or idea is welcome.

Regards
[edit] ok, iprototype.nl - didn't see that. But how do you fix it to the water meter ? Is it in front of the metal wheel ? [/edit]

[Ritmeester]

Hi remb0 ! Can you pleade detail that piece of hardware that you connect to your piface (brand, référence, supplier cost...).

Try this one: http://r.ebay.com/Ox4XvE I just ordered a couple.

Analog and Digital output. $1.75 = € 1,27 including shipping.

[bistoury]

I have also find this :
http://gobotics.com/index.php?route=pro ... duct_id=80

Remb0 : if i ordre your module, what else do i need (apart from a ip and a piface) ?
Does it work the same than the previous one ? Is it the same electrical schematic ?

On the module i have found (gobotics), i understand that it is in fact an IR sensor. Is it the case ?

I ma not sûre to understand everything here...

[bistoury]

Hummmm.... Now ebay is bloc king me due to country restrictions (i am inFrance)

[Raspberry Piet]

Hi remb0 ! Can you pleade detail that piece of hardware that you connect to your piface (brand, référence, supplier cost...).

Try this one: http://r.ebay.com/Ox4XvE I just ordered a couple.

Analog and Digital output. $1.75 = € 1,27 including shipping.

Yes these TCRT5000 sensors work very well (glued on my powermeter and also gasmeter).
But i bought some other type for my watermeter. (The one that is mentioned here =>http://www.domoticz.com/wiki/PiFace)
Cause i doubt this TCRT5000 sensor will work foolproof for long time when it is in a humid area under the floor where my watermeter is.

[Ritmeester]

Hummmm.... Now ebay is bloc king me due to country restrictions (i am inFrance)

Try to find another seller. There are more sellers who sell this and ship to France.

http://www.ebay.com/sch/i.html?_sacat=0 ... =2&_sop=15

[bistoury]

Ok i understand that nothing has to be soldered. Good point. Now second one : how do you fix it to the water meter ? And 3rd one : is the electrical schematic the same the above ?

[Ritmeester]

Cause i doubt this TCRT5000 sensor will work foolproof for long time when it is in a humid area under the floor where my watermeter is.

I will use Heatshrink (Krimpkous) to safe it. Only the LED’s not

[Raspberry Piet]

Cause i doubt this TCRT5000 sensor will work foolproof for long time when it is in a humid area under the floor where my watermeter is.

I will use Heatshrink (Krimpkous) to safe it. Only the LED’s not

Still then... when the glass is moist the IR light will dissipate and the sensor couldn't work properly <= Did not test this so maybe just in theory.

[Ritmeester]

don't know why but I have this als my schema. but it works.

(P.S, the red wire goes to Output pin 7 instead of 5V on the PiFace in your schematic)

Yes, It can work because on your 8 outputs are normally 3.9 Volt between the Input Block (0V-GND) and de Output Block (5V) You can’t use that Output port anymore for something else. I rather choose for the 5V on the Output Block.

[remb0]

edited my start post

[BigDog]

Very interesting and good /easy to use and make going to order 2

[bizziebis]

Bought this sensor from Ebay: http://bit.ly/RawnMy

It's working but it is hard to position it to work right.

How/where did you guys mount the sensor?

I'll post a picture of my mounted sensor later tomorrow.

Edit: pictures



I've edited the database to match the real watermeter usage. So in a couple of days I can see how reliable the sensor is. To be continued...

[Keptenkurk]

@bizziebis
I use a large hose clamp to fix my sensor (but my solution senses the half moon with lowcost proximity sensor: proved to be very reliable). But my fixing method could also be used to put your type of sensor at an angle. See pictures and more details in wiki http://www.domoticz.com/wiki/PiFace paragraph "Water Meter Sensor".
/paul

[kobold]

Bought this sensor from Ebay: http://bit.ly/RawnMy

It's working but it is hard to position it to work right.

How/where did you guys mount the sensor?

I'll post a picture of my mounted sensor later tomorrow.

I've edited the database to match the real watermeter usage. So in a couple of days I can see how reliable the sensor is. To be continued...

I've got the same sensor but how did you connect it to the raspberry pi?

[jadijkstra2000]

don't know why but I have this als my schema. but it works.

(P.S, the red wire goes to Output pin 7 instead of 5V on the PiFace in your schematic)

Yes, It can work because on your 8 outputs are normally 3.9 Volt between the Input Block (0V-GND) and de Output Block (5V) You can’t use that Output port anymore for something else. I rather choose for the 5V on the Output Block.

Output 5 volt will blow up input ports right?

[Derik]

I did my:
https://imageshack.com/i/fvmdz4j

With the solarmeter, and then i import the data..
