Bar chart in dashticz - block definition

[Daro1003]

Please help me define a block in dashticz total energy.
I want to add a bar chart because now I have a linear one, I used the following instructions: https://dashticz.readthedocs.io/en/mast ... raphs.html
but somehow I don't manage to insert a block like this:

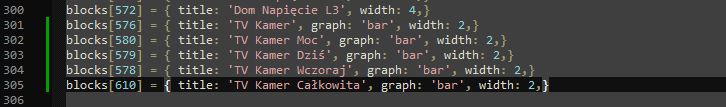

blocks[610] = { title: 'TV Kamer Całkowita', devices: [6], graph:'bar', width: 2,}
and still nothing, line graph.
Please help me how to define a block in dashticz so that a bar chart is displayed as in the instructions.

[willemd]

Code: Select all

blocks[610] = { title: 'TV Kamer Całkowita', devices: [6], graph:'bar', width: 2,}

It seems 6 is your device so 610 is just a title, therefore it should be between quotes.

Code: Select all

blocks['610'] = { title: 'TV Kamer Całkowita', devices: [6], graph:'bar', width: 2,}

of course also in your column definition you should then refer to '610'

Better to give it a meaningfull title like 'TV Kamer Całkowita''in your case

so

Code: Select all

blocks['TV Kamer Całkowita'] = { title: 'TV Kamer Całkowita', devices: [6], graph:'bar', width: 2,}

[Daro1003]

Then something is wrong because this entry doesn't work:

Code: Select all

blocks['610'] = { title: 'TV Kamer Całkowita', devices: [6], graph:'bar', width: 2,}

columns[38] = { blocks : ['blocktitle_13',576,580,579,578,'610'], width: 12}

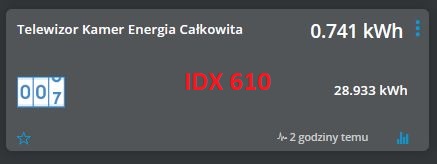

610 - this is the idx of the device in domoticz that I want to display in a bar chart

So in this notation:

Code: Select all

blocks['TV Kamer Całkowita'] = { title: 'TV Kamer Całkowita', devices: [6], graph:'bar', width: 2,}

how does dashticz know what domoticz block should show?

Code: Select all

blocks[610] = { title: 'TV Kamer Całkowita', graph:'bar', width: 2,}

doesn't work
I want to display a bar chart of this device in domoticz:

[Lokonli]

With '610' as key Dashticz normally will display a default Domoticz block for device with domoticz id 610

You can enforce to display it as a graph as follows:

Code: Select all

blocks['mykey'] = { title: 'TV Kamer Całkowita', graph:'bar', devices=[610], width: 2, type:'graph'}

If you want to show all data in one graph:

Code: Select all

blocks['mykey'] = { title: 'TV Kamer Całkowita', graph:'bar', devices=[576, 580, 579, 578, 610], width: 2, type:'graph'}

[Daro1003]

I managed to display the chart, but I wanted the dashticz to display a bar chart after clicking on the block, not a line chart as in the instructions.
In the code you sent you have the error "devices=[610]" it doesn't work, there is a total error, it should probably be "devices:[610]"
And then there is a graph in the block:
I would like to display a bar chart instead of a line chart as it is now when clicking on a block.

[willemd]

If it is about the popup graph (you did not state that in your first question), then you should look at the documentation here:
https://dashticz.readthedocs.io/en/mast ... aph-window

[Daro1003]

I meant the chart that pops up after clicking on the block. Maybe I described it wrong, sorry.
But thanks to this I learned how to make a nice chart on a separate screen.
Now I will try to follow the instructions provided to make a pop-up bar graph after clicking on the block regarding total electricity.

[Lokonli]

You have to define a block for the popup parameter, like:

Code: Select all

blocks['tv'] = { title: 'TV Kamer Całkowita', idx:610, width: 2, popup: 'tvgraph'}
blocks[ 'tvgraph'] = { devices: [610], type: 'graph', graph: 'bar'}

[Daro1003]

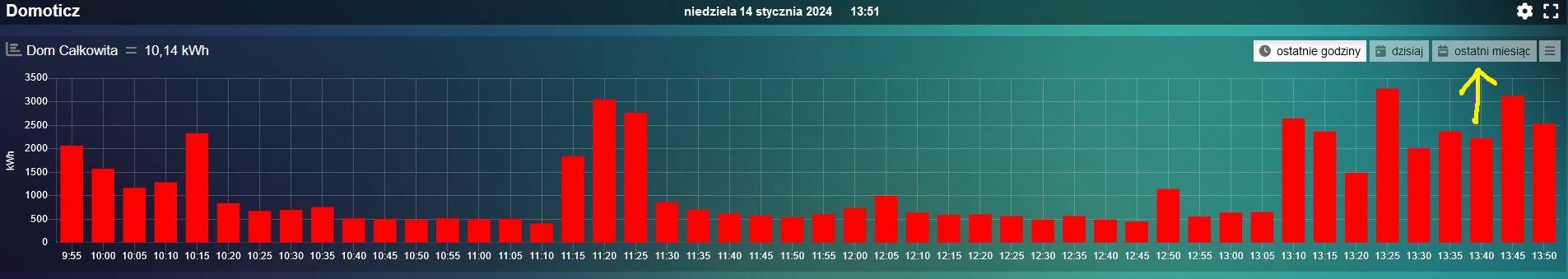

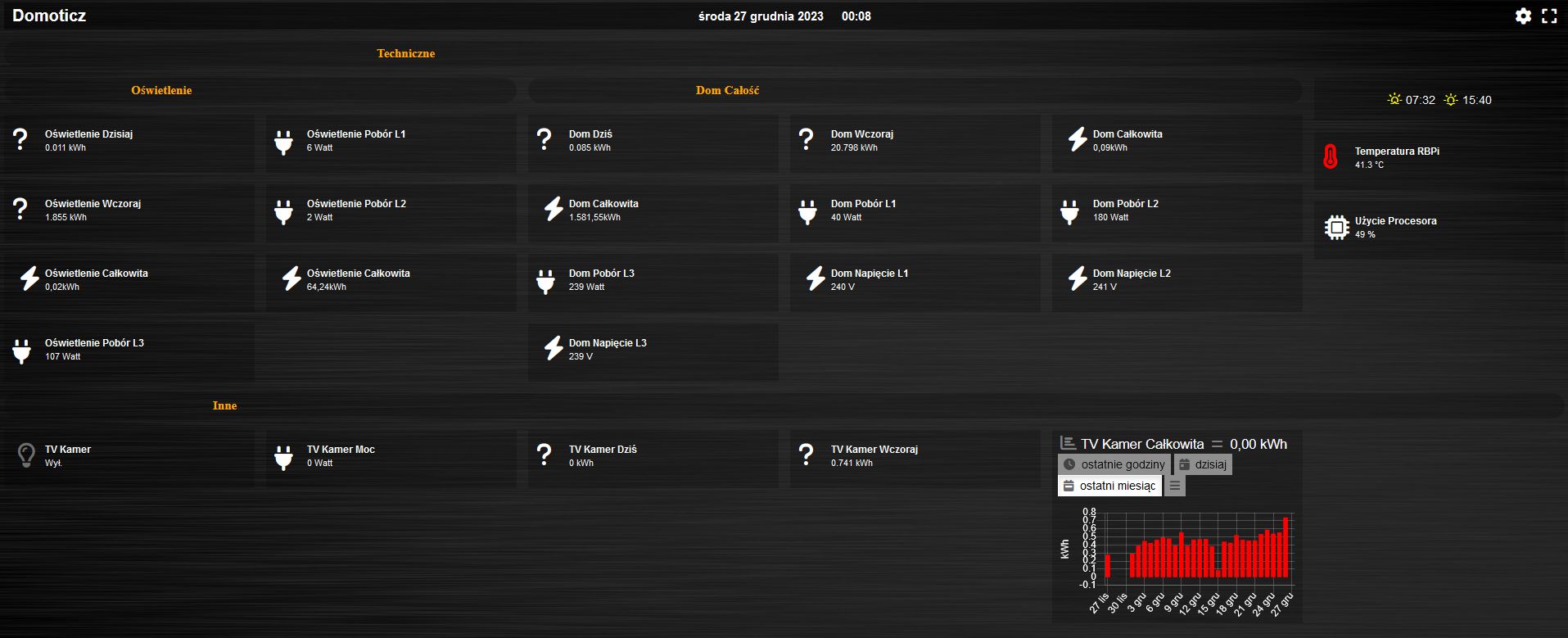

I have a question about the chart below, how to set it to display - the last month?

Code: Select all

blocks['wykres_dom'] = { title: 'Dom Całkowita', graph:'bar', devices:[618], width: 12, height: '300px', type:'graph'}

[willemd]

https://dashticz.readthedocs.io/en/mast ... tom-graphs

use range and filter as described in the manual, link above

[Daro1003]

I just wish the first view was a month and not 24 hours

[willemd]

I just wish the first view was a month and not 24 hours

Just change the order of the definition in your custom graph, so define the month graph first and then the 24 hours graph.

[Daro1003]

Do I understand correctly:

Code: Select all

custom: {range: 'month'}

I would like the month to be displayed because now I have to press the month button, by default it displays several hours

[willemd]

Do I understand correctly:

Code: Select all

custom: {range: 'month'}

I would like the month to be displayed because now I have to press the month button, by default it displays several hours

You have to create a CUSTOM graph as shown in the link and then define the month as the first in the list.

[Daro1003]

Or so:

Code: Select all

blocks['wykres2'] = {
    title: 'Całkowita',
	height: '300px',
    devices: [618],
    graph: ['bar'],
    custom : {
        "Miesiąc": {
            range: 'month',
            filter: '1 month',
			 data: {

            }
        },
        "Dziś": {
            range: 'today',
            filter: '1 days',
            data: {

            }
        },
        "Ostatnie godziny": {
            range: 'days',
            filter: '6 hours',
            data: {

            }
        }
    },
    legend: true,
    datasetColors:['blue','red','yellow']

And what should I enter in data? ?

[willemd]

d.v_618 , in line with the example in the manaul

[Daro1003]

Code: Select all

blocks['wykres2'] = {
    title: 'Całkowita Dziś',
	height: '300px',
    devices: [770],
    graph: ['bar'],
    custom : {
        "Miesiąc": {
            range: 'month',
            filter: '1 month',
			 data: {
				 nett: 'd.v_770'

            }
        },
        "Dziś": {
            range: 'today',
            filter: '1 days',
            data: {
				nett: 'd.v_770'

            }
        },
        "Cały Rok": {
            range: 'year',
            filter: '6 months',
            data: {
				nett: 'd.v_770'

            }
        }
    },
    legend: {nett: 'Godziny Dni Miesiące'},
    datasetColors:['blue','red','yellow']
}

Back to topic:

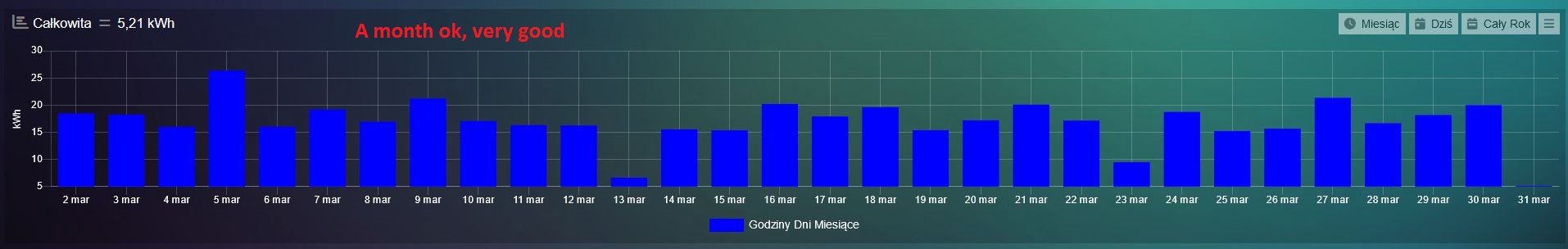

Monthly chart - ok, very good

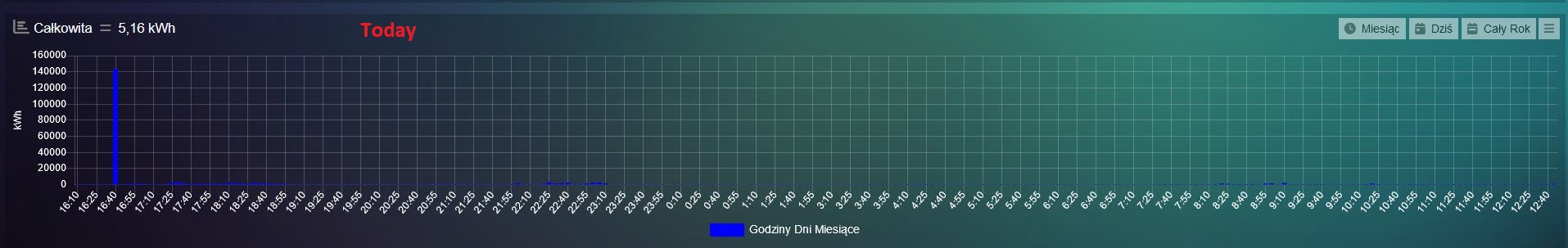

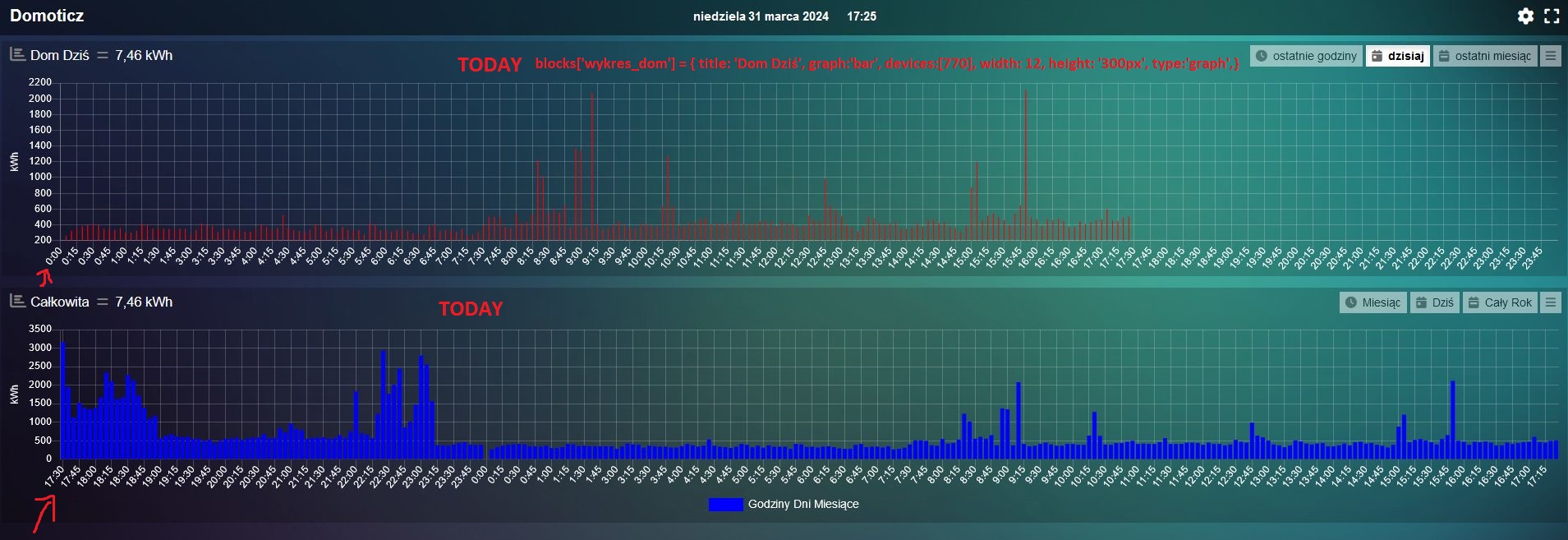

Today Chart - Not ok indications as in the picture

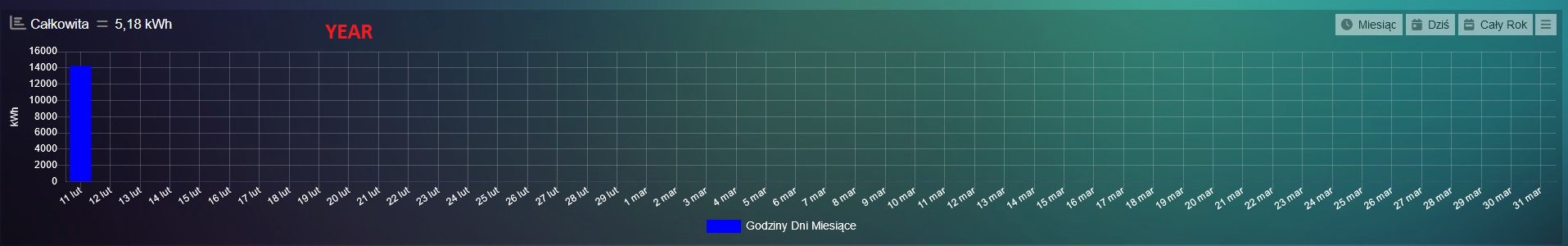

Year Chart - No ok it doesn't show the year.

What's wrong with my code?

In the Year Chart it should show the months and in the Today Chart it should show the hours from 00 to 23:59 but it shows otherwise, what is wrong?

Miesiąc ok Good.jpg (87.82 KiB) Viewed 747 times


[willemd]

How does the graph of this devcie in domoticz itself look like? Are you sure there is data for other moments?

[Daro1003]

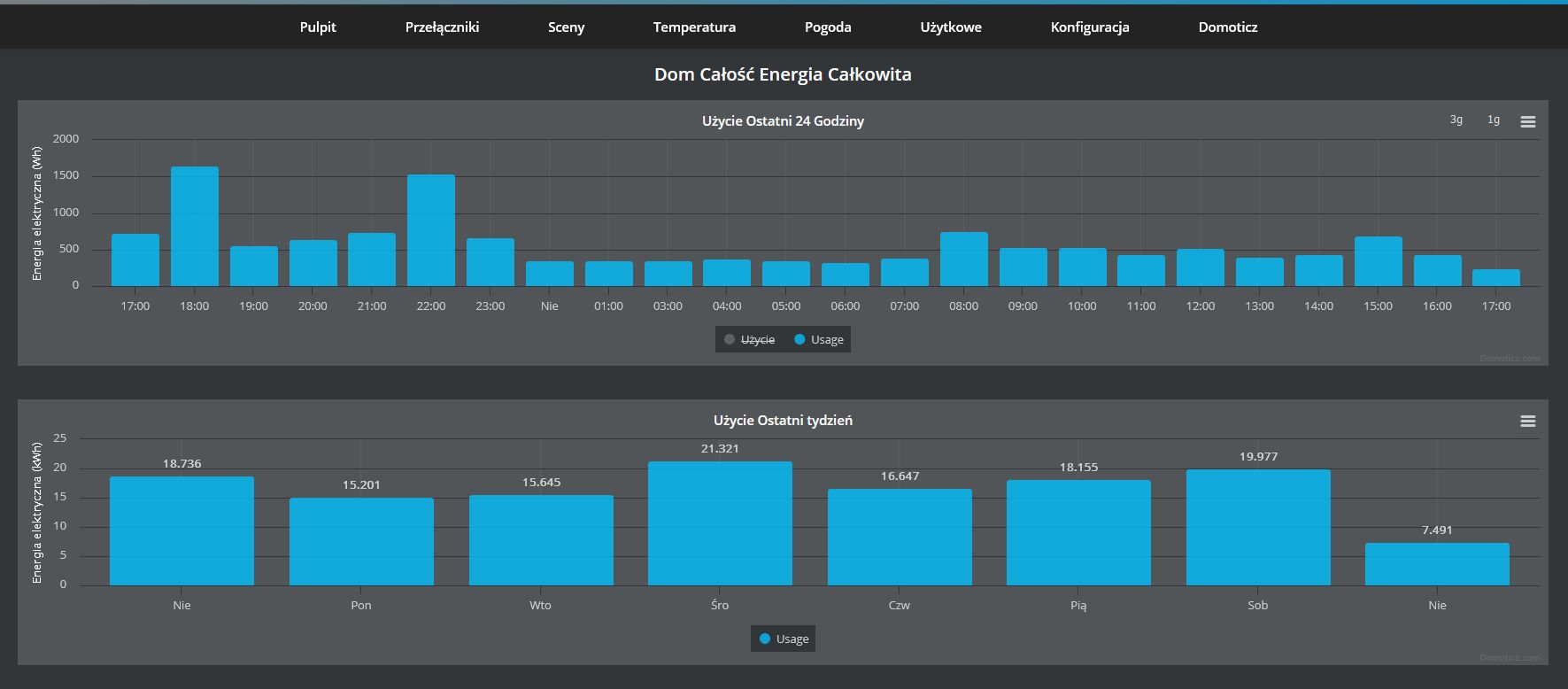

In red, a positive graph of the same domoticz device like this:

Code: Select all

blocks['wykres_dom'] = { title: 'Dom Dziś', graph:'bar', devices:[770], width: 12, height: '300px', type:'graph',}

In blue, the custom chart shows differently as you can see.
But in the meantime - a month is ok.




[Daro1003]

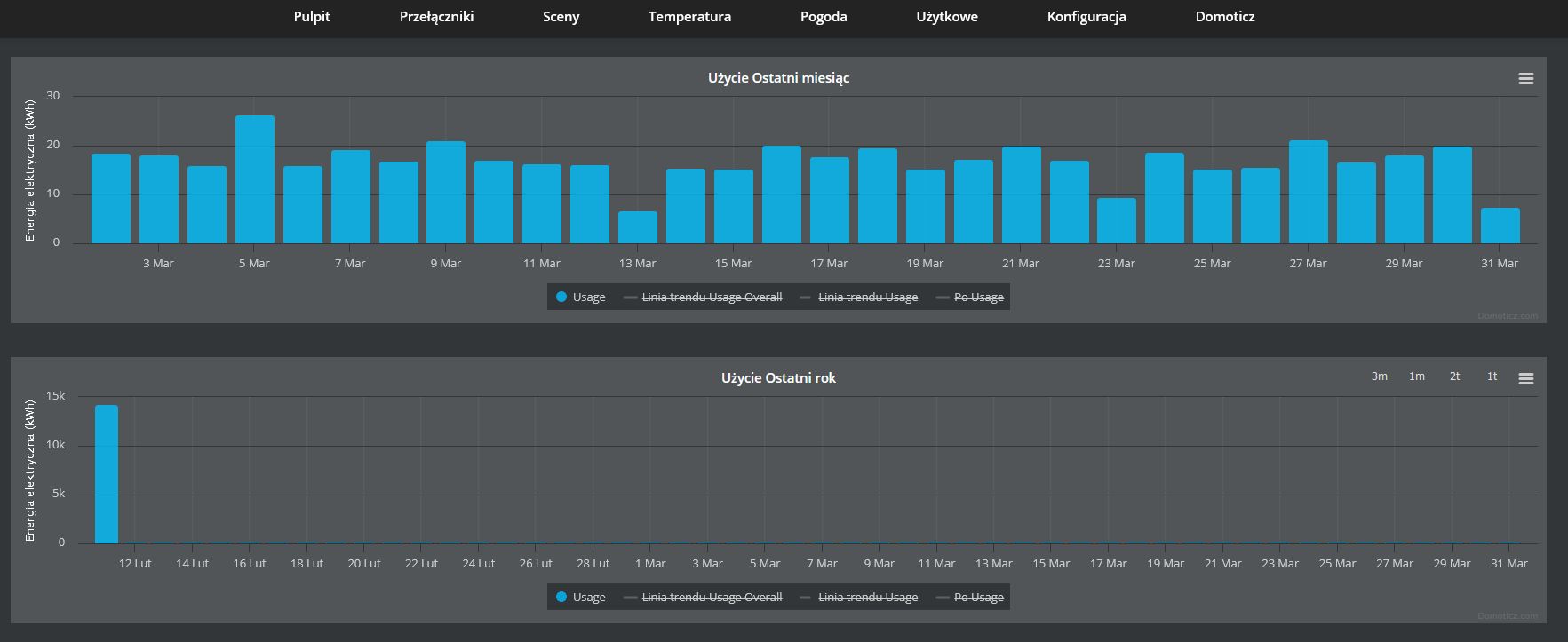

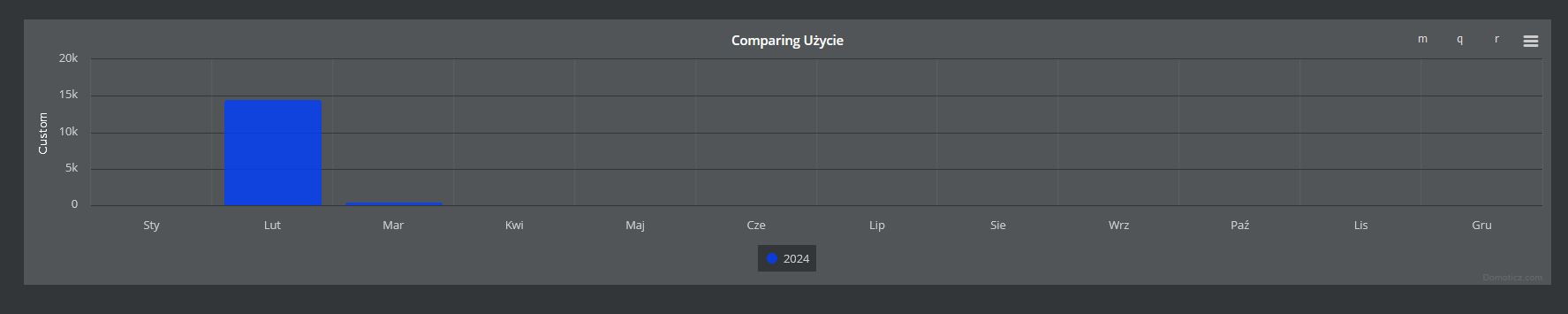

Domoticz All year round
