I've got the 2 graphs from the P1 meter, Electricity and Gas. The Electricity shows the daily total of the usage, however the Gas shows the total of the meter counter, not the daily usage. How do I fix this. I see this everywhere in the fora.
Jimster
Posts: 82
Joined: Tuesday 04 February 2020 11:42
Target OS: Raspberry Pi / ODroid
Domoticz version: 2020.2
Location: The Netherlands
Contact:

Re: Dashticz - Function - Graphs

Post by Jimster »

dorenberg wrote: Monday 04 May 2020 15:17 I've got the 2 graphs from the P1 meter, Electricity and Gas. The Electricity shows the daily total of the usage, however the Gas shows the total of the meter counter, not the daily usage. How do I fix this. I see this everywhere in the fora.
Which Dashticz version do you use? Did you upgrade to the latest master or beta?
dorenberg
Posts: 110
Joined: Monday 22 June 2015 20:18
Target OS: Raspberry Pi / ODroid
Domoticz version: 4.10982
Location: Veghel, The Netherlands
Contact:

Re: Dashticz - Function - Graphs

Post by dorenberg »

I am on 3.3.3.1 master
User avatar
HansieNL
Posts: 957
Joined: Monday 28 September 2015 15:13
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Dashticz - Function - Graphs

Post by HansieNL »

Did you try to use a sub device IDX_1 for example?
Blah blah blah
dorenberg
Posts: 110
Joined: Monday 22 June 2015 20:18
Target OS: Raspberry Pi / ODroid
Domoticz version: 4.10982
Location: Veghel, The Netherlands
Contact:

Re: Dashticz - Function - Graphs

Post by dorenberg »

I am now on beta 3.4.5. Seems to work. However, custom graphs are no longer working. Reinstalled everything and the same issue. Going back to Master branch fixes the graphs but has some other issues.....
User avatar
HansieNL
Posts: 957
Joined: Monday 28 September 2015 15:13
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Dashticz - Function - Graphs

Post by HansieNL »

There a lot of changes for the beta version vs the master version: https://dashticz.readthedocs.io/en/beta ... index.html
Dashicz beta gives you a lot more possibilities how to show graphs.
Blah blah blah
dorenberg
Posts: 110
Joined: Monday 22 June 2015 20:18
Target OS: Raspberry Pi / ODroid
Domoticz version: 4.10982
Location: Veghel, The Netherlands
Contact:

Re: Dashticz - Function - Graphs

Post by dorenberg »

yes I know. However. Tried the normal settings, like this example as in the manual. But I see a graph with a line and no bars.

blocks['graph_903'] = {
graph: 'bar',
devices: [903],
datasetColors: ['lightblue'],
legend: true,
custom : {
"last hours": {
range: 'day',
filter: '6 hours',
data: {
liter: 'd.v_903*100' }
},

"today": {
range: 'day',
filter: '12 hours',
data: {
liter: 'd.v_903*100' }
},

"last week": {
range: 'month',
filter: '7 days',
data: {
liter: 'd.v_903*1000' }
}


}
}
User avatar
HansieNL
Posts: 957
Joined: Monday 28 September 2015 15:13
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Dashticz - Function - Graphs

Post by HansieNL »

Can you post your own graph code?
Blah blah blah
dorenberg
Posts: 110
Joined: Monday 22 June 2015 20:18
Target OS: Raspberry Pi / ODroid
Domoticz version: 4.10982
Location: Veghel, The Netherlands
Contact:

Re: Dashticz - Function - Graphs

Post by dorenberg »

It is the standard graph.js code.

// Definition 'Gas' graph
blocks[p1_grafiek_gas] = {
title: 'Gas',
width: 6,
height: '300px',
custom : {
"dag": {
graph: 'bar',
range: 'day',
data: {
Gas: 'd.v'
}
},
"maand": {
graph: 'bar',
range: 'month',
data: {
Gas: 'd.v'
}
},
"jaar": {
graph: 'line',
range: 'year',
data: {
Gas: 'd.v'
},
},
},
legend: false,
datasetColors: ['white'],
displayFormats : {
minute: 'h:mm',
hour: 'h:mm',
day: 'DD MMM',
week: 'DD MMM',
month: 'MMM',
}
}

this is one I use. In 3.3.3.1 master it shows the bars as expected. In 3.4.5 is shows lines which do not make a lot of sense.
User avatar
HansieNL
Posts: 957
Joined: Monday 28 September 2015 15:13
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Dashticz - Function - Graphs

Post by HansieNL »

As you already know a lot of things are changed in the beta version. So can you change the following:
- Can you remove graph: 'bar', from the custom object and add it to the top or bottom
- Add the IDX of the device where needed
This is an example how a custom graph in beta Dashticz should be looking: https://github.com/Dashticz/dashticz/bl ... tom-graphs
Blah blah blah
dorenberg
Posts: 110
Joined: Monday 22 June 2015 20:18
Target OS: Raspberry Pi / ODroid
Domoticz version: 4.10982
Location: Veghel, The Netherlands
Contact:

Re: Dashticz - Function - Graphs

Post by dorenberg »

Yes i tried it with the standard settings as in the manual. It doesn't even say my power. Just the name of the idx in domoticz. P1 meter
Lokonli
Posts: 2261
Joined: Monday 29 August 2016 22:40
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Dashticz - Function - Graphs

Post by Lokonli »

I'm working on an update of the graph module. That probably requires a few days. After that we'll check the examples in the beta documentation again. My plan is to release a new master version directly after that.
dorenberg
Posts: 110
Joined: Monday 22 June 2015 20:18
Target OS: Raspberry Pi / ODroid
Domoticz version: 4.10982
Location: Veghel, The Netherlands
Contact:

Re: Dashticz - Function - Graphs

Post by dorenberg »

Yes it seems to work. Some [] brackets and the graph 'bar' needed to be included. The ['bar','bar','line',] did not work
damdub
Posts: 38
Joined: Tuesday 31 December 2019 16:29
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Dashticz - Function - Graphs

Post by damdub »

javed222pi wrote: Thursday 05 April 2018 19:45 Hi all,
I’m try to insert an CO2 (air quality) graph, in my dashticz dashboard, but I cant …
i can see the block data, but the graph not show nothing
How I must to do? I must to edit graphs.js ? but how??
Please help
Thanks
Hello
did you succeed in showing your custom graph with CO2 data ? I have exactly the same problem.
My guess is that I need to find the good "type" for data :

data: {
CO2: 'd.co2_294',
}

Anyone can help ?

Thank you
Lokonli
Posts: 2261
Joined: Monday 29 August 2016 22:40
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Dashticz - Function - Graphs

Post by Lokonli »

If you temporarily remove the data part from your graph block definition, and add 'legend: true' then the legend will show which fields are available in the graph data.

In most cases it's just 'v' for the day graphs, and 'v_avg','v_min' and 'v_max' for the week/month/year graphs.

For devices with multiple data fields it will be different.
Lokonli
Posts: 2261
Joined: Monday 29 August 2016 22:40
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Dashticz - Function - Graphs

Post by Lokonli »

If you temporarily remove the data part from your graph block definition, and add 'legend: true' then the legend will show which fields are available in the graph data.

In most cases it's just 'v' for the day graphs, and 'v_avg','v_min' and 'v_max' for the week/month/year graphs.

For devices with multiple data fields it will be different.
damdub
Posts: 38
Joined: Tuesday 31 December 2019 16:29
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Dashticz - Function - Graphs

Post by damdub »

Yes ! that was the perfect advice !
Thank you very much Lokonli.
damdub
Posts: 38
Joined: Tuesday 31 December 2019 16:29
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Dashticz - Function - Graphs

Post by damdub »

Hello all

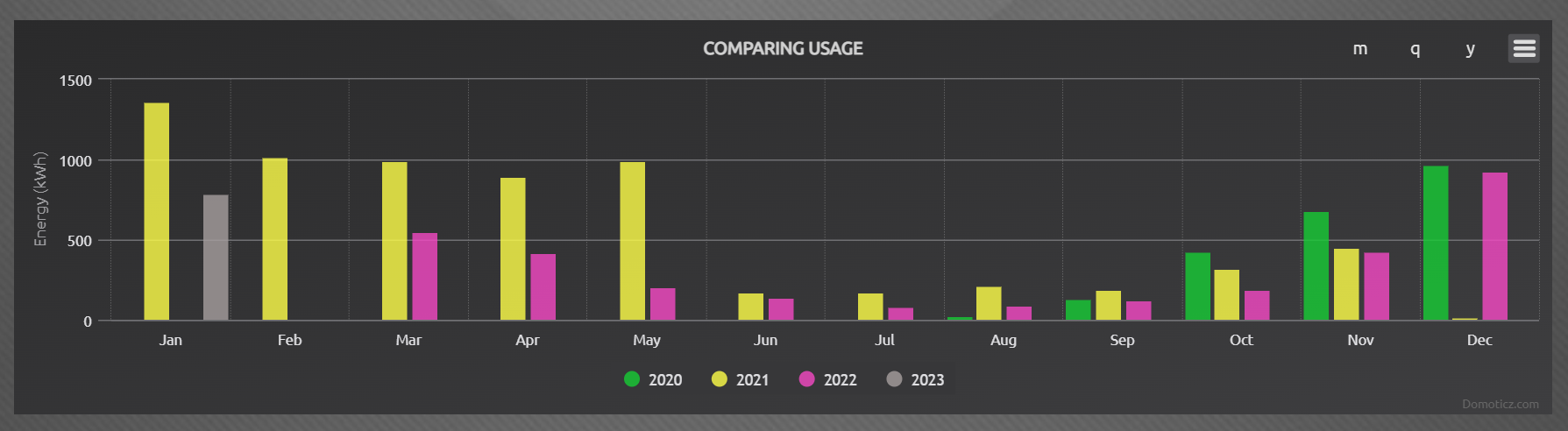

I'm trying to put in my Dashticz dashboard the energy "comparing usage" graph which is available in Domoticz:
2023-01-29 17_51_18 Domo.png
2023-01-29 17_51_18 Domo.png (167.91 KiB) Viewed 686 times
Do you think this is possible ?
Thank you very much for your help
damdub
Posts: 38
Joined: Tuesday 31 December 2019 16:29
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Dashticz - Function - Graphs

Post by damdub »

Hello
anybody ? is this "comparing usage" graph usable in Dashticz ?
Thank you very much
Lokonli
Posts: 2261
Joined: Monday 29 August 2016 22:40
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Dashticz - Function - Graphs

Post by Lokonli »

damdub wrote: Wednesday 08 February 2023 18:34 Hello
anybody ? is this "comparing usage" graph usable in Dashticz ?
Thank you very much
Currently that's not possible with a Dashticz graph.

As fallback: You can open the Domoticz graph in a Dashticz popup window, or in an iframe.
