AIRZONE and DOMOTICZ (poll)

[zorastro]

Thank you.

Off topic: congratulations for your amazing victory yesterday. Great match!

Enviado desde mi ONEPLUS A5000 mediante Tapatalk

[zorastro]

Hello everyone.

Thanks to the help of multinet I managed to make the system work manually. By making bridges I can start and stop the system both in cold and in heat. To start the system cold, the black, blue and green colors must be bridged at the connector in the main zone. In the rest of the zones the black and blue must be bridged. Hot mode is achieved by bridging black, brown and yellow in the main zone. In the other zones the hot mode is obtained by bridging brown and black.

We continue on the road, thank you!

[credenty]

Hello, He has been able to make the manual?

[multinet]

Not really but I can help you here

[bnt734]

Hello

After many search & try I succeed in linking my airzone system (2007 - not cloud - no webserver - with TACTO remote) to my AIR/AIR air conditionner with domoticz

I can now completly control my heater/cooler via domiticz (multiple scenario using temp sensor,presence sensor etc)

Let me know here if you are interesting in a complete step by step tuto

Multinet

Thanks for this topic, give me hope to avoid buying the wifi module AZXWSCLOUDWIFI at 230e without installation...

Here's my setup:
3 Tacto wireless: AZC3TACTORSB / http://www.airzonefrance.fr/produits/th ... -radio-c3/
1 BlueFace in the main room: AZC3BLUEFECOSB / http://www.airzonefrance.fr/produits/th ... aire-c3-2/

4 zones in total.

Can you confirm me we can keep both solution in parallel (Airzone and Domoticz) if we add temperatur sensor in each zone?

Thanks!

[multinet]

Hello

Do you have the reference of your main board ?

Multinet

[bnt734]

I forgot the main part

I think it's innobus-pro6
http://myzone.airzonefrance.fr/produits ... 6-201.html

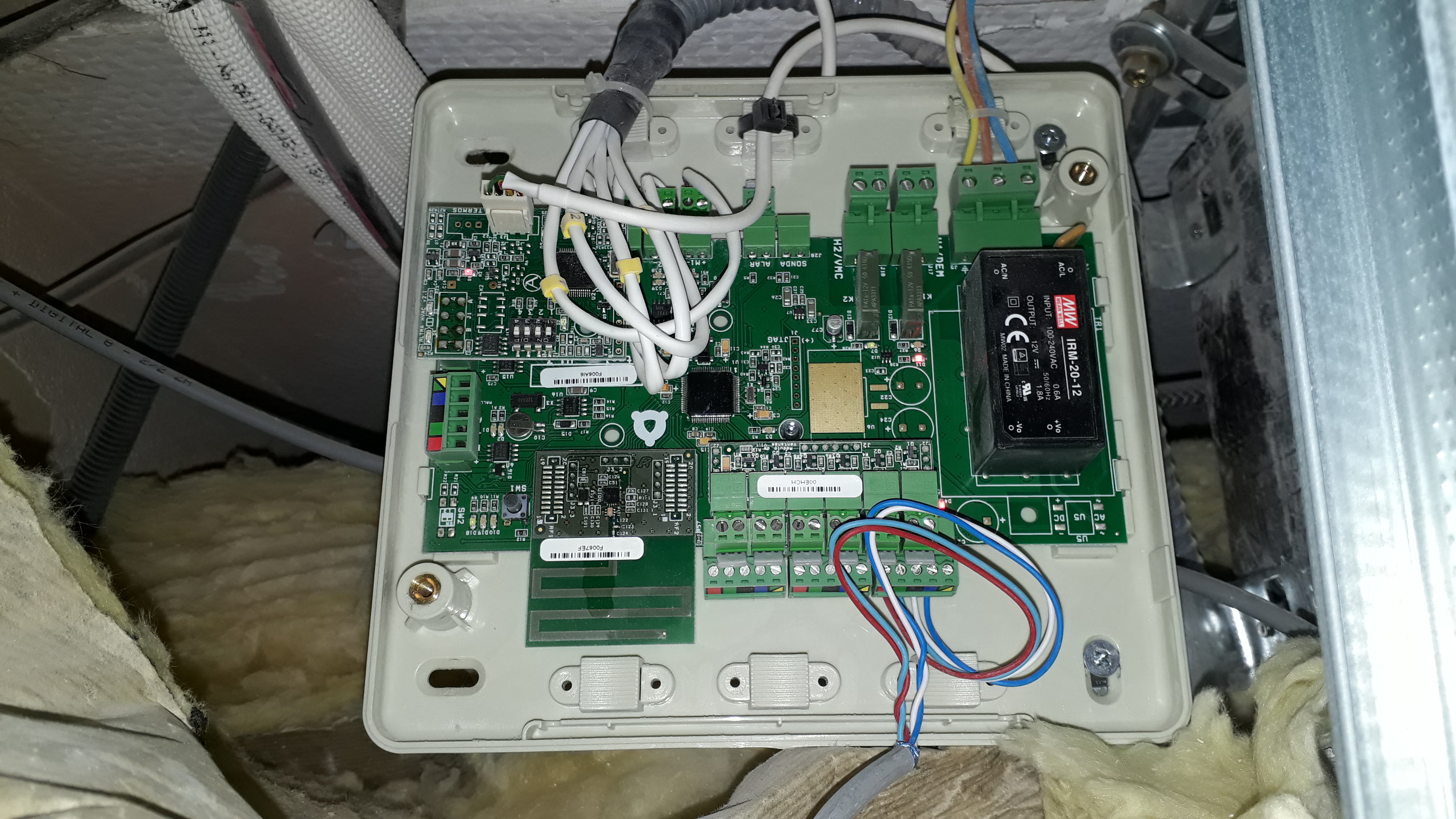

Here's a picture

[multinet]

hello

It seems to be compatible

Are you aware with wiring relay board to gpio ?

Multinet

[maikelspain]

Hello

I am interested in the manual to connect the airzone to domoticz
i have this multizone kit azez6daist07l6
I think it is the same as bnt734 only then with 6 outputs
below a photo of the description of the circuit board.
