Blockly irrigation control problem

[JohnyDeMarco]

Dear All,

I have an irrigation system with 4 circles (spray, rota1, rota2, rota3), controlled by 24VAC valves. I managed to control them with a relay board and an RPi (GPIOs). I added virtual switches to domoticz to open / close the valves (by running simple GPIO commands).


I can open one circle for X minutes without any problems but cannot put them together.

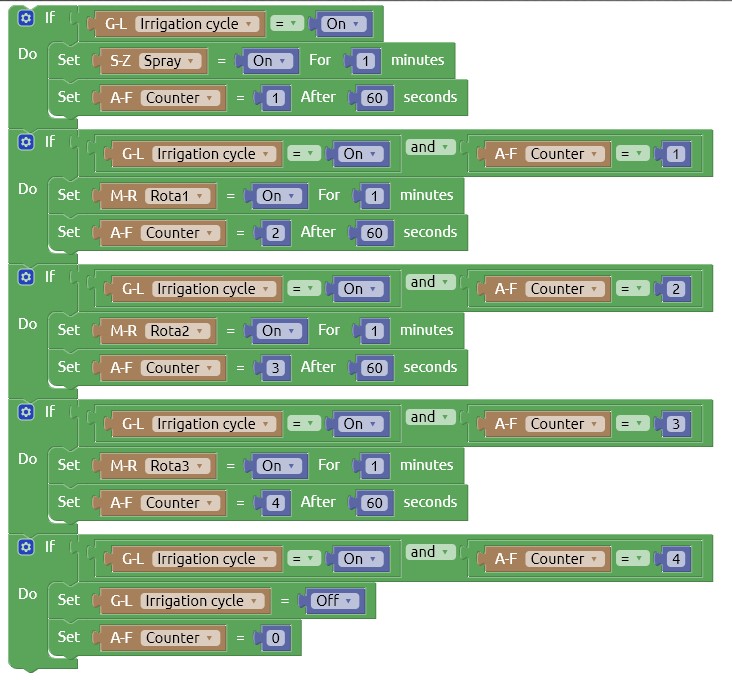

My problem is that I am trying to create an "irrigation cycle" program with Blockly, without any success. The idea was to have virtual switch (irrigation cycle), which starts the process by opening / closing the circles and stepping the counter.


What's wrong with this? Unfortunately I cannot figure it out, please help. Thanks in advance,

Johny

[kuifje]

Johny,
you use a "if" "else" the wrong way.
When you click your mouse on the blue dot an else appears, that one you have to put under the if. You have to do this 4 times.
Now the first one doesn't know what the second one is doing or supposed to do.
Kuifje

[JohnyDeMarco]

Hi kuifje,

thanks for your quick support! It is better now, however, just the first cycle executed (Spray started and worked for 1 minute and stopped), the counter did not change after 60 seconds, therefore the second cycle (Rota1) not started. The "Irrigation cycle" stuck as "ON", "Counter" remains "0".


I am wondering that maybe the value of the counter is wrong, as the "0/1/2/3/4" are the names, the levels are "0/10/20/30/40".


Thanks in advance,

Johny

[Gerwin]

behind counter you are using the wrong block.
if you are using the level% block than is it working.
level%10 and level%20 level%30 Level%40

Gerwin

[JohnyDeMarco]

Thank you All for your valuable support, I've tried all of them, my garden looks like a lake now Anyways, I fixed it. Or I can say: "there I fixed it"


Not the best solution, but it works. I'll try to use the more sophisticated versions as soon as I have time to play with them.

Thx, Johny
