Relay board and 2 way switching problems...

[Nickharding]

Hi guys.

At home I have a network of raspberry Pi 3’s running. Numerous as slaves and one as a master which my Siri connects to using homebridge and this works great.

On my slave in the loft I have a large relay board to which I have rewired all my lighting to be 2 way, going to the relay board.

The problem I’m having is I can turn the lights on and off using domotics, and same at the manual switch.

The issue is when I turn the manual switch on, domoticz obviously does not get updated and thinks the lights state is off.

This plays hell as to turn the light off via voice I have to tell Siri to turn it on? Hard to explain.

What is my way around this? I was thinking a light sensor in each room? But then it will be misunderstood when the sun is shining.

Also thought about maybe a voltage detector on each line so it knows when it’s live or not?

Let me know your ideas or if anyone else has come up with a solution.

Many thanks,

Nick.

[SweetPants]

In my personal opinion best way is to sense the output voltage via an optocoupler and read the state using an Arduino or ESP and feed domoticz with the results (without triggering On/Off actions). I use this method to sense a local switched relay (using standard wall switch) and update domoticz with this state. viewtopic.php?f=51&t=23796

[Nickharding]

In my personal opinion best way is to sense the output voltage via an optocoupler and read the state using an Arduino or ESP and feed domoticz with the results (without triggering On/Off actions). I use this method to sense a local switched relay (using standard wall switch) and update domoticz with this state. viewtopic.php?f=51&t=23796

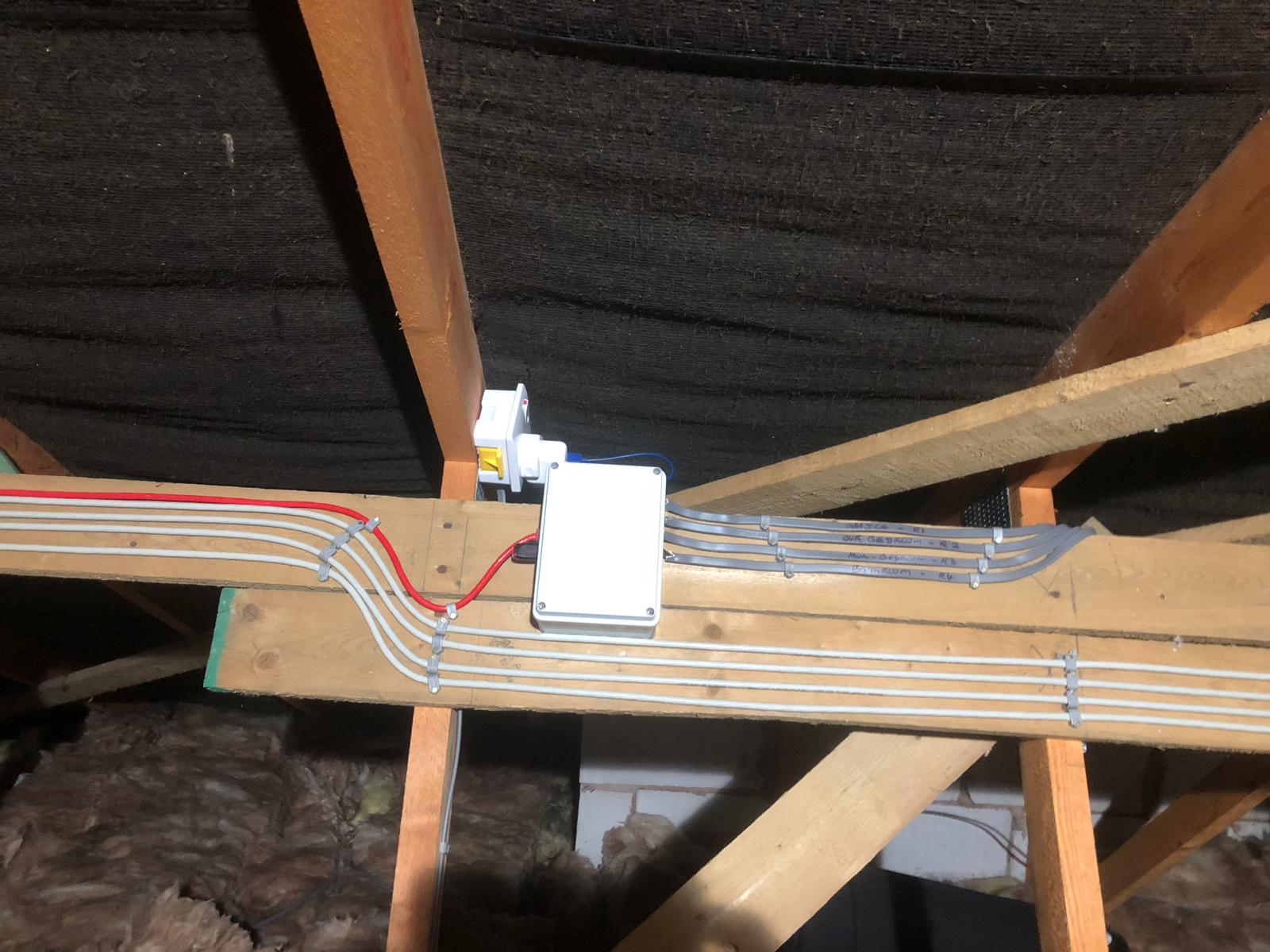

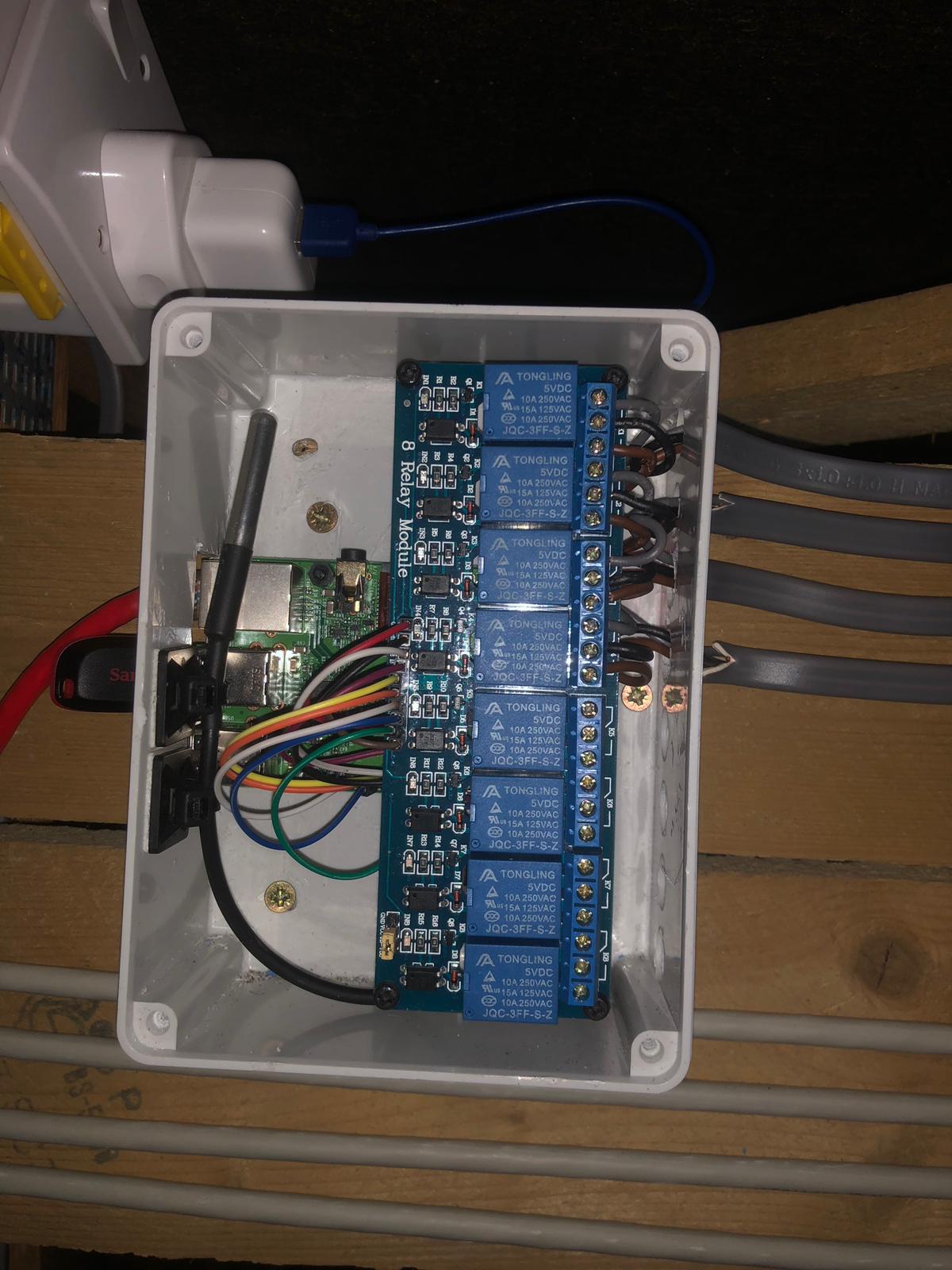

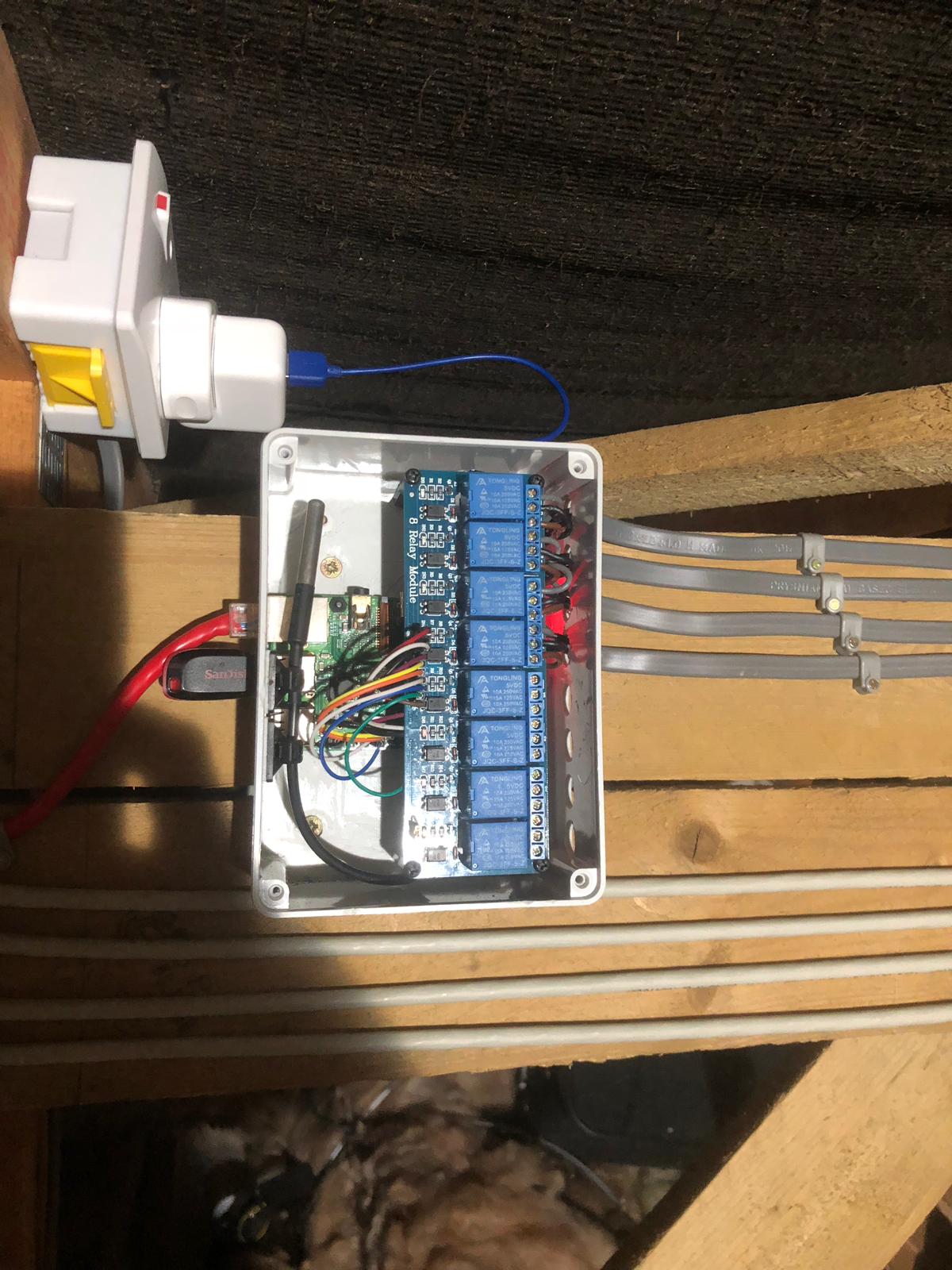

Thanks for your reply, would i need one of these for each light that its running? currently it is configured like this...

WhatsApp Image 2018-10-30 at 20.15.43.jpeg (197.92 KiB) Viewed 606 times

WhatsApp Image 2018-10-30 at 20.15.42.jpeg (236.53 KiB) Viewed 606 times

WhatsApp Image 2018-10-30 at 20.15.41.jpeg (218.41 KiB) Viewed 606 times

There will be another 4 lights being connected at the end of this week, just hard to find the time with my job haha.

Could you show me some pics of your setup? so i can get more of an idea?

Thanks for your help.

[SweetPants]

You need something like this (the circled part) to detect the mains.


This schematic is with an ESP8266
