Monitor Synology NAS with SNMP
Posted: Sunday 26 August 2018 14:38
this script is not necessarily successful, do not hesitate to propose improvements, optimizations
For this script to work you need to enable SNMP on your synology NAS and install SNMP on your Raspberry Pi
Enable SNMP on your synology NAS
Go toMain Menu>Control Panel >SNMP to enable SNMP service, which allows users to monitor
Synology DiskStation network flow with the network management software.
You can use V1/V2
And set a password (Community)
Install SNMP on Raspberry Pi
Log in to you Raspberry Pi and issue:
sudo apt-get install snmpd
sudo apt-get install snmp
Reboot your Pi:
sudo reboot
Check if SNMP is up and running, issue:
snmpget -v 2c -c PASSWORD -O qv NASIPADDRESS 1.3.6.1.4.1.6574.1.5.1.0
Replace PASSWORD with the Community name you entered while setting up your NAS
Replace NASIPADDRESS with the ip address of your NAS
You should get something like this:
"DS218+" which corresponds to your Synology Model
test
snmpget -v 2c -c PASSWORD -O qv NASIPADDRESS 1.3.6.1.2.1.25.2.3.1.5.31
snmpget -v 2c -c PASSWORD -O qv NASIPADDRESS 1.3.6.1.2.1.25.2.3.1.5.38
snmpget -v 2c -c PASSWORD -O qv NASIPADDRESS 1.3.6.1.2.1.25.2.3.1.5.41
then modify OID_HDUnit, OID_HDTotal, OID_HDUsed variables (.38 on DSM 5.1, .41 on DSM 6.0+ or .31 on my new DS218)
if you have à DS2XX model, uncomment -- local OID_HDtemp2='1.3.6.1.4.1.6574.2.1.1.6.1' to show the hdd2 temperature
Then create:
1 device Switch
x temperature device
3 percent devices
1 meter device
all you have to do is create a Synology.lua file that you will put in /home/pi/domoticz/scripts/dzVents/scripts/Synology.lua
you will customize the following code
Here are the logs of my NAS when the level domoticz.LOG_DEBUG is activated:

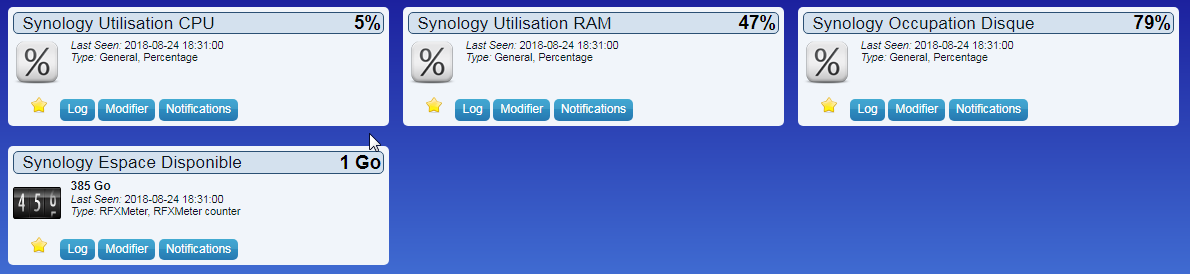

- 2018-08-24 18_31_58-Domoticz.png (24.57 KiB) Viewed 11457 times
Enable SNMP on your synology NAS
Go toMain Menu>Control Panel >SNMP to enable SNMP service, which allows users to monitor
Synology DiskStation network flow with the network management software.
You can use V1/V2
And set a password (Community)
Install SNMP on Raspberry Pi
Log in to you Raspberry Pi and issue:
sudo apt-get install snmpd
sudo apt-get install snmp
Reboot your Pi:
sudo reboot
Check if SNMP is up and running, issue:
snmpget -v 2c -c PASSWORD -O qv NASIPADDRESS 1.3.6.1.4.1.6574.1.5.1.0
Replace PASSWORD with the Community name you entered while setting up your NAS
Replace NASIPADDRESS with the ip address of your NAS
You should get something like this:
"DS218+" which corresponds to your Synology Model
test
snmpget -v 2c -c PASSWORD -O qv NASIPADDRESS 1.3.6.1.2.1.25.2.3.1.5.31
snmpget -v 2c -c PASSWORD -O qv NASIPADDRESS 1.3.6.1.2.1.25.2.3.1.5.38
snmpget -v 2c -c PASSWORD -O qv NASIPADDRESS 1.3.6.1.2.1.25.2.3.1.5.41
then modify OID_HDUnit, OID_HDTotal, OID_HDUsed variables (.38 on DSM 5.1, .41 on DSM 6.0+ or .31 on my new DS218)
if you have à DS2XX model, uncomment -- local OID_HDtemp2='1.3.6.1.4.1.6574.2.1.1.6.1' to show the hdd2 temperature
Then create:
1 device Switch
x temperature device
3 percent devices
1 meter device
all you have to do is create a Synology.lua file that you will put in /home/pi/domoticz/scripts/dzVents/scripts/Synology.lua
you will customize the following code
Code: Select all
--[[
name : synology2.lua
auteur : papoo
creation : 17/02/2019
mise à jour : 05/04/2019
https://pon.fr/dzvents-supervision-dun-nas-synology-avec-snmp/
https://github.com/papo-o/domoticz_scripts/blob/master/dzVents/scripts/synology2.lua
https://easydomoticz.com/forum/viewtopic.php?f=17&t=7022
https://www.domoticz.com/forum/viewtopic.php?f=59&t=24618
For this script to work you need to enable SNMP on your synology NAS and install SNMP on your Raspberry Pi
Enable SNMP on your synology NAS
Go toMain Menu>Control Panel >SNMP to enable SNMP service, which allows users to monitor
Synology DiskStation network flow with the network management software.
You can use V1/V2
And set a password (Community)
Install SNMP on Raspberry Pi
Log in to you Raspberry Pi and issue:
sudo apt-get install snmpd
sudo apt-get install snmp
Reboot your Pi:
sudo reboot
Check if SNMP is up and running, issue:
snmpget -v 2c -c PASSWORD -O qv NASIPADDRESS 1.3.6.1.4.1.6574.1.5.1.0
Replace PASSWORD with the Community name you entered while setting up your NAS
Replace NASIPADDRESS with the ip address of your NAS
You should get something like this:
"DS218+" which corresponds to your Synology Model
how to choose disk capacity to monitor?
snmpwalk -v 2c -c PASSWORD NASIPADDRESS 1.3.6.1.2.1.25.2.3.1.3
results of my DS218 :
HOST-RESOURCES-MIB::hrStorageDescr.1 = STRING: Physical memory
HOST-RESOURCES-MIB::hrStorageDescr.3 = STRING: Virtual memory
HOST-RESOURCES-MIB::hrStorageDescr.6 = STRING: Memory buffers
HOST-RESOURCES-MIB::hrStorageDescr.7 = STRING: Cached memory
HOST-RESOURCES-MIB::hrStorageDescr.8 = STRING: Shared memory
HOST-RESOURCES-MIB::hrStorageDescr.10 = STRING: Swap space
HOST-RESOURCES-MIB::hrStorageDescr.31 = STRING: /
HOST-RESOURCES-MIB::hrStorageDescr.36 = STRING: /tmp
HOST-RESOURCES-MIB::hrStorageDescr.37 = STRING: /run
HOST-RESOURCES-MIB::hrStorageDescr.38 = STRING: /dev/shm
HOST-RESOURCES-MIB::hrStorageDescr.39 = STRING: /sys/fs/cgroup
HOST-RESOURCES-MIB::hrStorageDescr.40 = STRING: /run/cgmanager/fs
HOST-RESOURCES-MIB::hrStorageDescr.51 = STRING: /volume1
HOST-RESOURCES-MIB::hrStorageDescr.54 = STRING: /volume1/@docker/btrfs
then modify OID_HDUnit, OID_HDTotal, OID_HDUsed variables with your last number choice (.38 on DSM 5.1, .41 on DSM 6.0+ or .51 on my new DS218)
if you have à DS2XX model, uncomment -- local OID_HDtemp2='1.3.6.1.4.1.6574.2.1.1.6.1' to show the hdd2 temperature
Then create:
1 device Switch
1 temperature device
3 percent devices
x meter device
--]]
--------------------------------------------
-------------Fonctions----------------------
--------------------------------------------
function format(str)
if (str) then
str = string.gsub (str, " Bytes", "")
str = string.gsub (str, " kB", "")
end
return str
end
-------------------------------------------
-------------Fin Fonctions-----------------
-------------------------------------------
local NasIp = "diskstation2" -- NAS IP Address
local CommunityPassword = "synology" -- SNMP Password
local NAS = "Synology" -- NAS Switch
local NAS_TEMP = "Synology Temp"
local NAS_CPU = "Synology Utilisation CPU" -- NAS CPU
local NAS_MEM = "Synology Utilisation RAM" -- NAS MEM
local NAS_HD_SPACE_PERC = "Synology Occupation Disque" -- NAS HD Space in %
local NAS_HD_SPACE = "Synology Espace Disponible" -- NAS HD Space in Go (custom sensor)
local NAS_HDD1_TEMP = "Synology HDD1 Temp" -- NAS HD1 Temp, nil si inutilisé
local NAS_HDD2_TEMP = nil -- NAS HD2 Temp, nil si inutilisé
local NAS_HDD3_TEMP = nil -- NAS HD3 Temp, nil si inutilisé
local NAS_HDD4_TEMP = nil -- NAS HD4 Temp, nil si inutilisé
local OID_NAS_TEMP = '1.3.6.1.4.1.6574.1.2.0'
local OID_HDUnit = '1.3.6.1.2.1.25.2.3.1.4.51' -- OID HD Unit Change OID to .38 on DSM 5.1 or .41 on DSM 6.0+ or .51 on my DS218
local OID_HDTotal = '1.3.6.1.2.1.25.2.3.1.5.51' -- OID Total space volume in Go Change OID to .38 on DSM 5.1 or .41 on DSM 6.0+ or .51 on my DS218
local OID_HDUsed = '1.3.6.1.2.1.25.2.3.1.6.51' -- OID Space used volume in Go Change OID to .38 on DSM 5.1 or .41 on DSM 6.0+ or .51 on my DS218
local OID_CpuUser = '1.3.6.1.4.1.2021.11.9.0' -- OID CPU user
local OID_CpuSystem = '1.3.6.1.4.1.2021.11.10.0' -- OID CPU System
local OID_MemAvailable = '1.3.6.1.4.1.2021.4.13.0' -- OID Free Memory Available
local OID_MemTotalSwap = '1.3.6.1.4.1.2021.4.3.0' -- OID MemTotalSwap
local OID_MemTotalReal = '1.3.6.1.4.1.2021.4.5.0' -- OID MemTotalReal
local OID_MemTotalFree = '1.3.6.1.4.1.2021.4.11.0' -- OID MemTotalFree
local OID_HDtemp1 = '1.3.6.1.4.1.6574.2.1.1.6.0' -- OID Temperature HDD1
local OID_HDtemp2 = '1.3.6.1.4.1.6574.2.1.1.6.1' -- OID Temperature HDD2
local OID_HDtemp3 = '1.3.6.1.4.1.6574.2.1.1.6.2' -- OID Temperature HDD3
local OID_HDtemp4 = '1.3.6.1.4.1.6574.2.1.1.6.3' -- OID Temperature HDD4
--local OID_Raid_Status = '1.3.6.1.4.1.6574.3.1.1.3.0' -- OID Raid Status
--local OID_Physical_Memory_Units = '1.3.6.1.2.1.25.2.3.1.4.1'
--local OID_Physical_Memory_Size = '1.3.6.1.2.1.25.2.3.1.5.1'
--local OID_Physical_Memory_Used = '1.3.6.1.2.1.25.2.3.1.6.1'
--local OID_system_memory_total = '1.3.6.1.4.1.2021.4.5.0'
--local OID_system_memory_free = '1.3.6.1.4.1.2021.4.6.0'
--local OID_system_vsmemory_shared = '1.3.6.1.4.1.2021.4.13.0'
--local OID_system_vsmemory_buffer = '1.3.6.1.4.1.2021.4.14.0'
return {
active = true,
on = {
timer = {'every minute'}
},
-- on = { devices = { "your trigger device" }},
logging = { level = domoticz.LOG_DEBUG, -- Seulement un niveau peut être actif; commenter les autres
-- level = domoticz.LOG_INFO, -- Only one level can be active; comment others
-- level = domoticz.LOG_ERROR,
-- level = domoticz.LOG_MODULE_EXEC_INFO,
marker = "Synology Monitor v1.35 " },
execute = function(dz)
local i = 0
local results = {}
local command = 'snmpget -v 2c -c '..CommunityPassword..' -O qv '..NasIp..' '..OID_NAS_TEMP..' '..OID_HDUnit..' '..OID_HDTotal..' '..OID_HDUsed..' '..OID_CpuUser..' '..OID_CpuSystem..' '..OID_MemAvailable ..' '.. OID_MemTotalSwap ..' '..OID_MemTotalReal..' '..OID_MemTotalFree..' '..OID_HDtemp1..' '..OID_HDtemp2..' '..OID_HDtemp3..' '..OID_HDtemp4--..' '..OID_Physical_Memory_Units ..' '..OID_Physical_Memory_Used..' '..OID_Physical_Memory_Size ..' '..OID_system_memory_total ..' '..OID_system_memory_free ..' '.. OID_system_vsmemory_shared ..' '.. OID_system_vsmemory_buffer
local handle = assert(io.popen(command))
for line in handle:lines() do
results[i] = format(line)
i = i + 1
end
handle:close()
if results[0] then
dz.log("NASTemp : "..results[0],dz.LOG_DEBUG)
if NAS_TEMP then dz.devices(NAS_TEMP).update(0,results[0]) end
end
if results[1] then dz.log("HDUnit : "..results[1],dz.LOG_DEBUG) end
if results[2] then dz.log("HDTotal : "..results[2],dz.LOG_DEBUG) end
if results[3] then dz.log("HDUsed : "..results[3],dz.LOG_DEBUG) end
if results[4] then dz.log("CpuUser : "..results[4],dz.LOG_DEBUG) end
if results[5] then dz.log("CpuSystem : "..results[5],dz.LOG_DEBUG) end
if results[1] and results[2] then
HDTotalGo = dz.utils.round((results[2] * results[1] / 1024 / 1024 / 1024/1024),2)
dz.log("HDTotalGo : "..HDTotalGo,dz.LOG_DEBUG)
end
if results[1] and results[3] then
HDUsedGo = dz.utils.round(((results[3]) * results[1] / 1024 / 1024 / 1024/1024), 2)
end
if results[1] and results[2] and results[3] then
HDFreeGo = dz.utils.round(((results[2] - results[3]) * results[1] / 1024 / 1024 / 1024/1024),2)
end
if HDFreeGo then
dz.log("HDFreeGo : "..HDFreeGo,dz.LOG_DEBUG)
dz.devices(NAS_HD_SPACE).update(0,HDFreeGo)
end
if results[2] and results[3] then
HDFreePerc = dz.utils.round(((results[3] * 100) / results[2]), 0)
end
if HDFreePerc then
dz.log("HDFreePercent : "..HDFreePerc,dz.LOG_DEBUG)
dz.devices(NAS_HD_SPACE_PERC).update(0,HDFreePerc)
end
if results[4] and results[5] then
CpuUsed = (results[4] + results[5])
end
if CpuUsed then
dz.log("CpuUsed : "..CpuUsed,dz.LOG_DEBUG)
dz.devices(NAS_CPU).update(0,CpuUsed)
end
if results[7] then
dz.log("memTotalSwap: "..tostring(results[7]),dz.LOG_DEBUG)
end
if results[8] then
dz.log("memTotalReal: "..tostring(results[8]),dz.LOG_DEBUG)
end
if results[9] then
dz.log("memTotalFree: "..tostring(results[9]),dz.LOG_DEBUG)
end
if results[7] and results[8] and results[9] then
MemUsedPerc = dz.utils.round(100-results[9]*100/(results[7]+results[8]), 0)
end
if MemUsedPerc then
dz.log("MemUsedPercent : "..MemUsedPerc,dz.LOG_DEBUG)
dz.devices(NAS_MEM).update(0,MemUsedPerc)
end
if results[10] then
dz.log("HDTemp1 : "..tostring(results[10]),dz.LOG_DEBUG)
if NAS_HDD1_TEMP ~= nil then dz.devices(NAS_HDD1_TEMP).update(0,results[10]) end
end
if results[11] then
dz.log("HDTemp2 : "..tostring(results[11]),dz.LOG_DEBUG)
if NAS_HDD2_TEMP ~= nil then dz.devices(NAS_HDD2_TEMP).update(0,results[11]) end
end
if results[12] then
dz.log("HDTemp3 : "..tostring(results[12]),dz.LOG_DEBUG)
if NAS_HDD3_TEMP ~= nil then dz.devices(NAS_HDD3_TEMP).update(0,results[12]) end
end
if results[13] then
dz.log("HDTemp4 : "..tostring(results[13]),dz.LOG_DEBUG)
if NAS_HDD4_TEMP ~= nil then dz.devices(NAS_HDD4_TEMP).update(0,results[13]) end
end
if results[0] and results[5] and results[6] then
dz.log("Requete SNMP correcte ",dz.LOG_DEBUG)
dz.devices(NAS).switchOn().checkFirst()
else
dz.log("Requete SNMP incorrecte ",dz.LOG_DEBUG)
dz.devices(NAS).switchOff().checkFirst()
end
--RAID Status :
--OK(1), Repairing(2), Migrating(3), Expanding(4), Deleting(5), Creating(6), RaidSyncing(7), RaidParityChecking(8), RaidAssembling(9), Canceling(10), Degraded(11), Creashed(12)
end
}
- 2018-08-24 19_06_24-Domoticz.png (17.33 KiB) Viewed 11457 times
