All controllers are integrated under eHouse.PRO server (linux based on RaspberryPI, BananaPi, PC, etc) and contains HTML Request, Modbus TCP/IP Interface, TCP/IP Client/Server, UDP broadsast Status.
We looking for best possibility of integration to submit large device statuses (about 4000 intelligent points ) effectively to Domoticz
Could you advice how to start programming, integration and which metod is best choice?
We currently have following communication variants and instalation types of controllers:
- http://smart-home.ehouse.pro/category/ehouse-lan/ LAN (Ethernet) - large controllers (40-120 smart points) for Room Switchboard instalation
- http://smart-home.ehouse.pro/category/ehouse-rs-485/ RS-485 - large controllers (40-120 smart points) for Room Switchboard installation
- http://smart-home.ehouse.pro/category/ehouse-pro/ BMS (Ethernet/WiFi - Very Large controllers (120-512 I/O) for central switchboard installation (based on Raspberrry Pi and I/O modules)
- http://smart-home.ehouse.pro/category/ehouse-wifi/ WiFi (2.4GHz b/g/n) medium controllers (socket can installation or OEM)
- http://smart-home.ehouse.pro/category/ehouse4can/ CAN (Controller Area Network) controllers - socket cans installation
- http://smart-home.ehouse.pro/category/ehouse-rf/ RF (863, 902/915MHz) controllers - socket cans installation
All Controllers have programmable resources:
- binary inputs (on/off) - for switches, sensors
- binary outputs (on/off) - for external or build in relays
- analog inputs (ADC) - measurement eg. temperature, voltage, lightlevel, humidity, gas, etc
- dimmer outputs 12VDC PWM - LED light dimming interface
- infrared input (IR RX) - control via IR Controller of the system
- Infrared output (IR TX) - control external Audio/Video systems from eHouse controllers
Large controllers (LAN, RS-485, BMS) are autonomic and optimized for:
- complete room management (home, hotel, condo, aparthotel, yacht, camper, office, etc)
- boiler room management, central heating and ventilation
- intelligent security system with SMS notification
- roller/drives controller
- pool controller
And contains:
- light scenes / programs
- rollers/drives programs
- security zones
- scheduler-calendar
- IR codes database for Transmit/Receive
Our DIY eHouse LAN Controller:

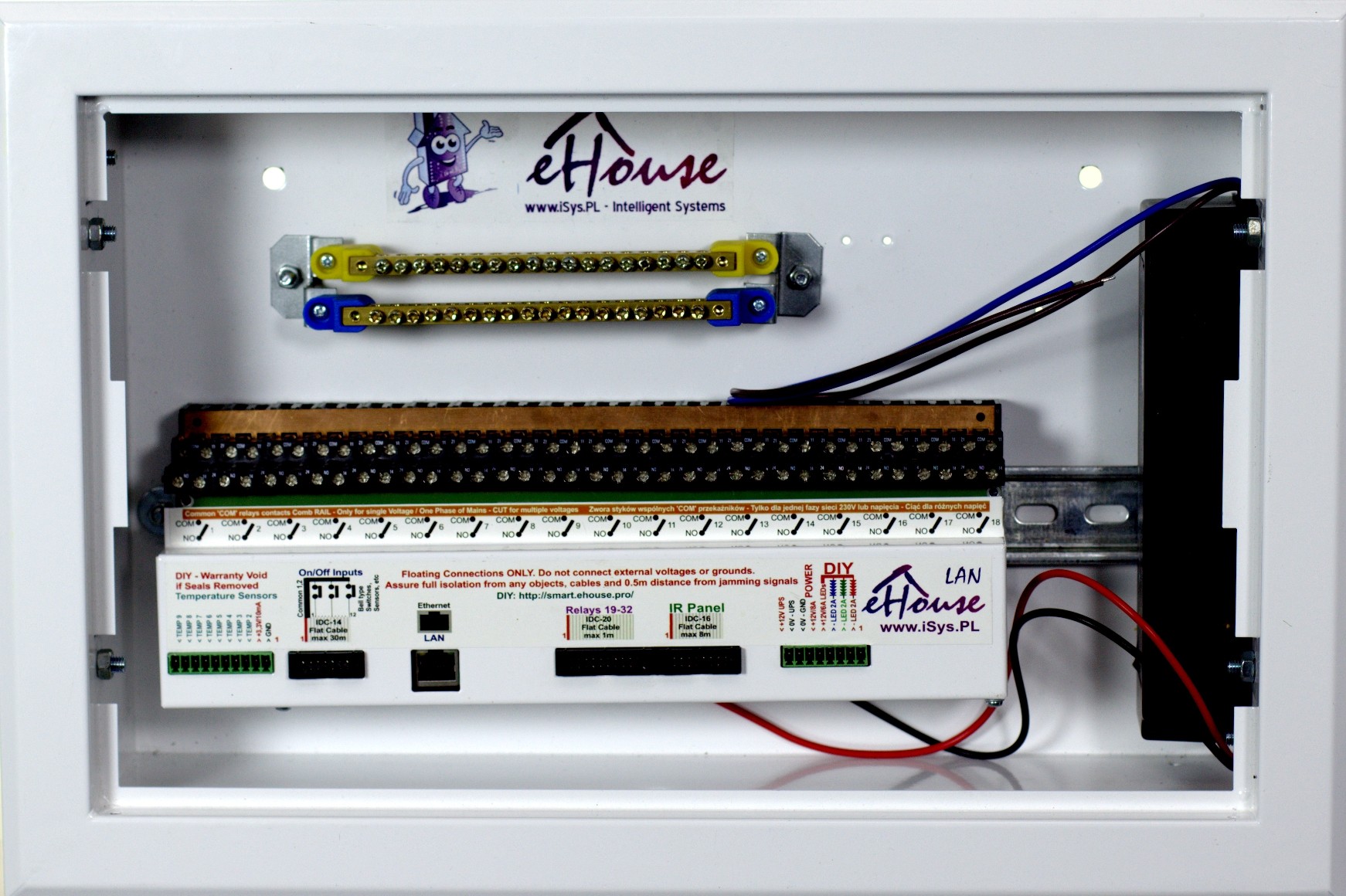

Ready To Mount LAN Switchboard - for room/apartment:
eHouse WiFi controllers:
eHouse BMS/Hybrid system - for central installation:
