Creating a (z-wave) hotel switch with double switches and z-wave association to second lighting source (4 switch buttons

[constapel]

Needed:
FIBARO Dimmer 2 FGD-212


2 X Busch-Jaeger Pulsdrukker 2 Maakcontact Inbouw- 2020 US-205 - 1413-0-0491 (Basiselement)

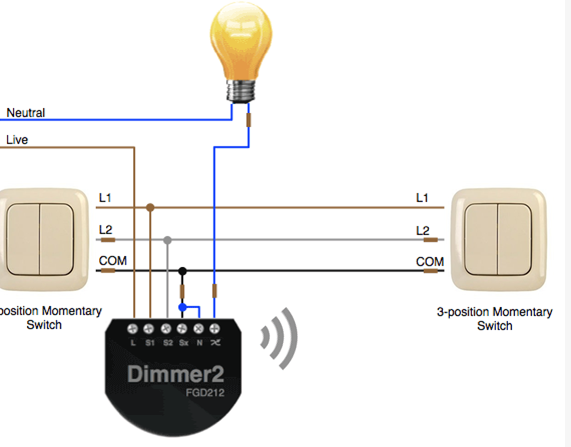

Wiring schema:


Second switch can be used to assign other zwave device in group 4 basic command or group 5 (multilevel command / dimming) for the second switch contact of the dimmer. Go to hardware... groepen en netwerk... etc
Or create domoticz scene with S2 Activation device and eg. Philips Hue (lamp piano)

[constapel]


Test setup ( working !)


See also : https://www.domoticz.com/forum/viewtopic.php?t=15156 for more indept information on domoticz device configuration.
