Home fan speed setting using ACM-LV10

Post by joostvanderlinde »

I have a JE Storkair / Zehnder CFMeR home fan installed in my house.
This fan is also know as the CMFe / WVXe (with green lid) or ComfoFanS / WVS (with red lid)
This fan is operated wireless using its own protocol at 868Mhz.

This type of fan has 0-10V input terminal that you can use to control the speed of the fan. The fan also has a spare +12V output terminal.
I decided to use the CoCo (KaKu) ACM-LV10 dimmer (that has a 0-10V output and a 12V input) to manage the speed of my fan.

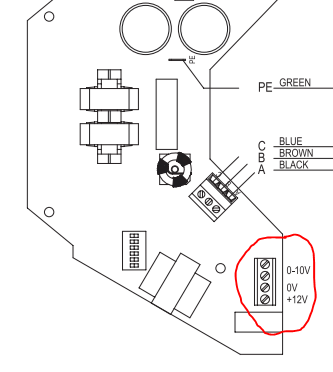

CMFe pcb
CMFe pcb
CMFe board.png (29.69 KiB) Viewed 18056 times
Following the manual of the CFMeR I had to remove the original RF unit from the fan (otherwise electronics might get damaged), which went off easy (and can be placed back to revert back to the original setup)

Things could not have been easier.
I have connected the ACM-LV10 to the 12V and the 0-10V terminals (0V / Ground is a joint connection)

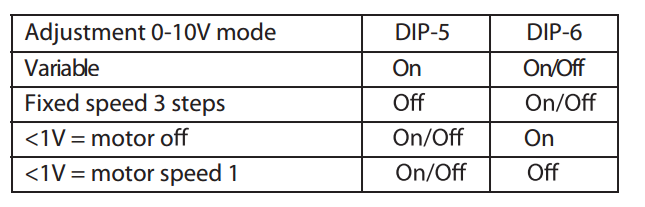

I have also set the DIP switches to make sure the fan speeds is fully variable and that the minimum speeds is "low" (instead of "off")
CMFe DIP
CMFe DIP
CMFe DIP.png (34.19 KiB) Viewed 18056 times
I can now control my fan to any speed using the slider (or a percentage in the vent handler) in Domoticz.
Last edited by joostvanderlinde on Tuesday 14 July 2015 17:05, edited 2 times in total.
Domoticz on BPI-M2-Pro (compiled on Ubuntu 22.04) and RPI (binary on Raspian 10)
RFXCom, Sonoff Zigbee stick, eBusd Adapter 5, P1, S0, Husdata H60 integration
Zigbee2MQTT AD, MQTT local, AirconWithMe, Ebusd, VolvoRecharge, PSA Car Controller
User avatar
RvdM
Posts: 39
Joined: Friday 10 July 2015 21:06
Target OS: Linux
Domoticz version: 2020.2 1
Location: Deventer, NL
Contact:

Re: Home fan speed setting using ACM-LV10

Post by RvdM »

Nice. Do you also use it together with sensors?
Running virtualized domoticz server on a proxmox cluster with a slave for optimal RFX communication. Using Aeotec Z-Stick Gen5, rfxtrx433e, Homebridge and a Philips HUE bridge for all sort of home automation.
ThinkPad
Posts: 890
Joined: Tuesday 30 September 2014 8:49
Target OS: Linux
Domoticz version: beta
Location: The Netherlands
Contact:

Re: Home fan speed setting using ACM-LV10

Post by ThinkPad »

Very cool! Always knew this would be possible when i saw KaKu released a 0-10V, but until now didn't see anyone actually use it.

Very cheap RF solution for controlling the speed between xx-100%
I am not active on this forum anymore.
RayAmsterdam
Posts: 115
Joined: Sunday 11 January 2015 16:40
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Home fan speed setting using ACM-LV10

Post by RayAmsterdam »

Great! Nice to use with the humidity control script.
RayAmsterdam
Posts: 115
Joined: Sunday 11 January 2015 16:40
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Home fan speed setting using ACM-LV10

Post by RayAmsterdam »

Thanks for the tip! Works perfect with my Buva Boxstream.
Justintime
Posts: 228
Joined: Thursday 21 May 2015 9:08
Target OS: Raspberry Pi / ODroid
Domoticz version: Beta
Contact:

Re: Home fan speed setting using ACM-LV10

Post by Justintime »

You can still use the RF remotes??

And how does the speeds report on the main display?
RayAmsterdam
Posts: 115
Joined: Sunday 11 January 2015 16:40
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Home fan speed setting using ACM-LV10

Post by RayAmsterdam »

The ACM-LV10 replaces the main unit. The remotes are discarded as wel.
Justintime
Posts: 228
Joined: Thursday 21 May 2015 9:08
Target OS: Raspberry Pi / ODroid
Domoticz version: Beta
Contact:

Re: Home fan speed setting using ACM-LV10

Post by Justintime »

RayAmsterdam wrote:The ACM-LV10 replaces the main unit. The remotes are discarded as wel.

Ok thanks, this solution would be great. But i still want to use the remotes and headunit.

Too bad :(
Last edited by Justintime on Sunday 26 July 2015 16:23, edited 1 time in total.
RayAmsterdam
Posts: 115
Joined: Sunday 11 January 2015 16:40
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Home fan speed setting using ACM-LV10

Post by RayAmsterdam »

Justintime wrote:
RayAmsterdam wrote:The ACM-LV10 replaces the main unit. The remotes are discarded as wel.

Ok thanks, this solution would be great. But i still want to the remotes and headunit.

Too bad :(
I guess you could connect the ACM-LV10 parallel to the headunit, so the headunit and remotes keep working. Only downside is that the highest value has priority (might not be a problem) and there is no feedback to the headunit nor to Domoticz.
joostvanderlinde
Posts: 44
Joined: Tuesday 23 June 2015 23:06
Target OS: Linux
Domoticz version: 2023.2
Location: NL + SE
Contact:

Re: Home fan speed setting using ACM-LV10

Post by joostvanderlinde »

If you use the 0-10V terminals, you MUST DISCONNECT the original RF unit.
There is an explicit warning about that in the manual, so I did not try to use them in paralel.

So the original remote is useless too.

I currently use a humidity sensor (http://www.ebay.nl/itm/251622009510) to switch the fan automatically (blocky)
And I use a KaKu double wall switch to manually control the fan speed (4 levels: off, low, mid, high).
Via DIP switches you can set that in the off situation, the fan still runs at a very low speed. I did that too.
Works flawlessly!
Domoticz on BPI-M2-Pro (compiled on Ubuntu 22.04) and RPI (binary on Raspian 10)
RFXCom, Sonoff Zigbee stick, eBusd Adapter 5, P1, S0, Husdata H60 integration
Zigbee2MQTT AD, MQTT local, AirconWithMe, Ebusd, VolvoRecharge, PSA Car Controller
User avatar
TazDevl
Posts: 9
Joined: Friday 04 September 2015 10:29
Target OS: Raspberry Pi / ODroid
Domoticz version: NewBeta
Contact:

Re: Home fan speed setting using ACM-LV10

Post by TazDevl »

Joost, have been looking into the same (sorta) issue. Want to yank the old WTW from the wall and replace it with 2 fans. Next is regulate both based on inside/outside temp & season :)

Dump the heat in summer when the house temp is higher than outside. Winter vise versa
DomoUHT
Posts: 15
Joined: Friday 13 March 2015 22:08
Target OS: OS X
Domoticz version: 2.2293
Location: Alkmaar, The Netherlands
Contact:

Re: Home fan speed setting using ACM-LV10

Post by DomoUHT »

Hi Joost, thanks a lot for sharing this topic.

This was exactly what I was looking for after they replaced the fan in my house with a Zehnder ComfoFanS.
I could not found any information about the operating frequency of the RFZ remote, but luckily you did.

My house fan is now set to 80% by a wake-up scene (to ventilate my bathroom) and switched to about 10% when I'm leaving te house.

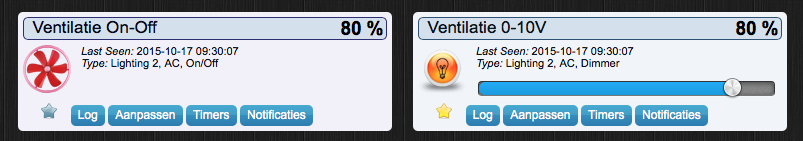

I also managed to have a dummy switch that switches the fan off or back on to the previous setpoint (this dummy switch can also be set by a scene).

This done by setting these HTTP commands for the On/Off actions of this dummy switch :
ON action : http;//127,0,0,1:<port>/json.htm?type=command&param=switchlight&idx=<IDX of KAKU-ACM-LV10-Dimmer>&switchcmd=On
OFF Action : http;//127,0,0,1:<port>/json.htm?type=command&param=switchlight&idx=<IDX of KAKU-ACM-LV10-Dimmer>&switchcmd=Off

So switching on/off this dummy switch, wil switch on(last %)/off the KAKU dimmer.
Then you can also set the Dummy switch to be a slave of the KAKU dimmer. When switching on the KAKU Dimmer the ON state is also set for the Dummy Switch.


For the dummy switch you can set the icon to the Fan/Airflow Producer icon that is supplied with DomotcZ. As far as I know, you can;t set another icon for the KAKU Dimmer.
Attachments
Schermafbeelding 2015-10-17 om 22.21.29.png
Schermafbeelding 2015-10-17 om 22.21.29.png (54.1 KiB) Viewed 17218 times
u01pei

Re: Home fan speed setting using ACM-LV10

Post by u01pei »

For another type of fan:
I have a Itho Daalderop Fan, which is normally controlled by a 4 position switch. This switch selects which of the input contacts receives 220 V.
For control with domoticz I wanted to use a normal on/off switch, but had my worries about adding a second 220V at the same time (one from the normal switch and one from a COCO switch).
So I asked Itho Daalderop. Their reply was that the fan could not be damaged by applying power to several inputs at the same time. Since than I have the COCO switch installed.
COCO off: Power is cut from the fan speed 3 contact, fan goes to fan speed 1 (power from the normal switch)
COCO on: power is applied to the fan speed 3 contact, fan goes to fan speed 3, power also remains on fan speed 1 contact.
I used the ACM-1000 for this. Small amount of DIY required.
TjardE
Posts: 7
Joined: Thursday 22 January 2015 21:23
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Home fan speed setting using ACM-LV10

Post by TjardE »

I will like to add that I have a switch in the kitchen for setting the speed. The ComfoFanS does take the highest speed requested as the one to work on. This means that I can "override" the 0-10V with the 220V switch. Very convenient to be able to use both.
Quentin
Posts: 2
Joined: Sunday 14 February 2016 21:55
Target OS: NAS (Synology & others)
Domoticz version:
Contact:

Re: Home fan speed setting using ACM-LV10

Post by Quentin »

I have the Buva version of the JE Storkair / Zehnder CFMeR with the same +12V, 0V and 0-10V connection. I would like to connect the Z-Wave Fibaro RGBW module to it, but I can't get it working. I also have the 0-10V Regelmodule which I bought from Robbshop.nl. Does anyone know how to wire this to the ventilation system?
Quentin
Posts: 2
Joined: Sunday 14 February 2016 21:55
Target OS: NAS (Synology & others)
Domoticz version:
Contact:

Re: Home fan speed setting using ACM-LV10

Post by Quentin »

I've got it working with the Zwave module (on my BUVA Mechanical Ventilation). This post helped me a lot, but also with some help of Robbshop.

Disclaimer: I'm not in any way related to Robbshop. The reason for posting this is that I found ridiculous prices on Marktplaats.

What do you need:
- Fibaro RGBW module

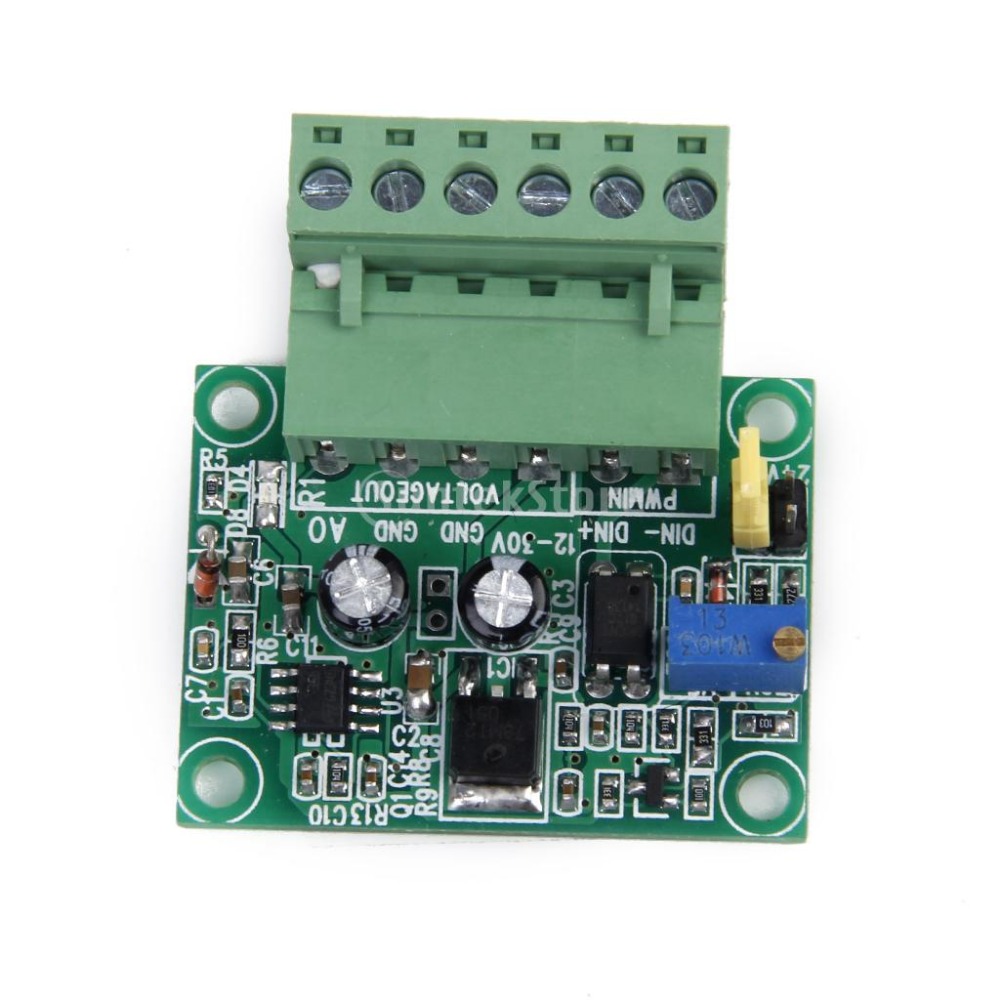

- 0-10 volt speed regulator (I've only found one at Robbshop)
- extra 12 volt power supply
- Humidity sensor (I use the EVR ST814)

Don't use the 12Volt power supply from the MV, use the seperate power supply. Connect the yellow wire from the speed regulator to the 12Volt power supply and the black to the RED connection of the Fibaro RGBW controller. The other 2 wires need to be connected to the MV. Black to the ground, the red to the 0-12 volt. Be carefull, if you push the wires all the way to the end you run the risk that it doesn't make a connection and it will not work.

I use the RGBW module together with the RF remote controls. Works perfect, but if the normal program is running on 3, you cannot lower the speed with the RGBW. The same as the RGBW module, if this is working full speed, you cannot adjust the speed with the RF modules. I have the normal program running and if the humidity sensor detects moisture, it switches to full speed.

Below some pictures. I hope this helps others.




And below the external power supply and print connection (use the 2 most right connections "ground" and "0-10 volt"):
Skorpion
Posts: 27
Joined: Thursday 15 January 2015 9:51
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Home fan speed setting using ACM-LV10

Post by Skorpion »

@Quentin,

Thanks for the extensive how-to. The Zehnder Comfofan S looks exactly the same.

I recently got an e-mail from Qubino that they are releasing a 0-10v dimmer. In this case you won't need the 0-10v speed regulator and the Fibaro RGBW module. :)

In my case I own a Zehnder Comfofan S CO2, and I wonder if the CO2 detection mode still operates after this modification.
marcfon
Posts: 3
Joined: Thursday 22 September 2016 7:46
Target OS: OS X
Domoticz version:
Contact:

Re: Home fan speed setting using ACM-LV10

Post by marcfon »

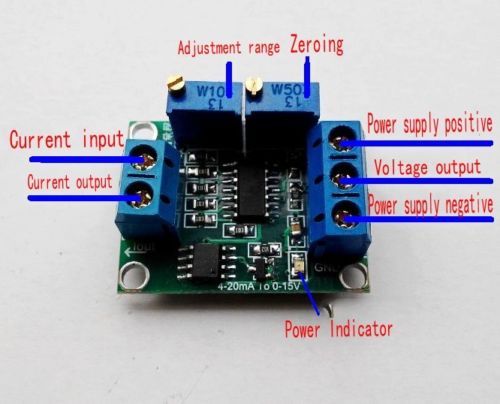

I'm trying to control a buva ventilation systems similar to what @Quentin is show. As the 0-10v regulator unfortunately isn't available anymore on robbshop website I had to find a different solution. For what I understand the RGBW output channels on the Fibaro module are current regulated (4-20ma) so I got this current to 0-10 voltage converter from aliexpress (http://s.aliexpress.com/YbuaMjmu).
I've attached the current input on the converter to the red channel on the Fibaro module. I didn't connect the current output to anything. And of course both the Fibaro module and the converter are connected to a 12v 1a power supply. The Fibaro module is brand new and the settings are factory default.

Now to test the setup I'm measuring the voltage output on the converter with multimeter (+ connected to voltage output and - to ground). I would expect that when I change the "red" value on the Fibaro module the voltage output would change. But that is not the case. The voltage stays at a fixed value.

So right now I'm stuck. Was my assumption that about the Fibaro module being current regulated wrong? Did I make a mistake in my wiring? Or should I measure something else with the multimeter?

Update
The current to voltage converter shown above won't work. Someone on the fibaro forum pointed me to this PWM > Voltage converter which should do the job.
User avatar
mbliek
Posts: 194
Joined: Friday 12 July 2013 14:08
Target OS: Raspberry Pi / ODroid
Domoticz version: beta
Location: the Netherlands
Contact:

Re: Home fan speed setting using ACM-LV10

Post by mbliek »

Why not using the 0-10volt dimmer from qubino?

I'm using it in my buva installation and there is no need for any other components or external power supply.

https://www.momotica.nl/Qubino-Flush-Di ... -Wave-Plus
marcfon
Posts: 3
Joined: Thursday 22 September 2016 7:46
Target OS: OS X
Domoticz version:
Contact:

Re: Home fan speed setting using ACM-LV10

Post by marcfon »

mbliek wrote:Why not using the 0-10volt dimmer from qubino?
I considered that option but I had an unused fibaro rgbw module laying around. If that wasn't the case I would have gone for the qubino dimmer for sure.
