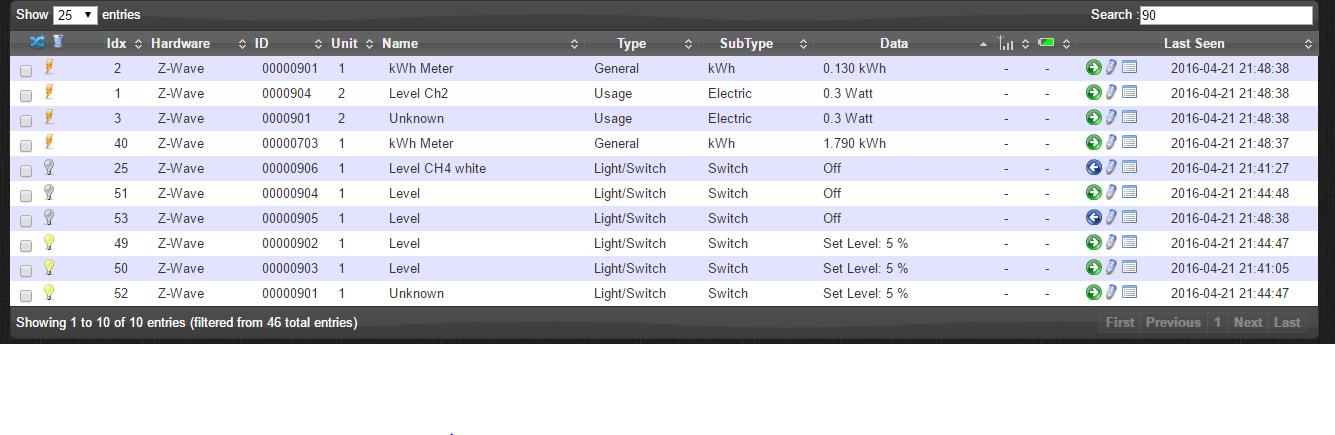

Device is found like this :
[img]
- Settings.PNG (82.19 KiB) Viewed 633 times
Settings of RGBW
Code: Select all
Configuration
Request current stored values from device
1. Enable/Disable ALL ON/OFF:
Activate/Deactive ALL ON/OFF
Last Update: 2016-04-21 21:51:36
6. Associations command class choice:
Choose which command classes are sent to associated devices.
Last Update: 2016-04-21 21:51:36
8. Outputs state change mode:
Choose the behaviour of transitions between different levels.
Last Update: 2016-04-21 21:51:36
9. Dimming step value (for MODE 1):
1
(actual: 1)
Size of the step for each change in level during the transition.
Last Update: 2016-04-21 21:51:36
10. Time between dimming steps (for MODE 1):
10
(ms) (actual: 10)
Time between each step in a transition between levels. Setting this to zero means an instantaneous change.
Last Update: 2016-04-21 21:51:36
11. Time to complete the entire transition (for MODE 2):
67
(actual: 67)
0 - immediate change; 1->63: 20ms->126ms (value*20ms); 65->127: 1s->63s (value-64)*1s; 129->191: 10s->630s (value-128)*10s; 193->255: 1min->63min (value-192)*1min. Default setting: 67 (3s)
Last Update: 2016-04-21 21:51:36
12. Maximum dimmer level:
255
(actual: 255)
Maximum brightness level for the dimmer
Last Update: 2016-04-21 21:51:36
13. Minimum dimmer level:
2
(actual: 2)
Minimum brightness level for the dimmer
Last Update: 2016-04-21 21:51:36
14. Inputs / Outputs configuration:
-26213
(actual: -26213)
This is too complex to describe here, since this value is built up from 4-bits for each of the 4 channels. Refer to the table in the product manual. Default value is 4369 (1111 in hex).
Last Update: 2016-04-21 21:51:36
15. Option double click:
Option double click (lighting set at 100%). 0 - Double click disabled, 1 - Double click enabled. Default setting 1
Last Update: 2016-04-21 21:51:36
16. Saving state before power failure:
Saving state before power failure
Last Update: 2016-04-21 21:51:36
30. Alarm:
Alarm of any type (general alarm, water flooding alarm, smoke alarm: CO, CO2, temperature alarm). Default setting 0 (Inactive)
Last Update: 2016-04-21 21:51:36
38. Alarm sequence program:
10
(actual: 10)
Program number selected from the 10 available.
Last Update: 2016-04-21 21:51:36
39. Active PROGRAM alarm time:
600
(s) (actual: 600)
In ALARM PROGRAM mode (see parameter 30), this defines the time in seconds the program lasts (1s->65534s)
Last Update: 2016-04-21 21:51:36
42. Command class reporting Outputs status change:
Specify which command class is used to report output status changes
Last Update: 2016-04-21 21:51:36
43. Reporting 0-10v analog inputs change threshold:
5
(*0.1V) (actual: 5)
Parameter defines a value by which input voltage must change in order to be reported to the main controller. New value is calculated based on last reported value: Default setting: 5 (0.5V). Range: 1->100 - (0.1V->10V).
Last Update: 2016-04-21 21:51:36
44. Power load reporting frequency:
30
(s) (actual: 30)
Sent if last reported value differs from the current value. Reports will also be sent in case of polling. Default setting: 30 (30s). Range: 1->65534 (1s->65534s) - interval between reports. Zero means reports are only sent in the case of polling, or at turning OFF the device
Last Update: 2016-04-21 21:51:36
45. Reporting changes in energy consumed by controlled devices:
10
(*0.01kWh) (actual: 10)
Interval between energy consumption reports (in kWh). New reported energy consumption value is calculated based on last reported value. 1->254 (0.01kWh->2.54kWh). Zero means changes in consumed energy will not be reported, except in case of polling.
Last Update: 2016-04-21 21:51:36
71. Response to BRIGHTNESS set to 0%:
Set whether to remember the previous RGB mix after the brightness has fallen to zero (black)
Last Update: 2016-04-21 21:51:36
72. Starting predefined program:
1
(actual: 1)
First predefined program to use when device is set to work in RGB/RGBW mode (parameter 14)
Last Update: 2016-04-21 21:51:36
73. Triple Click Action:
Behaviour when an input is triple-clicked
Last Update: 2016-04-21 21:51:36
