I've developed a Python plugin to support the HDXXAXXA16GK-D 16-channel current monitoring device from Guangzhou Huidian. This is a professional-grade current/frequency measurement module that's perfect for whole-house energy monitoring or industrial applications.

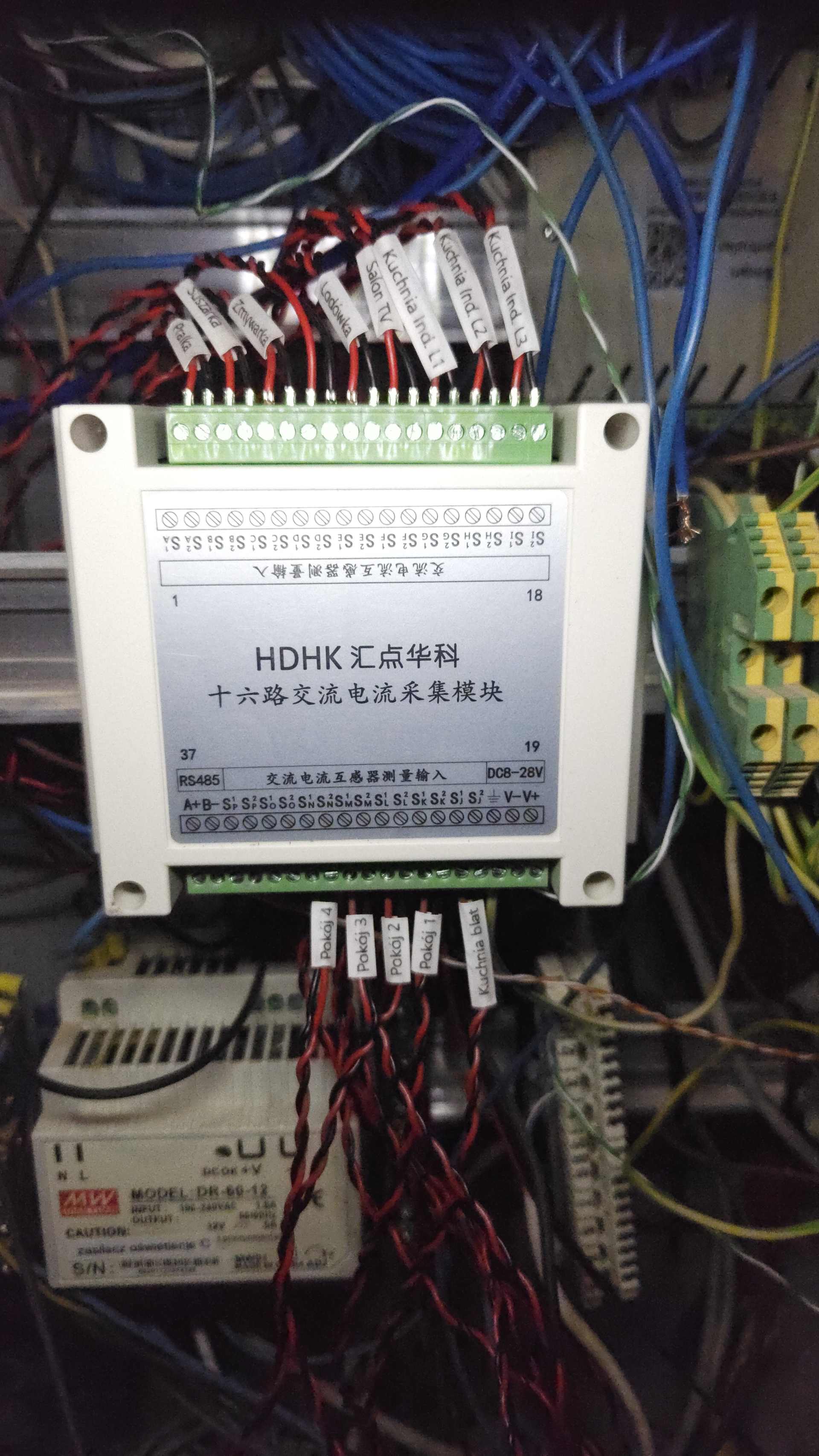

The HDXXAXXA16GK-D is a DIN-rail mounted device that measures AC current on 16 channels simultaneously with 0.01A resolution and ±1% accuracy at 50Hz. It uses Modbus RTU communication over RS485.
Actually device prime functionality is to measure frequency on circuit (Hz), beside current load (A) - but Im not using this function at all, not needed - we are all expecting to have 50Hz
Core functionality of the plugin
16-channel current monitoring - Real-time measurements with 0.01A resolution
Power calculation - Estimates power consumption using configurable voltage and power factor
Flexible configuration - JSON-based setup for maximum control
Modbus TCP connectivity - Plugin requires TCP proxy/gateway (does not support direct RS485 serial, Im not using it at home anymore, only TCP )
Dynamic or static configuration - Use live voltage/PF from other Domoticz devices (like DDS238 meters) or fixed values
Automatic phase summaries - Built-in L1/L2/L3 phase totals for 3-phase installations
Robust error handling - Auto-reconnection, health monitoring, data validation
Configuration Examples
Static configuration (simple):
json
Code: Select all
[
{"name": "Washing Machine", "voltage": 230, "pf": 0.75},
{"name": "Heat Pump", "voltage": 400, "pf": 0.85}
]json
Code: Select all
[
{"name": "Washing Machine", "voltage_idx": 1317, "pf_idx": 1318},
{"name": "Heat Pump", "voltage_idx": 1299, "pf_idx": 1320}
]Use Cases
Residential: Whole-house monitoring, appliance-level tracking, solar integration
Commercial: Restaurant kitchens, office buildings, workshops
Industrial: 3-phase equipment monitoring, load balancing
Links
Plugin repository: https://github.com/voyo/Domoticz_HomePowerMonitor
Device manual: http://www.huidkj.com/xiazai/HDXXAXXA16GK-D.pdf

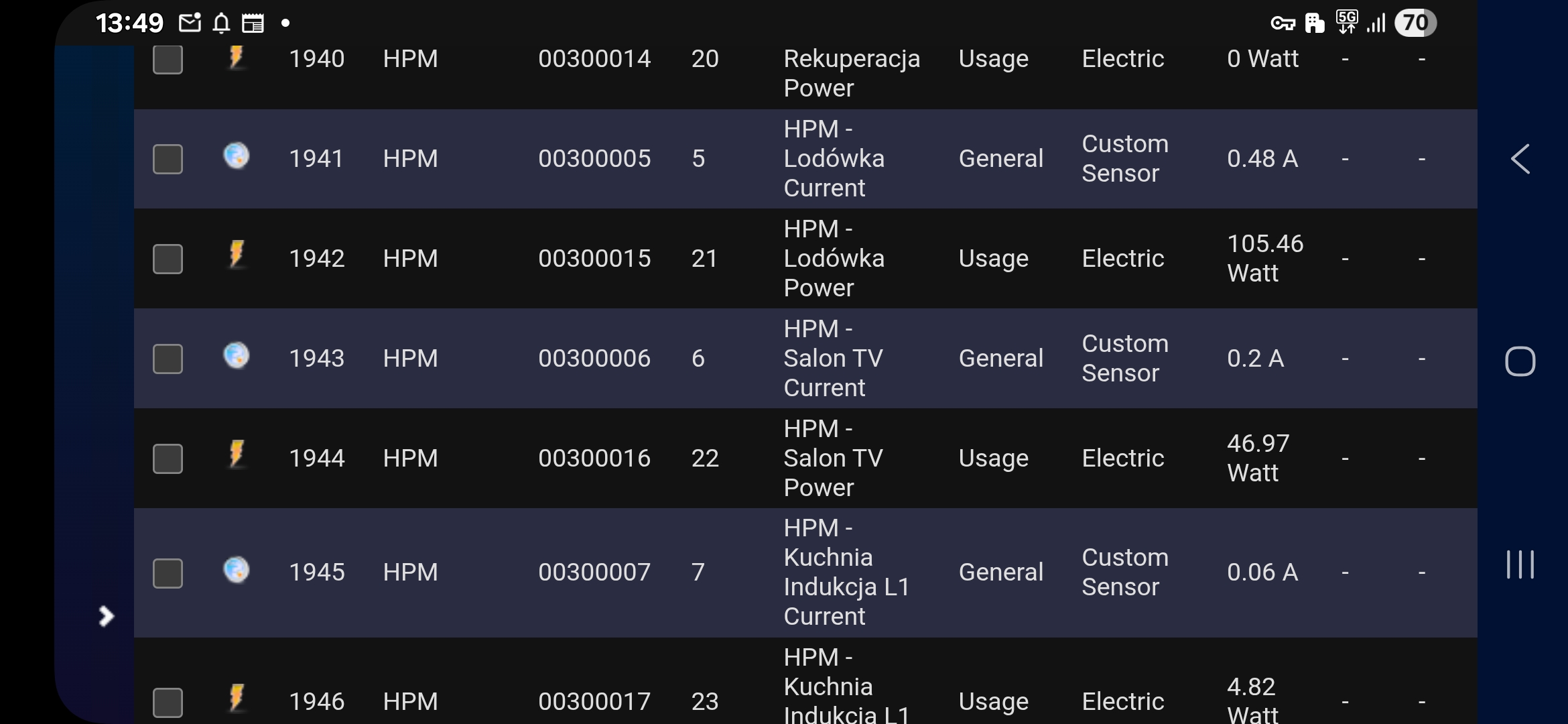

The plugin creates individual current/power devices for each channel plus automatic phase summaries when using dynamic configuration. It's been tested in production and includes comprehensive error handling and logging.
Questions and feedback welcome!
Has anyone else worked with similar multi-channel current monitoring devices? Would love to hear about your experiences or suggestions for improvements.
