I've made a script that move automatically the sunshades, blinds, shutters (in the following, I use blinds in all cases), depending on:
- the outside temperature,
- the position of the sun and therefore also "day" and "night",
- the time of day.
There are 2 modes: Automatic and Manual
- Manual is the mode of the normal button, taken into account to know if you are in automatic or not
- Automatic: the blind moves by itself whatever the time and the season
Automatic, there are 3 programs that change automatically
- Cold: below a certain outside temperature: you close the blind at night to keep the heat and you open it during the day to see and receive the heat of the sun; I set 20°C
- Hot: when there is a lot of sun, we open the blinds at night to cool down and during the day we follow the sun to close the blinds as the sun rises (for the sunshades, because for a blind without slats, it's all or nothing).
I took the outside temperature as a criterion while waiting to be able to measure the solar radiation with a good reactivity; I put 24°C (but it depends on where is the thermometer; in my case, it is very in the shade)
- Warm: neither Cold, nor Hot: we leave the blind open all the time
Here is the script
Code: Select all
--[[
A dz dzVents Script to close or open blinds or shutters regarding outside information: light, temperature, solar posiiton and time

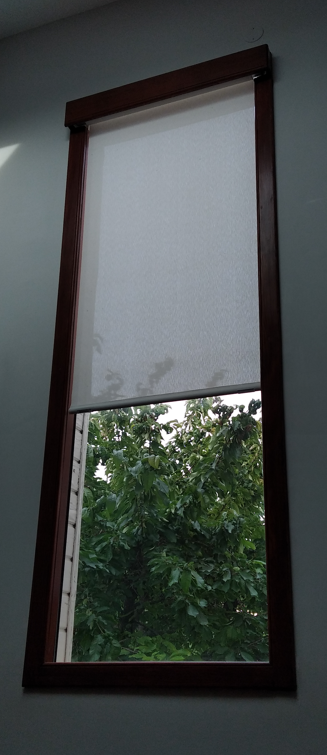

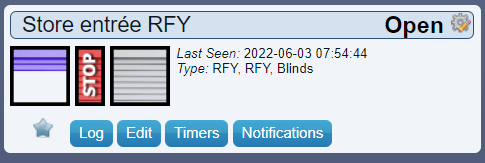

In this script, it could be vertical shutters or blinds like roller shades (w/o slates) or fix shutters or blinds with slates ("brise-soleil")

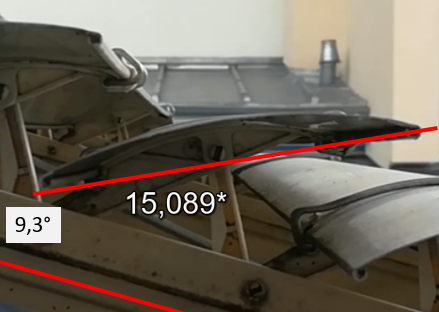

For brise-soleil, the slates follow the sun to get just the shade needed
In the following I'm going to use the word blind only for all cases
It is possible to declare several blinds in the same script with a different configuration for each ones

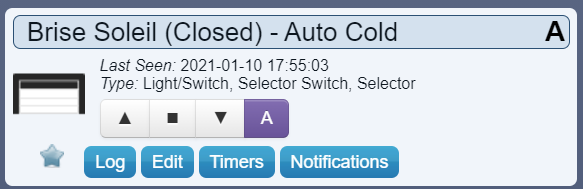

tips to setup the selector (BLIND_ID)
10: ▲ => UP
20: ◼ => STOP
30: ▼ => DOWN
40: A => Auto
05/04/2020 - new!
07/02/2021 - clarify log if newBlindProgram is empty
04/04/2021 - add new type of device for SUN_CRITERIA (temperature, lux, percentage)
04/06/2021 - round angle in the device name / fix lastSlatAngle init / fix rename conditions
06/07/2021 - logging precision
08/08/2021 - bug fixed, changed lastBlindProgram to newBlindProgram (one occurence forgotten in Auto mode)
11/08/2021 - clarify log
17/08/2021 - the sun radiation (lux or W/m2) is considered on the floor (horizontal projection of the sun radiation or measured on an horizontal surface)
for a whole house what matter is more the whole radiation than only the horizontal one
particularly when the sun is low and vertical windows are considered
to have a better criteria for the impact of the sun on a house, the whole value is used (projection on the floor removed)
19/05/2022 - adjust the rounded of the movement to avoid a line of sun when the brise-soleil are closing
22/05/2022 - separate sun radiation and max outside temperature to combine them
06/06/2022 - fix bugs where blinds are mostly on east and west => refactoring some old parts done for vertical windows using new parts (see 17/08/2021)
Breaking change BLIND_AZIMUTH is now the Azimuth of the normal of the area
12/06/2022 - fix "nil value (local 'P_SlatAngleTarget'"
14/06/2022 - idem
17/06/2022 - remove cosIncidence from the sunRadiationValue: thru a glass at any inclination, the sun strike a body the same?
next? - add HOT+ program: shut the blinds if very hot and the sun strikes the blind
prerequisite: dzVents Version: 3.0.2
3 sensors:
SOLAR_ALTITUDE Device that gives Solar Altitude see https://www.domoticz.com/wiki/index.php?title=Lua_dzVents_-_Solar_Data:_Azimuth_Altitude_Lux
SOLAR_AZIMUTH Device that gives Solar Azimuth see https://www.domoticz.com/wiki/index.php?title=Lua_dzVents_-_Solar_Data:_Azimuth_Altitude_Lux
OUTSIDE_TEMP Device that gives Outside temperature
SUN_RADIATION 1 or 2 devices that gives the value of the outside radiation to determine if the blind must be closed because it is too sunny
(lux or W/m2)
SUN_RADIATION: 1 or 2 devices to determine if the blind must be closed (according to the sun position) because it is too sunny
It could be solar radiation in lux, or solar radiation in W/m2
There could be 1 or 2 devices
If 1 device, it is a total radiation value (usually on the ground)
If 2 devices, the SUN_RADIATION1 is the direct radiation and SUN_RADIATION2 is the scattered (or diffuse) radiation
and the total radiation is calculated on the surface of the blind with the angle of this surface and the sun
At the first use or after any change of the script name, to click Auto mode to initiate "data"
--]]
-- log options
local LOG_DEBUG = 0 -- 0 =>ERROR / 1 => FORCE / 2 => DEBUG
local LOG_LEVEL
local LOGGING
if LOG_DEBUG == 2 then
LOGGING = domoticz.LOG_DEBUG
LOG_LEVEL = domoticz.LOG_DEBUG
elseif LOG_DEBUG == 1 then
LOGGING = domoticz.LOG_FORCE
LOG_LEVEL = domoticz.LOG_FORCE
else
LOGGING = domoticz.LOG_ERROR
LOG_LEVEL = domoticz.LOG_INFO
end
local ALL_MAX_SUN_RADIATION = 400
local ALL_MAX_OUTSIDE_TEMP = 21
local ALL_XXL_OUTSIDE_TEMP = 30 -- future version...
local ALL_MIN_OUTSIDE_TEMP = 20
local BLINDS =
{ [1203] = -- Dummy device with Automatics command (to create) (id or 'name')
{
['BLIND_TYPE'] = 'V', -- "B" Brise Soleil or "V" Vertical
['BLIND_NAME'] = 'Store',-- Name of the dummy device
['BLIND_ID'] = 953, -- Device of the BLIND to close or open (id or 'name')
['BLIND_AZIMUTH'] = 289, -- Angle from the projection on the ground of the normal of the blind and the North (Azimuth of the normal of the area)
['SOLAR_ALTITUDE_MIN'] = 10, -- Solar Altitude where the sun is hidden by a house, a tree, if nothing 0
['MAX_SUN_RADIATION'] = ALL_MAX_SUN_RADIATION, -- If radiation is more than this max, the blind is closed during the day and according to the sun position (HOT)
['MAX_OUTSIDE_TEMP'] = ALL_MAX_OUTSIDE_TEMP, -- If temperature is more than this max, the blind is closed during the day and according to the sun position (HOT)
['MIN_OUTSIDE_TEMP'] = ALL_MIN_OUTSIDE_TEMP, -- If outside temperature in less than this min temp, the blind is closed night (COLD)
['SLAT_DOWN_ANGLE'] = -90, -- Angle from the horizontal when the slat is down (<0), -90 for vertical blind
['SLAT_UP_ANGLE'] = 90, -- Angle from the horizontal when the slat is up, 90 for vertical blind
['SLAT_LENGHT'] = '', -- Length of the slate, any unit (cm...), nil for vertical blind
['SLAT_DISTANCE'] = '', -- Distance between slates, any unit (cm...), nil for vertical blind
['BLIND_ANGLE'] = 90, -- Angle of the blind from the horizontal (>0)
['TTC_SLAT_SEC'] = 1 -- Time To Close the blind in seconds, to be measured, 1 for vertical blind
},
[1122] = -- Dummy device with Automatics command (to create) (id or 'name')
{
['BLIND_TYPE'] = 'B', -- "B" Brise Soleil or "V" Vertical
['BLIND_NAME'] = 'Brise Soleil',-- Name of the dummy device
['BLIND_ID'] = 673, -- Device of the BLIND to close or open (id or 'name')
['BLIND_AZIMUTH'] = 289, -- Angle from the projection on the ground of the normal of the blind and the North (Azimuth of the normal of the area)
['SOLAR_ALTITUDE_MIN'] = 15, -- 20 pour relever les lattes -- Solar Altitude where the sun is hidden by a house, a tree, if nothing 0
['MAX_SUN_RADIATION'] = ALL_MAX_SUN_RADIATION, -- If radiation is more than this max, the blind is closed during the day and according to the sun position (HOT)
['MAX_OUTSIDE_TEMP'] = ALL_MAX_OUTSIDE_TEMP, -- If temperature is more than this max, the blind is closed during the day and according to the sun position (HOT)
['MIN_OUTSIDE_TEMP'] = ALL_MIN_OUTSIDE_TEMP, -- If outside temperature in less than this min temp, the blind is closed night (COLD)
['SLAT_DOWN_ANGLE'] = -4, -- Angle from the horizontal when the slat is down (<0), -90 for vertical blind
['SLAT_UP_ANGLE'] = 55, -- Angle from the horizontal when the slat is up, 90 for vertical blind
['SLAT_LENGHT'] = 8, -- Length of the slate, any unit (cm...), nil for vertical blind
['SLAT_DISTANCE'] = 7, -- Distance between slates, any unit (cm...), nil for vertical blind
['BLIND_ANGLE'] = 16, -- Angle of the blind from the horizontal (>0)
['TTC_SLAT_SEC'] = 16 -- Time To Close the blind in seconds, to be measured, 1 for vertical blind
}
}
--[[ ,
[2618] = -- Dummy device with Automatics command (to create) (id or 'name')
{
['BLIND_TYPE'] = 'V', -- "B" Brise Soleil or "V" Vertical
['BLIND_NAME'] = 'Rideau Studio',-- Name of the dummy device
['BLIND_ID'] = 205, -- Device of the BLIND to close or open (id or 'name')
['BLIND_AZIMUTH'] = 19, -- Angle from the projection on the ground of the normal of the blind and the North (Azimuth of the normal of the area)
['SOLAR_ALTITUDE_MIN'] = 10, -- Solar Altitude where the sun is hidden by a house, a tree, if nothing 0
['MAX_SUN_RADIATION'] = 200, -- If radiation is more than this max, the blind is closed during the day and according to the sun position (HOT)
['MAX_OUTSIDE_TEMP'] = 10, -- If temperature is more than this max, the blind is closed during the day and according to the sun position (HOT)
['MIN_OUTSIDE_TEMP'] = 10, -- If outside temperature in less than this min temp, the blind is closed night (COLD)
['SLAT_DOWN_ANGLE'] = -90, -- Angle from the horizontal when the slat is down (<0), -90 for vertical blind
['SLAT_UP_ANGLE'] = 90, -- Angle from the horizontal when the slat is up, 90 for vertical blind
['SLAT_LENGHT'] = '', -- Length of the slate, any unit (cm...), nil for vertical blind
['SLAT_DISTANCE'] = '', -- Distance between slates, any unit (cm...), nil for vertical blind
['BLIND_ANGLE'] = 90, -- Angle of the blind from the horizontal (>0)
['TTC_SLAT_SEC'] = 1 -- Time To Close the blind in seconds, to be measured, 1 for vertical blind
},
[2619] = -- Dummy device with Automatics command (to create) (id or 'name')
{
['BLIND_TYPE'] = 'V', -- "B" Brise Soleil or "V" Vertical
['BLIND_NAME'] = 'Rideau Chambre',-- Name of the dummy device
['BLIND_ID'] = 206, -- Device of the BLIND to close or open (id or 'name')
['BLIND_AZIMUTH'] = 199, -- Angle from the projection on the ground of the normal of the blind and the North (Azimuth of the normal of the area
['SOLAR_ALTITUDE_MIN'] = 10, -- Solar Altitude where the sun is hidden by a house, a tree, if nothing 0
['MAX_SUN_RADIATION'] = 200, -- If radiation is more than this max, the blind is closed during the day and according to the sun position (HOT)
['MAX_OUTSIDE_TEMP'] = 10, -- If temperature is more than this max, the blind is closed during the day and according to the sun position (HOT)
['MIN_OUTSIDE_TEMP'] = 10, -- If outside temperature in less than this min temp, the blind is closed night (COLD)
['SLAT_DOWN_ANGLE'] = -90, -- Angle from the horizontal when the slat is down (<0), -90 for vertical blind
['SLAT_UP_ANGLE'] = 90, -- Angle from the horizontal when the slat is up, 90 for vertical blind
['SLAT_LENGHT'] = '', -- Length of the slate, any unit (cm...), nil for vertical blind
['SLAT_DISTANCE'] = '', -- Distance between slates, any unit (cm...), nil for vertical blind
['BLIND_ANGLE'] = 90, -- Angle of the blind from the horizontal (>0)
['TTC_SLAT_SEC'] = 1 -- Time To Close the blind in seconds, to be measured, 1 for vertical blind
}
}
--]]
local TEST = 203 -- a dummy switch for testing w/o waiting minutes / remove comment to use / comment to ignore
local SOLAR_ALTITUDE = 338 -- Device that give Solar Altitude
local SOLAR_AZIMUTH = 337 -- Device that give Solar Azimuth
local OUTSIDE_TEMP = 2560 -- Device that give Outside temperature
local OUTSIDE_TEMP_MARGING = .3 -- Marging to have an hysteresis to change mode or program to avoid multiple changes when few changes of temp
local SUN_RADIATION1 = 1914 -- total radiation if 1 device, direct radiation if 2 devices
local SUN_RADIATION2 = 1915 -- if the first is the direct radiation, this one is the scattered radiation
local SUN_RADIATION_MARGING = 20 -- Marging to have an hysteresis to change mode or program to avoid multiple changes when few changes of the value
local DEVICES_TRIGGER = {
OUTSIDE_TEMP,
SUN_RADIATION1,
TEST
} -- SOLAR_AZIMUTH is updated at the same time as SUN_RADIATION1
-- ... next add the BLINDS definitions
for blindId, _ in pairs(BLINDS) do
table.insert( DEVICES_TRIGGER, blindId )
end
--local DEVICES_TRIGGER = {1203, 1122, 2618, 2619, OUTSIDE_TEMP, SUN_RADIATION1, TEST} -- SOLAR_AZIMUTH is updated at the same time as SUN_RADIATION
--local TIME_INTERVAL = 'every 5 minutes'
return {
logging = {
level = LOGGING
},
on = { devices = DEVICES_TRIGGER,
--timer = {TIME_INTERVAL} -- trigger to choose
},
data = { slatAngle = { initial = {}}, -- Last angle of the slate
lastMaxSlatAngle = { initial = {}}, -- Last max angle of the slate to kwnow if it goes up or down -- 19/05/2022
blindMode = { initial = {}}, -- Last mode of the blind Manual, Auto
blindProgram = { initial = {}} -- Last program of the blind Cold, Warm, Hot
},
execute = function(dz, item, triggerInfo)
_G.logMarker = dz.moduleLabel -- set logmarker to scriptname
local _u = dz.utils
-- /// Functions start \\\
local function logWrite(str,level) -- Support function for shorthand debug log statements
if level == nil then
level = LOG_LEVEL
end
dz.log(tostring(str),level)
end
local function CalculateSunIncidence(P_SolarAzimuth, P_SolarAltitude, P_AreaAzimuth, P_AreaInclination)
--logWrite('CalculateSunIncidence')
-- Calculate the sun incidence (the cosinuss) on a tilt surface
--P_SolarAzimuth: azimuth of the sun in degrees (from the Noth)
--P_SolarAltitude: elevation of the sun or altitude in degrees
--P_AreaAzimuth: azimuth of the normale surface in degrees (from the Noth)
--P_AreaInclination: inclination of the surface (from the horizontal)
logWrite('P_SolarAltitude: ' .. P_SolarAltitude)
logWrite('P_SolarAzimuth: ' .. P_SolarAzimuth)
logWrite('P_AreaInclination: ' .. P_AreaInclination)
logWrite('P_AreaAzimuth: ' .. P_AreaAzimuth)
local F_cosIncidence
F_cosIncidence = math.cos(math.rad(P_SolarAltitude)) * math.sin(math.rad(P_AreaInclination)) * math.cos(math.rad(P_AreaAzimuth - P_SolarAzimuth))
+ math.sin(math.rad(P_SolarAltitude)) * math.cos(math.rad(P_AreaInclination))
F_cosIncidence = _u.round(F_cosIncidence, 3)
--logWrite('F_cosIncidence: ' .. F_cosIncidence)
local F_Incidence = math.deg(math.acos(F_cosIncidence))
--logWrite('F_Incidence: ' .. F_Incidence)
if F_cosIncidence < 0 then
logWrite('The sun is behind, cos incidence=' .. F_cosIncidence)
F_cosIncidence = 0
end
logWrite('SolarAltitude: ' .. P_SolarAltitude .. ' SolarAzimuth: ' .. P_SolarAzimuth
.. ' AreaInclination: ' .. P_AreaInclination .. ' AreaAzimuth: ' .. P_AreaAzimuth
.. ' CosIncidence: ' .. F_cosIncidence .. ' ' .. ' Incidence: ' .. _u.round(F_Incidence,0) .. '°')
return F_cosIncidence
end
local function GetSunRadiation(P_SolarAzimuth, P_SolarAltitude, P_AreaAzimuth, P_AreaInclination)
-- Get the sun criteria values
local F_dev_sunRadiation = dz.devices(SUN_RADIATION1)
local F_sunRadiationValue
--logWrite('sunRadiationValue ' .. F_dev_sunRadiation.name .. ' type ' .. F_dev_sunRadiation.deviceType .. ' s/type ' .. F_dev_sunRadiation.deviceSubType)
local F_cosIncidence = CalculateSunIncidence(P_SolarAzimuth, P_SolarAltitude, P_AreaAzimuth, P_AreaInclination)
if F_dev_sunRadiation.deviceSubType == 'Lux' then
F_sunRadiationValue = F_dev_sunRadiation.lux
elseif F_dev_sunRadiation.deviceSubType == 'Solar Radiation' then
local F_solarRadiation = F_dev_sunRadiation.radiation
if SUN_RADIATION2 ~= nil then -- it is the scattered radiation and the previous was the direct
local F_solarRadiationScattered = dz.devices(SUN_RADIATION2).radiation
-- the total radation on the blind depends on the incidence of the sun
-- F_cosIncidence = CalculateSunIncidence(P_SolarAzimuth, P_SolarAltitude, P_AreaAzimuth, P_AreaInclination) -- to remove 06/06/2022
-- the direct radiation is projected on the incidence, the scattered (diffused) is in all directions
--F_sunRadiationValue = math.max(_u.round(F_solarRadiation * F_cosIncidence + F_solarRadiationScattered, 0), 0)
F_sunRadiationValue = math.max(_u.round(F_solarRadiation + F_solarRadiationScattered, 0), 0) -- 17/06/2022 -- thru a glass at any inclinaison, the sun strike a body the same?
else -- it is the total radiation
F_sunRadiationValue = F_solarRadiation
end
else
logWrite(F_dev_sunRadiation.id .. ' ' .. F_dev_sunRadiation.name .. ' device Type not supported ' .. F_dev_sunRadiation.deviceType, dz.LOG_ERROR)
end
logWrite('sunRadiation ' .. F_sunRadiationValue, dz.LOG_DEBUG)
return F_sunRadiationValue, F_cosIncidence
end
local function InitPosition(P_devBlind, P_SLAT_UP_ANGLE)
P_devBlind.open().silent()
return P_SLAT_UP_ANGLE
end
local function CalculateSlatAngle(P_SolarAzimuth, P_SolarAltitude, P_BlindAzimuth, P_SlatDownAngle, P_SlatUpAngle, P_SolarAltitudeMin, P_SLAT_LENGHT, P_SLAT_DISTANCE, P_BLIND_ANGLE, P_BLIND_TYPE, P_cosIncidence)
-- calculate the angle the slat need to have to be against the sun
-- normal to the projection of the sun ray on a plan perpendicular at the blind azimuth
--
logWrite('CalculateSlatAngle')
logWrite('P_BLIND_TYPE ' .. P_BLIND_TYPE)
logWrite('P_SolarAzimuth ' .. P_SolarAzimuth)
logWrite('P_SolarAltitude ' .. P_SolarAltitude)
logWrite('P_BlindAzimuth ' .. P_BlindAzimuth)
logWrite('P_SolarAltitudeMin ' .. P_SolarAltitudeMin)
logWrite('P_cosIncidence ' .. P_cosIncidence)
--
--local F_SunInTheFront = false
local F_SlatAngle
if P_SolarAltitude < P_SolarAltitudeMin then -- if the sun is low, open the slates
F_SlatAngle = P_SlatUpAngle
logWrite('F_SlatAnglee open as the sun is low :' .. F_SlatAngle, dz.LOG_FORCE)
else
if P_cosIncidence > 0 then
logWrite('Sun on the area', dz.LOG_FORCE)
if P_BLIND_TYPE == "V" then -- vertical blind: open or closed
--if F_SunInTheFront then -- the slate should be closed enough not to let the sun shine in
F_SlatAngle = P_SlatDownAngle
logWrite('Blind closed: ' .. F_SlatAngle, dz.LOG_FORCE)
--else
--F_SlatAngle = P_SlatUpAngle
--logWrite('Blind open: ' .. F_SlatAngle)
--end
elseif P_BLIND_TYPE == "B" then -- brise-soleil, the angle of slates is calculated to follow the sun
local F_IncidenceSunBlind = P_BlindAzimuth - P_SolarAzimuth -- angle of the sun on the front of the blind
local F_ProjectedSolarAltitude = math.deg(math.atan
(
math.tan(math.rad(P_SolarAltitude))
/math.cos(math.rad(F_IncidenceSunBlind))
)
)
if F_ProjectedSolarAltitude > 0 then
logWrite('F_ProjectedSolarAltitude: ' .. F_ProjectedSolarAltitude)
logWrite('P_SlatDownAngle ' .. P_SlatDownAngle .. ' / P_SlatUpAngle ' .. P_SlatUpAngle)
local q = math.tan(math.rad(F_ProjectedSolarAltitude + P_BLIND_ANGLE))
logWrite('q=' .. q)
--print('q ' .. q)
local a = (P_SLAT_DISTANCE / P_SLAT_LENGHT) + 1
--print('a ' .. a)
local b = 2 / q
--print('b ' .. b)
local c = (P_SLAT_DISTANCE / P_SLAT_LENGHT) - 1
--print('c ' .. c)
local d = b*b - 4*a*c
--print('d ' .. d)
local rac2d = math.sqrt(d)
--print('rac2d ' .. rac2d)
local t = (rac2d - b) / (2*a)
--print('t ' .. t)
local i = 2*math.deg(math.atan(t)) -- angle between the slat and the blind (roof)
--print('i ' .. i)
F_SlatAngle = i - P_BLIND_ANGLE
logWrite('F_SlatAngle therorical: ' .. F_SlatAngle)
-- the slate angle should be inside the capability of the blind
if F_SlatAngle > P_SlatUpAngle then
F_SlatAngle = P_SlatUpAngle
elseif F_SlatAngle < P_SlatDownAngle then
F_SlatAngle = P_SlatDownAngle
end
logWrite('Slat angle target: ' .. F_SlatAngle .. '° / Inclination from horizontal: ' .. (F_SlatAngle - P_BLIND_ANGLE) .. '°', dz.LOG_FORCE)
else
logWrite('F_ProjectedSolarAltitude: ' .. F_ProjectedSolarAltitude .. ' < 0 ; sun not on the side of the slats', dz.LOG_FORCE)
F_SlatAngle = P_SlatUpAngle -- 14/06/2022
end
else
logWrite("BLIND_TYPE unknown " .. P_BLIND_TYPE, dz.LOG_ERROR)
return(0)
end
else
logWrite('Sun not on the area', dz.LOG_FORCE)
F_SlatAngle = P_SlatUpAngle -- 12/06/2022
end
end
return(_u.round(F_SlatAngle,0))
end
local function CalculateSlatMvt(P_SlatAngleTarget, P_LastSlatAngle, P_lastMaxSlatAngle, P_SLAT_UP_ANGLE, P_SLAT_DOWN_ANGLE, P_SLAT_MARGING, P_TTC_SLAT_SEC)
-- calculte the time is seconds to move the slates and the direction
--[[
logWrite('CalculateSlatMvt')
logWrite('P_SlatAngleTarget '.. P_SlatAngleTarget )
logWrite('P_LastSlatAngle ' .. P_LastSlatAngle )
--]]
-- if the slat target is near an edge it is moving to this edge
local F_SlatMvt -- duration of the move in seconds
local F_SlatAngleDelta
if P_SlatAngleTarget == P_SLAT_UP_ANGLE and P_LastSlatAngle == P_SLAT_UP_ANGLE then -- already up
F_SlatMvt = 0
F_SlatAngleDelta = 0
logWrite('P_SlatAngleTarget already to the max => F_SlatMvt ' .. F_SlatMvt)
elseif P_SlatAngleTarget + P_SLAT_MARGING > P_SLAT_UP_ANGLE then -- up edge
F_SlatMvt = 999
F_SlatAngleDelta = 999
logWrite('P_SlatAngleTarget near the up edge ' .. F_SlatMvt)
elseif P_SlatAngleTarget == P_SLAT_DOWN_ANGLE and P_LastSlatAngle == P_SLAT_DOWN_ANGLE then -- already down
F_SlatMvt = 0
F_SlatAngleDelta = 0
logWrite('P_SlatAngleTarget already to the min ' .. F_SlatMvt)
elseif P_SlatAngleTarget - P_SLAT_MARGING <= P_SLAT_DOWN_ANGLE then -- down edge
F_SlatMvt = -999
F_SlatAngleDelta = -999
logWrite('P_SlatAngleTarget near the down edge ' .. F_SlatMvt, dz.LOG_FORCE)
else
F_SlatAngleDelta = P_SlatAngleTarget - P_LastSlatAngle
logWrite('=> P_SlatAngleTarget ' .. P_SlatAngleTarget, dz.LOG_FORCE)
logWrite('P_LastSlatAngle ' .. P_LastSlatAngle, dz.LOG_FORCE)
logWrite('F_SlatAngleDelta ' .. F_SlatAngleDelta, dz.LOG_FORCE)
F_SlatMvt = P_TTC_SLAT_SEC * F_SlatAngleDelta / (P_SLAT_UP_ANGLE - P_SLAT_DOWN_ANGLE)
logWrite('F_SlatMvt ' .. F_SlatMvt .. ' s', dz.LOG_FORCE)
logWrite('=> P_lastMaxSlatAngle: ' .. P_lastMaxSlatAngle, dz.LOG_FORCE)
if P_lastMaxSlatAngle == nil or P_SlatAngleTarget < P_lastMaxSlatAngle then -- 19/05/2022
logWrite('=> The slates go down', dz.LOG_FORCE)
F_SlatMvt = math.ceil(F_SlatMvt)
--F_SlatMvt = math.floor(F_SlatMvt)
else
F_SlatMvt = math.floor(F_SlatMvt)
--F_SlatMvt = math.ceil(F_SlatMvt)
logWrite('The slates go up', dz.LOG_FORCE)
end
-- rounded toward the next move
--[[
if F_SlatMvt < 0 then
F_SlatMvt = math.floor(F_SlatMvt)
else
F_SlatMvt = math.ceil(F_SlatMvt)
end
--]]
F_SlatMvt = _u.round(F_SlatMvt)
logWrite('F_SlatMvt ' .. F_SlatMvt .. ' s', dz.LOG_FORCE)
F_SlatAngleDelta = F_SlatMvt * (P_SLAT_UP_ANGLE - P_SLAT_DOWN_ANGLE) / P_TTC_SLAT_SEC -- the "real" move
logWrite('F_SlatAngleDelta ' .. F_SlatAngleDelta, dz.LOG_FORCE)
end
logWrite('F_SlatMvt ' .. F_SlatMvt)
logWrite('F_SlatAngleDelta ' .. F_SlatAngleDelta)
return F_SlatMvt, F_SlatAngleDelta
end
local function MoveSlat(P_SlatMvt, P_devBlind)
-- move the slat the number of seconds in parameter, if > 0 to the open direction , if < 0 to the close direction
logWrite('MoveSlate ' .. P_SlatMvt .. ' ' .. P_devBlind.name)
if P_SlatMvt == 0 then
logWrite('No need to move the blind ' .. P_SlatMvt .. ' sec')
else
if P_SlatMvt > 0 then
--if P_SlatMvt < 999 then
--P_devBlind.open().forSec(P_SlatMvt).silent()
logWrite('Blind opens for ' .. P_SlatMvt .. ' seconds')
--else
P_devBlind.open().silent()
--logWrite('Blind opens to the max')
--end
else
--if P_SlatMvt > -999 then
logWrite('Blind closes for ' .. P_SlatMvt .. ' seconds')
--else
P_devBlind.close().silent()
--logWrite('Blind closes ')
--end
P_SlatMvt = - P_SlatMvt
logWrite('Blind closes ' .. P_SlatMvt .. ' seconds')
end
if math.abs(P_SlatMvt) ~= 999 then -- it is not an edge position
P_devBlind.stop().afterSec(P_SlatMvt).silent()
end
end
return
end
local function Calibration(P_timeSec, P_devBlind)
logWrite('CALIBRATION ' .. P_timeSec, dz.LOG_FORCE)
MoveSlat(P_timeSec, P_devBlind)
currentBlindMode = 'CALIBRATION'
return
end
-- \\\ Functions end ///
if item.isDevice then -- selector by sbdy or change is temp or sun criteria or sun position
logWrite('==>> triggered by device ' .. item.id .. ' ' .. item.name .. ' ' .. item.state, dz.LOG_FORCE)
elseif item.isTimer then -- Timer trigger
logWrite('==>> triggered by timer', dz.LOG_FORCE)
else -- Impossible error!
logWrite('==>> triggered by ?????', dz.LOG_ERROR)
return
end
for blindId, blinfInfo in pairs(BLINDS) do
local devDummyBlind = dz.devices(blindId) -- Switch dummy device with commands
local devBlind = dz.devices(BLINDS[blindId].BLIND_ID) -- Device of the BLIND to close or open
logWrite('-->> ' .. devDummyBlind.name .. ' ' .. blindId)
logWrite(devBlind.name .. ' ' .. devBlind.id)
local lastSlatAngle = dz.data.slatAngle[blindId]
local lastMaxSlatAngle = dz.data.lastMaxSlatAngle[blindId]
local currentBlindMode = dz.data.blindMode[blindId]
local lastBlindProgram = dz.data.blindProgram[blindId]
if currentBlindMode == nil then currentBlindMode = 'INITIAL' end
if lastBlindProgram == nil then lastBlindProgram = 'INITIAL' end
if lastSlatAngle == nil then
if currentBlindMode == 'Auto' then -- 01/06/2021
logWrite('Start ' .. currentBlindMode .. ' lastSlatAngle null !!!', dz.LOG_ERROR)
else
logWrite('Start ' .. currentBlindMode .. ' slat angle null')
end
else
logWrite('Start ' .. currentBlindMode .. ' slat angle ' .. lastSlatAngle)
end
local BLIND_TYPE = BLINDS[blindId].BLIND_TYPE
local BLIND_NAME = BLINDS[blindId].BLIND_NAME
local BLIND_AZIMUTH = BLINDS[blindId].BLIND_AZIMUTH
local SOLAR_ALTITUDE_MIN = BLINDS[blindId].SOLAR_ALTITUDE_MIN
local SLAT_DOWN_ANGLE = BLINDS[blindId].SLAT_DOWN_ANGLE
local SLAT_UP_ANGLE = BLINDS[blindId].SLAT_UP_ANGLE
local SLAT_LENGHT = BLINDS[blindId].SLAT_LENGHT
local SLAT_DISTANCE = BLINDS[blindId].SLAT_DISTANCE
local BLIND_ANGLE = BLINDS[blindId].BLIND_ANGLE
-- < Device trigger
if item.isDevice then -- selector by sbdy or change is temp or sun criteria or sun position
if item == devDummyBlind then -- sbdy used the dummy selector
if devDummyBlind.level == 10 then -- up
if CALIBRATION ~= nil then -- move the slate up to count the times to open
Calibration(CALIBRATION, devBlind)
return
else
devBlind.open().silent()
lastSlatAngle = SLAT_UP_ANGLE
lastMaxSlatAngle = SLAT_UP_ANGLE
currentBlindMode = 'Manual'
dz.log('devDummyBlind level: ' .. devDummyBlind.level .. ' open', LOG_LEVEL)
end
elseif devDummyBlind.level == 20 then -- stop
devBlind.stop().silent()
lastSlatAngle = nil
currentBlindMode = 'Manual'
logWrite('devDummyBlind level: ' .. devDummyBlind.level .. ' stop')
elseif devDummyBlind.level == 30 then -- down
if CALIBRATION ~= nil then -- move the slate up to count the times to close
Calibration(-CALIBRATION, devBlind)
return
else
devBlind.close().silent()
devBlind.close().afterSec(3).silent() -- twice in case of loss of message (12/11/2020)
lastSlatAngle = SLAT_DOWN_ANGLE
currentBlindMode = 'Manual'
logWrite('devDummyBlind level: ' .. devDummyBlind.level .. ' close')
end
elseif devDummyBlind.level == 40 then -- automatic
if currentBlindMode ~= 'Auto' then
lastSlatAngle = nil -- to force an init in Auto mode
logWrite('devDummyBlind level: ' .. devDummyBlind.level .. ' init auto mode')
else
logWrite('devDummyBlind level: ' .. devDummyBlind.level .. ' go on auto mode')
end
currentBlindMode = 'Auto'
else
logWrite('devDummyBlind level unknown: ' .. devDummyBlind.state, dz.LOG_ERROR)
end
end
end
-- < Auto mode
local MAX_SUN_RADIATION = BLINDS[blindId].MAX_SUN_RADIATION
logWrite('MAX_SUN_RADIATION: ' .. MAX_SUN_RADIATION, dz.LOG_DEBUG)
local MAX_OUTSIDE_TEMP = BLINDS[blindId].MAX_OUTSIDE_TEMP
logWrite('MAX_OUTSIDE_TEMP: ' .. MAX_OUTSIDE_TEMP, dz.LOG_DEBUG)
local MIN_OUTSIDE_TEMP = BLINDS[blindId].MIN_OUTSIDE_TEMP
logWrite('MIN_OUTSIDE_TEMP: ' .. MIN_OUTSIDE_TEMP, dz.LOG_DEBUG)
logWrite('SLAT_UP_ANGLE: ' .. BLINDS[blindId].SLAT_UP_ANGLE, dz.LOG_DEBUG)
logWrite('SLAT_DOWN_ANGLE: ' .. BLINDS[blindId].SLAT_DOWN_ANGLE, dz.LOG_DEBUG)
local TTC_SLAT_SEC = BLINDS[blindId].TTC_SLAT_SEC
local SLAT_MARGING = (BLINDS[blindId].SLAT_UP_ANGLE - BLINDS[blindId].SLAT_DOWN_ANGLE) / BLINDS[blindId].TTC_SLAT_SEC -- choice: it is 1 second = 1 move
--logWrite('SLAT_MARGING ' .. SLAT_MARGING, dz.LOG_FORCE)
local outsideTemp = dz.devices(OUTSIDE_TEMP).temperature
local sunAzimuth = tonumber(dz.devices(SOLAR_AZIMUTH).sValue)
logWrite('sunAzimuth: ' .. sunAzimuth, dz.LOG_DEBUG)
local sunAltitude = tonumber(dz.devices(SOLAR_ALTITUDE).sValue)
logWrite('sunAltitude: ' .. sunAltitude, dz.LOG_DEBUG)
local wBlindNormalAzimuth
local sunRadiationValue, cosIncidence = GetSunRadiation(sunAzimuth, sunAltitude, BLIND_AZIMUTH, BLIND_ANGLE)
local newBlindProgram
local wCold = false
local wHot = false
logWrite('lastBlindProgram ' .. lastBlindProgram .. ' sunRadiationValue ' .. sunRadiationValue .. ' outsideTemp ' .. outsideTemp .. ' cosIncidence ' .. cosIncidence, dz.LOG_DEBUG)
logWrite('Sum+ ' .. MAX_SUN_RADIATION + SUN_RADIATION_MARGING, dz.LOG_DEBUG)
logWrite('Temp+ ' .. MAX_OUTSIDE_TEMP + OUTSIDE_TEMP_MARGING, dz.LOG_DEBUG)
if currentBlindMode == 'Auto' then
logWrite('Auto mode execution')
if (lastBlindProgram == "Cold" and outsideTemp < MIN_OUTSIDE_TEMP + OUTSIDE_TEMP_MARGING) then
newBlindProgram = "Cold"
logWrite('newBlindProgram stay Cold', dz.LOG_DEBUG)
wCold = true -- 01/06/2021
elseif (lastBlindProgram ~= "Cold" and outsideTemp < MIN_OUTSIDE_TEMP - OUTSIDE_TEMP_MARGING) then
newBlindProgram = "Cold"
logWrite('newBlindProgram go Cold', dz.LOG_DEBUG)
wCold = true -- 01/06/2021
end
if (lastBlindProgram == "Hot" and
sunRadiationValue > MAX_SUN_RADIATION - SUN_RADIATION_MARGING and
outsideTemp > MAX_OUTSIDE_TEMP - OUTSIDE_TEMP_MARGING) then -- 22/05/2022
newBlindProgram = "Hot"
logWrite('newBlindProgram stay Hot', dz.LOG_DEBUG)
wHot = true -- 01/06/2021
elseif (lastBlindProgram ~= "Hot" and
sunRadiationValue > MAX_SUN_RADIATION + SUN_RADIATION_MARGING and
outsideTemp > MAX_OUTSIDE_TEMP + OUTSIDE_TEMP_MARGING) then -- 22/05/2022
newBlindProgram = "Hot"
logWrite('newBlindProgram go Hot', dz.LOG_DEBUG)
wHot = true -- 01/06/2021
end
logWrite('wHot ' .. tostring(wHot) .. ' wCold ' .. tostring(wCold), dz.LOG_DEBUG)
if (wCold and wHot) or (not wCold and not wHot) then
newBlindProgram = "Warm"
logWrite('newBlindProgram Warm', dz.LOG_DEBUG)
end
local blindProgramChanged = false
local logAction = '?' -- 06/07/2021
if newBlindProgram ~= lastBlindProgram then
blindProgramChanged = true
logAction = 'changed to '
else
logAction = 'remains on '
end
-- 11/08/2021
logWrite(blindId .. ' ' .. BLIND_NAME .. ' - ' .. currentBlindMode .. ', ' .. logAction .. newBlindProgram .. ' - Outside Temp: ' .. _u.round(outsideTemp,1) .. '/[' .. MIN_OUTSIDE_TEMP .. ' - ' .. MAX_OUTSIDE_TEMP .. ']+/-' .. OUTSIDE_TEMP_MARGING .. ' - Sun criteria: ' .. sunRadiationValue .. '/' .. MAX_SUN_RADIATION .. '+/-' ..
SUN_RADIATION_MARGING, dz.LOG_FORCE)
if lastSlatAngle == nil then -- on Auto mode, if initial position is unknown, the blind is open to get the zero -- move up 01/06/2021
logWrite('lastSlatAngle to init')
lastSlatAngle = InitPosition(devBlind, SLAT_UP_ANGLE)
end
if newBlindProgram == "Hot" then
-- -- comment 01/06/2021
--if lastSlatAngle == nil then -- on Auto mode, if initial position is unknown, the blind is open to get the zero
-- logWrite('lastSlatAngle to init')
--lastSlatAngle = InitPosition(devBlind)
--else
logWrite('Auto Program: ' .. newBlindProgram .. ' / Last Slat Angle '.. lastSlatAngle)
local slatAngleTarget = CalculateSlatAngle(sunAzimuth, sunAltitude, BLIND_AZIMUTH, SLAT_DOWN_ANGLE, SLAT_UP_ANGLE, SOLAR_ALTITUDE_MIN, SLAT_LENGHT, SLAT_DISTANCE, BLIND_ANGLE, BLIND_TYPE, cosIncidence)
if slatAngleTarget == nil then
logWrite(blindId .. ' ' .. BLIND_NAME, dz.LOG_ERROR)
logWrite('sunAzimuth=' .. sunAzimuth, dz.LOG_ERROR)
logWrite('sunAltitude=' .. sunAltitude, dz.LOG_ERROR)
logWrite('BLIND_AZIMUTH=' .. BLIND_AZIMUTH, dz.LOG_ERROR)
logWrite('SLAT_DOWN_ANGLE=' .. SLAT_DOWN_ANGLE, dz.LOG_ERROR)
logWrite('SLAT_UP_ANGLE=' .. SLAT_UP_ANGLE, dz.LOG_ERROR)
logWrite('SOLAR_ALTITUDE_MIN=' .. SOLAR_ALTITUDE_MIN, dz.LOG_ERROR)
logWrite('SLAT_LENGHT"=' .. SLAT_LENGHT, dz.LOG_ERROR)
logWrite('SLAT_DISTANCE"=' .. SLAT_DISTANCE, dz.LOG_ERROR)
logWrite('BLIND_ANGLE"=' .. BLIND_ANGLE, dz.LOG_ERROR)
logWrite('BLIND_TYPE=' .. BLIND_TYPE, dz.LOG_ERROR)
logWrite('cosIncidence=' .. cosIncidence, dz.LOG_ERROR)
slatAngleTarget = SLAT_UP_ANGLE
end
local slateMvt = 0
local lastSlatAngleDelta
slateMvt, lastSlatAngleDelta = CalculateSlatMvt(slatAngleTarget, lastSlatAngle, lastMaxSlatAngle, SLAT_UP_ANGLE, SLAT_DOWN_ANGLE, SLAT_MARGING, TTC_SLAT_SEC) -- mouvement to make to the slates in seconds
MoveSlat(slateMvt, devBlind)
if lastSlatAngleDelta == 999 then -- it is the up position
lastSlatAngle = SLAT_UP_ANGLE
lastMaxSlatAngle = SLAT_UP_ANGLE -- 19/05/2022
elseif lastSlatAngleDelta == -999 then -- it is the down position
lastSlatAngle = SLAT_DOWN_ANGLE
lastMaxSlatAngle = SLAT_DOWN_ANGLE -- 19/05/2022
else
logWrite('lastSlatAngle ' .. lastSlatAngle)
lastSlatAngle = lastSlatAngle + lastSlatAngleDelta
end
--end
elseif newBlindProgram == "Cold" then -- 08/08/2021 - bug! lastBlindProgram changed to newBlindProgram
--local solarAltitude = tonumber(devAltitude.state)
--logWrite("Solar Altitude=" .. tostring(solarAltitude))
--if dz.time.matchesRule('at 17:00-00:30') then -- !!! -> to put in parameters... !!!!!!!!!!!!! 07/06/2022 to try!
--logWrite("timeConditionsClose OK")
if sunAltitude < -8 then
if devBlind.state ~= "Closed" then
devBlind.close()
devBlind.close().afterSec(5).silent() -- twice in case of loss of message
logWrite('Auto Program: ' .. newBlindProgram .. ' / ' .. devBlind.name .. " closing")
end
lastSlatAngle = SLAT_DOWN_ANGLE
lastMaxSlatAngle = SLAT_DOWN_ANGLE -- 19/05/2022
else -- end
--elseif dz.time.matchesRule('at 6:00-12:00') then-- !!! -> to put in parameter
--logWrite("timeConditionsOpen OK")
--if sunAltitude > -8 then
if devBlind.state ~= "Open" then
devBlind.open().silent()
devBlind.open().afterSec(5).silent()
logWrite('Auto Program: ' .. newBlindProgram .. ' / ' .. devBlind.name .. " opening")
end
lastSlatAngle = SLAT_UP_ANGLE
lastMaxSlatAngle = SLAT_UP_ANGLE -- 19/05/2022
end
--end
else -- Warm
--if dz.time.matchesRule('at 6:00-10:00') or blindProgramChanged then
--logWrite("Time to check if it is open")
--local solarAltitude = tonumber(devAltitude.state)
--logWrite("Solar Altitude=" .. tostring(solarAltitude))
if sunAltitude > -8 then
if devBlind.state ~= "Open" then
devBlind.open()
logWrite('Auto Program: ' .. newBlindProgram .. ' / ' .. devBlind.name .. " opening")
end
lastSlatAngle = SLAT_UP_ANGLE
lastMaxSlatAngle = SLAT_UP_ANGLE -- 19/05/2022
end
--end
end
else
newBlindProgram = ''
end
-- < Update global variables if changed
local renameFlag = false
if dz.data.blindMode[blindId] ~= currentBlindMode then
renameFlag = true
logWrite('currentBlindMode changed to ' .. currentBlindMode, dz.LOG_FORCE)
dz.data.blindMode[blindId] = currentBlindMode
else
logWrite('currentBlindMode NOT changed: ' .. currentBlindMode)
end
if dz.data.blindProgram[blindId] ~= newBlindProgram then
renameFlag = true
if newBlindProgram == '' then -- 07/02/2021 clarify log if newBlindProgram is empty
logWrite('newBlindProgram changed to NONE', dz.LOG_FORCE)
else
logWrite('newBlindProgram changed to ' .. newBlindProgram, dz.LOG_FORCE)
end
dz.data.blindProgram[blindId] = newBlindProgram
else
logWrite('newBlindProgram NOT changed: ' .. newBlindProgram)
end
if (dz.data.slatAngle[blindId] ~= lastSlatAngle) then -- 16/08/2021
renameFlag = true
if lastSlatAngle == nil then
logWrite('SlatAngle changed to nul')
else
if lastSlatAngle == SLAT_DOWN_ANGLE then
logWrite(devBlind.name .. ' closes ', dz.LOG_FORCE)
elseif lastSlatAngle == SLAT_UP_ANGLE then
logWrite(devBlind.name .. ' opens ', dz.LOG_FORCE)
else
local newSlatAngle = _u.round(lastSlatAngle,0)
logWrite('Slates of ' .. devBlind.name .. ' move to ' .. newSlatAngle .. '° - ' .. newBlindProgram, dz.LOG_FORCE)
end
end
dz.data.slatAngle[blindId] = lastSlatAngle
dz.data.lastMaxSlatAngle[blindId] = lastMaxSlatAngle -- 19/05/2022
else
if lastSlatAngle == nil then
logWrite('SlatAngle NOT changed: nul')
else
if lastSlatAngle == SLAT_DOWN_ANGLE then
logWrite(devBlind.name .. ' remains closed ')
elseif lastSlatAngle == SLAT_UP_ANGLE then
logWrite(devBlind.name .. ' remains open ')
else
logWrite('Slates of ' .. devBlind.name .. ' remains on ' .. lastSlatAngle .. ' °')
end
end
end
if renameFlag then -- 16/08/2021
local blindRename = BLIND_NAME
if lastSlatAngle == nil then
blindRename = blindRename .. ' (' .. devBlind.state .. ') - ' .. currentBlindMode
else
if lastSlatAngle == SLAT_DOWN_ANGLE then
blindRename = blindRename .. ' (Closed) - ' .. currentBlindMode
elseif lastSlatAngle == SLAT_UP_ANGLE then
blindRename = blindRename .. ' (Open) - ' .. currentBlindMode
else
local newSlatAngle = _u.round(lastSlatAngle,0)
blindRename = blindRename .. ' (' .. newSlatAngle .. '°) - ' .. currentBlindMode
end
end
blindRename = blindRename .. ' ' .. newBlindProgram
devDummyBlind.rename(blindRename)
devDummyBlind.switchSelector(devDummyBlind.level).silent()
end
end
end
}
script updated on 12/06/2022 /!\ Breaking change BLIND_AZIMUTH is now the Azimuth of the normal of the area
script updated on 20/06/2022
You can declare several blinds even if they are not on the same frontage.
In my case, it is set up for 2 blinds:
- a sunshade on a sloping roof
- lames.png (169.15 KiB) Viewed 9136 times
A selector to operate the blind and especially to switch to Auto mode
- Selector.png (24.22 KiB) Viewed 9136 times
- Brise-soleil_26.png (12.71 KiB) Viewed 6996 times
