Siedle HT 611 doorbell notification to Telegram (Shelly 1)

[GeyerA]

Hi, since I missed a couple of delivery services, I enhanced my old Siedle HT 611 to get a notification and picture to Telegram. I now used a Shelly 1 but will also try a Shelly Uni and completely customised solution using optocoupler with ESP8266 (espeasy).

Please make sure that you measure all voltages before; I can just guarantee the numbers for my station!

Preparation of Siedle:

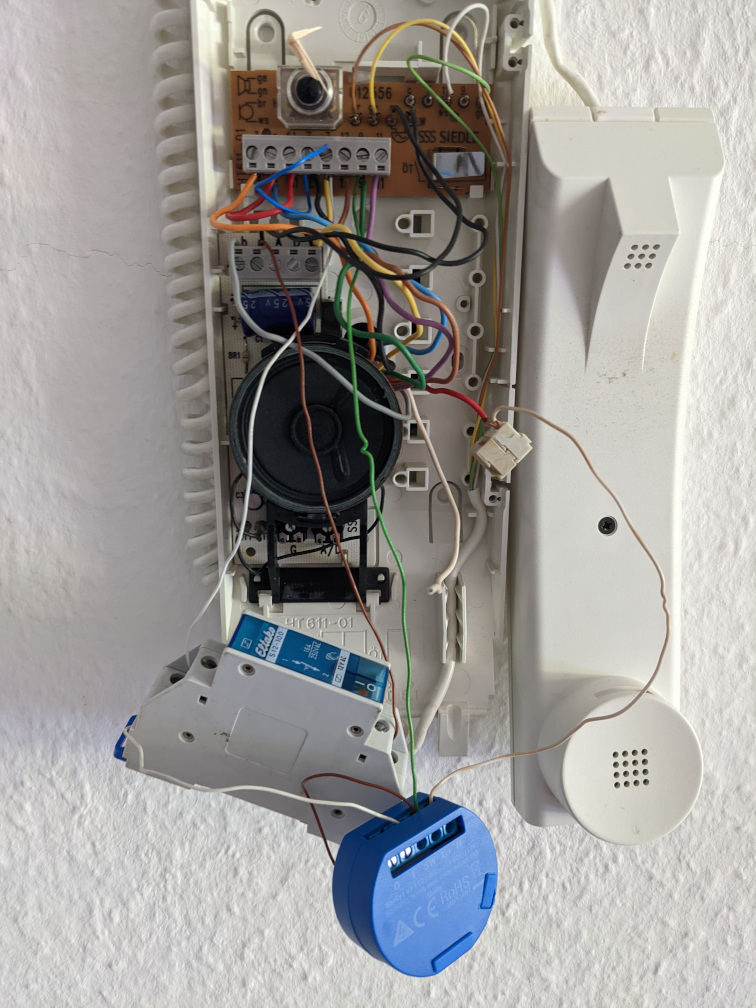

I picked the signal of the ring button and switch a small relay (in the pic is an huge one which will be changed) to bridge the Shelly SW contact. So the relay is switched by the 7 and c contact from the Siedle station. If somebody pushed the doorbell button, the 7/c would jump to 13.2VAC.

Shelly 1:
My rectifier delivers 12VAC and 9VDC and luckily, the Shelly 1 does work with the provided DC power.

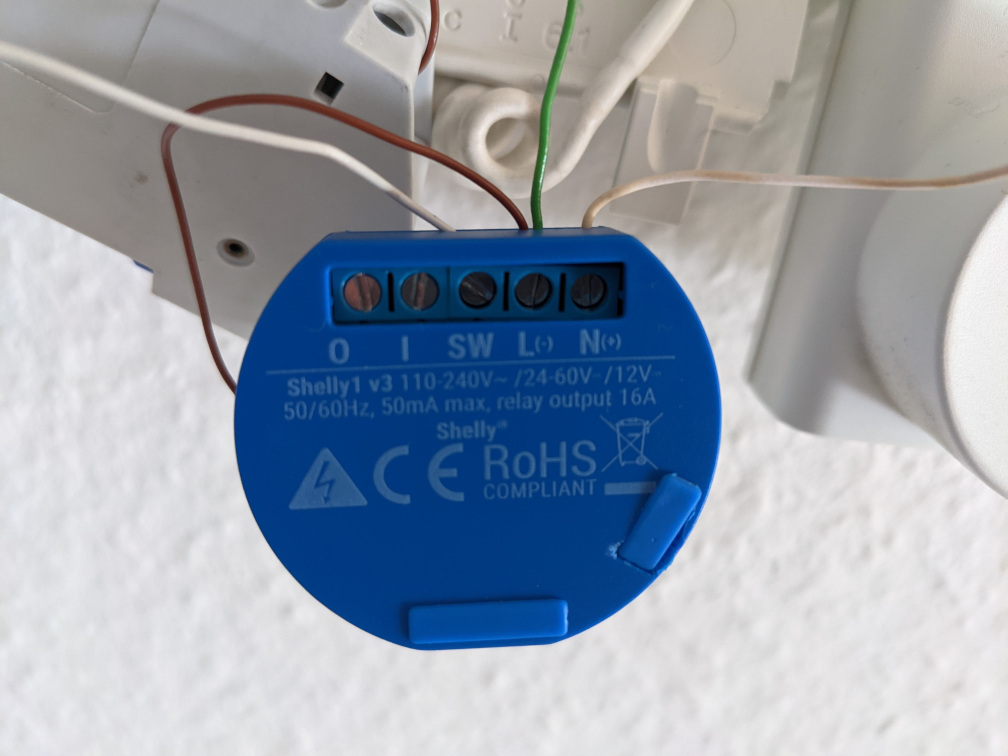

Shelly 1 contact L (-) is connected to 9 (Siedle). One cable from the rectifier is directly delivering 9VDC + which is wired to N (+) (Shelly). Then, a small cable from L (-) is put to the relay and the output signal of relay to SW on the Shelly.

Relay:
As mentioned, the 7/c (13.2VAC) will switch the relay and bridge between the L (-) and SW.

Shelly settings:
I will skip explanations on how to get the Shelly into your network etc. I will just focus on the getting the Domoticz switch to work.

Under Settings:
Power on default mode - "ON" - Configure Shelly device to turn ON, when it has power
Button Type - Edge Switch - Set Shelly device to be "Edge" switch. Changes state on every hit
Timer:
Auto Off - When On - Turn Off After 5 seconds
I/O URL actions:
OUTPUT SWITCHED ON URL:
Enabled
192.168.178.47:8080/json.htm?type=command&parm=switchlight&idx=59&switchcmd=On
OUTPUT SWITCHED OFF URL:
Enabled
192.168.178.47:8080/json.htm?type=command&parm=switchlight&idx=59&switchcmd=Off

Domoticz:
I created a dummy device and added On/Off switch. Note the idx and adjust the idx switched URL above (also IP obviously). I was not able to work with the doorbell switch so if somebody of you got some ideas, would be happy to try/know.

Code (lua script/device) for sending note and pictures to Telegram:
I will also not go through the process of creating a Telegram bot. Hope you have a good reference or maybe some thread in the forum here.
Cameras, also here I assume you already got some cameras in your Domoticz system. Not sure how to get the idx from camera; I made try and error.

I found the script while watching an YouTube video and had to fine tune the POST string since I was not able to make it work using the local bot variable. Credit to HOUSEDOMOTICZ https://sites.google.com/view/housedomo ... authuser=0

Code: Select all

-- service data chat telegram
-- local bot = 'xxxxxxxxxx';   -- Telegram Bot ID
local token = 'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx;   -- Telegram Bot Token
local chatId = 'xxxxxxxxx';   -- Telegram Chat ID
local message = 'Doorbell';   -- message subject

commandArray = {}
if (devicechanged['Doorbell'] == 'On') then -- example for sensor state

-- save snapshot in temporary location
os.execute('wget http://127.0.0.1:8080/camsnapshot.jpg?idx=4 && mv camsnapshot.jpg?idx=4 /var/tmp/snapshot4.jpg')
os.execute('wget http://127.0.0.1:8080/camsnapshot.jpg?idx=3 && mv camsnapshot.jpg?idx=3 /var/tmp/snapshot3.jpg')

-- send snapshot to Telegram
-- os.execute('curl -s -X POST "https://api.telegram.org/bot'..bot..':'..token..'/sendPhoto" -F chat_id='..chatId..' -F photo="@/var/tmp/snapshot.jpg " -F caption='..message..' ')
os.execute('curl -s -X POST "https://api.telegram.org/bot'..token..'/sendPhoto?chat_id='..chatId..'" -F photo="@/var/tmp/snapshot4.jpg"')
os.execute('curl -s -X POST "https://api.telegram.org/bot'..token..'/sendPhoto?chat_id='..chatId..'" -F photo="@/var/tmp/snapshot3.jpg" -F caption='..message..' ')

end
return commandArray

Have a look at the pictures and let me know if I can improve the switch to doorbell since I tried all conditions in the Shelly and did not get it to work in a better way especially because the auto-off in the Shelly will need to switch of my sensor in Domoticz. I have no clue how to do this with the doorbell switch.

I will update the thread once I was able to use the ESP8266 just to see if I can save some space to put all into the existing Siedle housing.

[GeyerA]

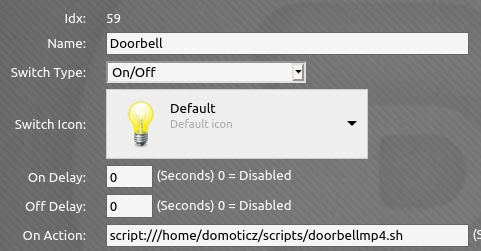

Hi, I removed the domoticz script and replaced it with a bash file which is triggered just when the switch is changing state to ON. With the lua script I experienced delay in taking the photo and might have not captured the person ringing the doorbell.
I also added a mp4 stream sent to Telegram. I now get a high resolution jpg and 8sec mp4 video....
Credit to the guys in this thread viewtopic.php?f=28&t=12730

doorbellmp4.sh

Code: Select all

#!/bin/sh
now=$(date +"%T")

SnapFileJPG="/var/tmp/frontdoor.jpg"
SnapFile="/var/tmp/frontdoorcam.mp4"    # Temp name of the video, change it when using this script for multiple cams
VideoLength=8     # Seconds to record
WaitTime=10       # Seconds the script waits before it sends another video
User=xxxxxx         # Username which has access to the RTSP stream
Password=xxxxxxx   # Password for above provided user
rtspUrl="rtsp://$User:[email protected]:8096/videoSub"   # Use https://sourceforge.net/projects/onvifdm/ to find your correct RTSP stream url
ChatID=xxxxxxxxxx    # Telegram chat ID   See https://www.domoticz.com/wiki/Installing_Telegram_Notification_System for setup instructions
TelegramAPIToken=xxxxxxxxxxxxxxxxxxxxxxxxxxx-xxxxxxxxxxxxx     # Telegram API token

filedate=`stat -L --format %Y $SnapFile`
retc=$?
if [ $retc -eq 0 ] ; then
        sec=$(( `date +%s`-$filedate))
        echo file found and age is $sec seconds
else
        sec=999
        echo File not found $SnapFile
fi
if [ $sec -gt $WaitTime ] ; then
        echo file older than $WaitTime seconds:  $sec sending video
wget http://127.0.0.1:8080/camsnapshot.jpg?idx=4 && mv camsnapshot.jpg?idx=4 /var/tmp/frontdoor.jpg
curl -s -F chat_id=$ChatID -F photo="@$SnapFileJPG" https://api.telegram.org/bot$TelegramAPIToken/sendPhoto

ffmpeg -y -i $rtspUrl -r 30 -vcodec copy -an -t $VideoLength $SnapFile
curl -s -F chat_id=$ChatID -F video="@$SnapFile" -F caption="Doorbell ringing.." https://api.telegram.org/bot$TelegramAPIToken/sendVideo
else
        echo There was another try within $WaitTime seconds: $sec
fi


[GeyerA]

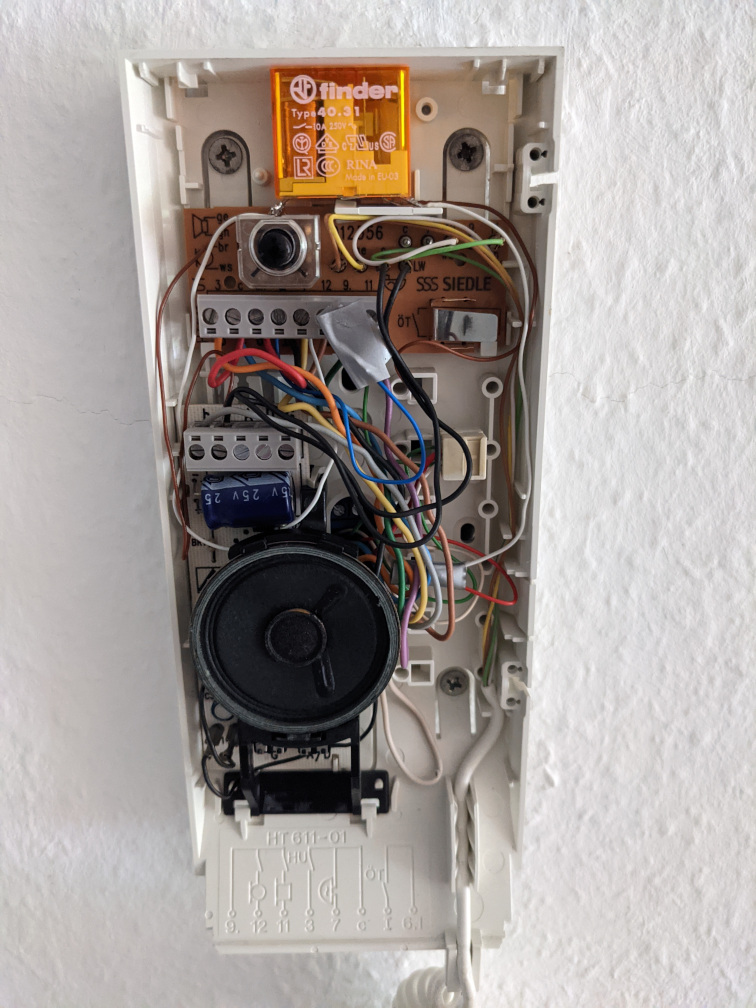

Hi, I just wanted to share the final assembly. Found a small 12AC Finder relay and put the Shelly into the flush box behind the handset. I am surprised on the stable operation of the Shelly on 9VDC.
Just to be complete, I also tried two other solutions:
1. Shelly UNI. Works as the Shelly1 and despite the extremely small size, it could even perform much more tasks. I prefer to use that one for more complex jobs.
2. ESP8266 (flashed espeasy) and DC to DC converter (3.3V). Was also working well however needed to add a rule to drop the switch signal and envelope was too larger so I could not have mounted inside the doorbell handset.

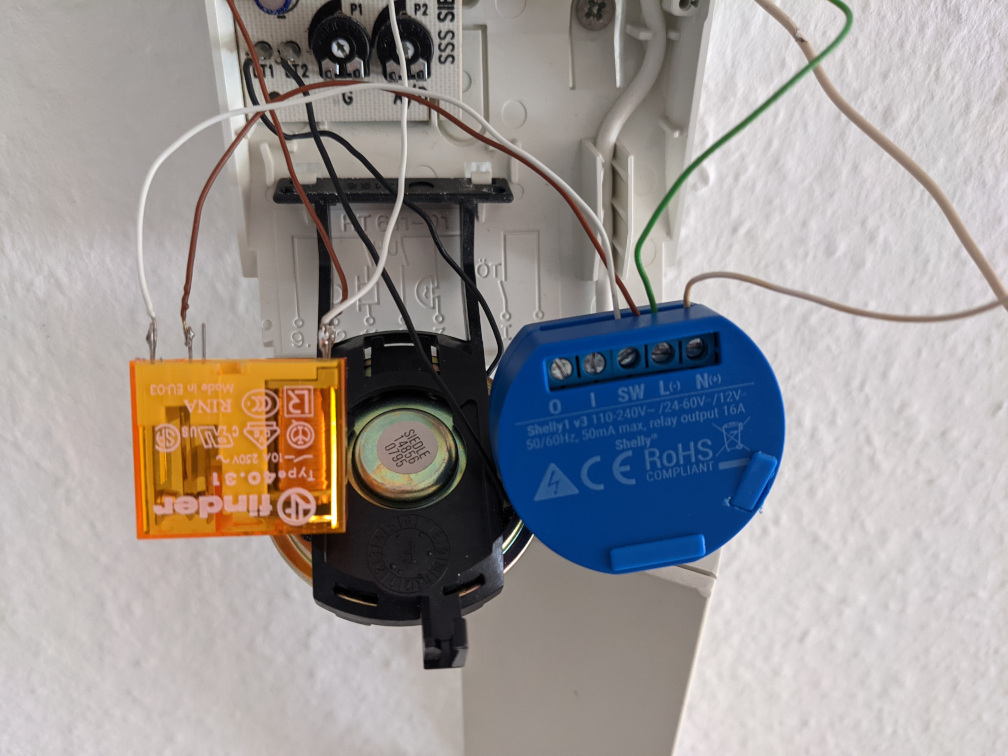

Small relay.jpg (220.99 KiB) Viewed 1710 times

Final assembly.jpg (257.51 KiB) Viewed 1710 times
