Smartthings integration to domoticz Topic is solved

[tontze]

Hello @tontze

You said:

Nope. your example didn't work, but i figured it out from your example and from my earlier inject node. This is working:

I was not sure about the example in the Smartthings documentation.
I already said:

I found the msg.topic quite confusing.
So, as I'm not sure either msg.topic should be set to "switch" or msg.payload.topic should be set to "switch" or or both.
I configured them both, just to be sure.

But perfect, that it is working now.

I have one small remark to your code.
The first line of your code shows:

var msg = {

and if you click in the function node you will see a small yellow triangle with the text: 'msg' is already defined.
It is not necessary to declare the variable msg, as this is already done (by default).

So the contents of the function node should become:

Code: Select all

msg = {
    topic: "switch",
    payload: {
        value: msg.payload.nvalue
    }
}
return msg;

It is working now I can switch smartthings switch from domoticz Now just need to make it other way around

Can you operate the lamp, connected to the Smartthings node, and see if something is shown in the last "Debug"node.

Or if this is not possible can you test the following flow:

Code: Select all

[{"id":"7c7791de.29521","type":"inject","z":"4e92e308.9bb32c","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":180,"y":280,"wires":[["b994970e.927188"]]},{"id":"b6f73d8f.ef4cc8","type":"smartthings-node-onoff","z":"4e92e308.9bb32c","conf":"666c7bf2.c25414","name":"Kitchen Lights","device":"e162c5c6-80d2-46e1-aaef-741a39f934fe","x":640,"y":280,"wires":[["635ae9af.854d9"]]},{"id":"b994970e.927188","type":"function","z":"4e92e308.9bb32c","name":"Function Kitchen Light","func":"msg = {\n    topic: \"update\",\n}\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","x":400,"y":280,"wires":[["b6f73d8f.ef4cc8"]]},{"id":"635ae9af.854d9","type":"debug","z":"4e92e308.9bb32c","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","statusVal":"","statusType":"auto","x":850,"y":280,"wires":[]},{"id":"666c7bf2.c25414","type":"smartthings-config","name":"ST","token":"xxx"}]

I expect you will see, something like:




If this is the case, can you test the following flow:

Connect the output of the Smartthings node to the input of the "Function" node.
And configure the MQTT output node, according to your configuration.

Code: Select all

[{"id":"191ec999.485656","type":"function","z":"4e92e308.9bb32c","name":"","func":"if (msg.payload.value === 1 )\n{\nmsg.payload = { \"command\": \"switchlight\", \"idx\": 11, \"switchcmd\": \"On\" };\n}\nelse if ( msg.payload.value === 0 )\n{\nmsg.payload = { \"command\": \"switchlight\", \"idx\": 11, \"switchcmd\": \"Off\" };\n}\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","x":1040,"y":100,"wires":[["d805ccf1.c0753"]]},{"id":"d805ccf1.c0753","type":"mqtt out","z":"4e92e308.9bb32c","name":"","topic":"domoticz/in","qos":"1","retain":"false","broker":"f9f13036.e28b58","x":1230,"y":100,"wires":[]},{"id":"f9f13036.e28b58","type":"mqtt-broker","name":"localhost","broker":"127.0.0.1","port":"1883","clientid":"","usetls":false,"compatmode":true,"keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthRetain":"false","birthPayload":"","closeTopic":"","closeQos":"0","closePayload":"","willTopic":"","willQos":"0","willPayload":""}]

Awaiting your response,

Regards

Operating switch manually, doesnt bring anything to the debug window, your flow gives this :


[FireWizard]

Hello @tontze,

Operating switch manually, doesnt bring anything to the debug window

This shows that currently no payload is sent by the Smartthings node.
Can you change the settings of the "Debug" node, to show "the complete message object"?
Test it with both Lamp ON and Lamp OFF.

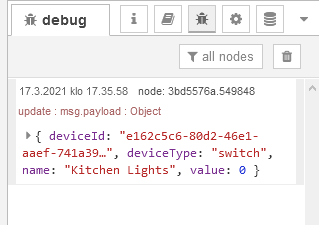

your flow gives this

This is the same as my test flow.

Can you run this flow with both Lamp ON and Lamp OFF.

Regards

[tontze]

Hm, i thin there is a bug in this :

https://github.com/otaviojr/node-red-co ... /issues/47

It says nodes state should be updated via webhooks automatically, but it does not :/

[FireWizard]

Hello @tontze

Okay, that explains, why we get an old value

Obviously it is only on/off switch not updating. Do you have something else we can try?

Regards

[tontze]

Heh, i rebooted nodered machine and it started working, dunno what was wrong, but now when i turn lights on from the actual switch i do get :


[FireWizard]

Hello @tontze

Heh, i rebooted nodered machine and it started working, dunno what was wrong, but now when i turn lights on from the actual switch i do get

Strange, normally it's not necessary to reboot the Node Red hardware in case of a change in the flow.

However, I saw that you changed the picture.
The previous picture showed 4 times the same message, this one shows only 2 messages.

Does this mean that you now receive only 2 messages?

Could have multiple reasons.

1. Do you have MQTT loop activated?
("Prevent loop" setting in MQTT hardware)

2. Which Domoticz version are you running?
Stable version? Or latest beta?

Can you now test this flow:

Code: Select all

[{"id":"191ec999.485656","type":"function","z":"4e92e308.9bb32c","name":"","func":"if (msg.payload.value === 1 )\n{\nmsg.payload = { \"command\": \"switchlight\", \"idx\": 11, \"switchcmd\": \"On\" };\n}\nelse if ( msg.payload.value === 0 )\n{\nmsg.payload = { \"command\": \"switchlight\", \"idx\": 11, \"switchcmd\": \"Off\" };\n}\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","x":1040,"y":100,"wires":[["d805ccf1.c0753"]]},{"id":"d805ccf1.c0753","type":"mqtt out","z":"4e92e308.9bb32c","name":"","topic":"domoticz/in","qos":"1","retain":"false","broker":"f9f13036.e28b58","x":1230,"y":100,"wires":[]},{"id":"f9f13036.e28b58","type":"mqtt-broker","name":"localhost","broker":"127.0.0.1","port":"1883","clientid":"","usetls":false,"compatmode":true,"keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthRetain":"false","birthPayload":"","closeTopic":"","closeQos":"0","closePayload":"","willTopic":"","willQos":"0","willPayload":""}]

Awaiting your response.

Regards

[pgielen]

Would you be OK if someone translates your blog and add the translated article to the domoticz wiki?

Yes, that is fine. A link to the blog would be appreciated!

Pierre

[tontze]

Hello @tontze

Heh, i rebooted nodered machine and it started working, dunno what was wrong, but now when i turn lights on from the actual switch i do get

Strange, normally it's not necessary to reboot the Node Red hardware in case of a change in the flow.

However, I saw that you changed the picture.
The previous picture showed 4 times the same message, this one shows only 2 messages.

Does this mean that you now receive only 2 messages?

Could have multiple reasons.

1. Do you have MQTT loop activated?
("Prevent loop" setting in MQTT hardware)

2. Which Domoticz version are you running?
Stable version? Or latest beta?

Can you now test this flow:

Code: Select all

[{"id":"191ec999.485656","type":"function","z":"4e92e308.9bb32c","name":"","func":"if (msg.payload.value === 1 )\n{\nmsg.payload = { \"command\": \"switchlight\", \"idx\": 11, \"switchcmd\": \"On\" };\n}\nelse if ( msg.payload.value === 0 )\n{\nmsg.payload = { \"command\": \"switchlight\", \"idx\": 11, \"switchcmd\": \"Off\" };\n}\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","x":1040,"y":100,"wires":[["d805ccf1.c0753"]]},{"id":"d805ccf1.c0753","type":"mqtt out","z":"4e92e308.9bb32c","name":"","topic":"domoticz/in","qos":"1","retain":"false","broker":"f9f13036.e28b58","x":1230,"y":100,"wires":[]},{"id":"f9f13036.e28b58","type":"mqtt-broker","name":"localhost","broker":"127.0.0.1","port":"1883","clientid":"","usetls":false,"compatmode":true,"keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthRetain":"false","birthPayload":"","closeTopic":"","closeQos":"0","closePayload":"","willTopic":"","willQos":"0","willPayload":""}]

Awaiting your response.

Regards

Yeah, it is working Nice ! Now domoticz and smartthings are synced Thank you very much FireWizard !

[tontze]

Hello firewizard, im returning here, as im trying to add different kind of sensors now

I havent been able to do so, i dont know how to parse input and how to msg it to mqtt :/ Been following many examples, but i cant get hold of it

Also, smartthings palette separates temp&humidity sensor in to two different nodes, temp and humidity. How do i get these both infused together for one temp&humidity dummy in domoticz ?

These are what i see from those nodes :


Thanks in advance.

[FireWizard]

Hello @tontze

Okay, let us try and let me explain.

i don't know how to parse input

I see that you receive two different messages from the same device (b03ba40a-2108-43a0-ab16-b52611), but with two different deviceTypes (temperature and humidity), name is less important (kitchen in Finnish, but that is your choice) and of course the values and unit.

I will put these values in an "Inject" node to simulate your source.

Also, smartthings palette separates temp&humidity sensor in to two different nodes, temp and humidity. How do i get these both infused together for one temp&humidity dummy in domoticz ?

It is not really two different nodes, but two different messages.

These messages should be merged into one message and therefore we will use a "Join" node.


The upper "Inject" node injects the temperature message in the same format as you provided in your previous post, while the lower "Inject"node does the same, but for humidity. The results, you can see at the very right side in the upper two debug messages.
(I have translated the Finnish "Kitchen" to the "English" Kitchen)

The result of the "Join" action you see in the last message in the Debug pane. As you can see, both are combined in one object.

You see that the result is a command to Domoticz with the svalue, containing your temperature, your humidity and the calculated comfort_level, separated by semicolons.
Do not forget to connect the "MQTT Output" node to the "Function" node.

The configuration of the "Join" node is as follows:


Well, we have to combine two payloads and we create a key/value object. We use the msg.payload.deviceType as the key.
We send our first message out, as soon as we have received 2 messages (preferable both temperature and humidity) and then every message will update the output.

How do i get these both infused together for one temp&humidity dummy in domoticz?

Each sensor in Domoticz requires its own format. You can find these formats in:
https://www.domoticz.com/wiki/Domoticz_ ... 2Fhumidity

I like also this overview: https://piandmore.wordpress.com/2019/02 ... -domoticz/

I created several examples to send to the various devices in Domoticz in this thread:
viewtopic.php?f=28&t=34300&p=263147&hil ... er#p263147
Have a look of my post December 9, 2020.

The sensor you have chosen (Temperature and Humidity) is a little special in the respect that beside the two values of Temperature and Humidity, a third value (Comfort_ level) is required. Of course it is possible to take "0" as a fixed value, but I have included a function to calculate the value.

The conversion to the required Domoticz format is done in a "Function" node.

The content of the node is as follows:

Code: Select all

// This function sorts the comfort level for Domoticz based on the humidity.

function comfortlevel(hum) {

switch (true) {
    case hum > 70: { hum_stat = 3 } break;
    case hum < 30: { hum_stat = 2 } break;
    case hum >= 30 && hum <= 45: { hum_stat = 0 } break;
    case hum > 45 && hum <= 70: { hum_stat = 1 } break;
    default: { hum_stat = 0 } break;
}
return hum_stat;
}

msg.payload = {"command":"udevice", "idx":1234, "svalue":msg.payload.temperature.value + ";" + msg.payload.humidity.value + ";" + comfortlevel(msg.payload.humidity.value)};
return msg;

Do not forget to replace the IDX (1234) with your idx number of the sensor.

The flow looks as follows:


Please find the complete flow below:

Code: Select all

[{"id":"e511f64f.4e2bf8","type":"inject","z":"808049fb.fb404","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{\"deviceId\":\"b03ba40a-2108-43a0-ab16-b52611...\",\"deviceType\": \"temperature\", \"name\": \"Kitchen\",\"value\":24.6,\"unit\": \"C\"}","payloadType":"json","x":530,"y":240,"wires":[["cea81498.5e7d9"]]},{"id":"b2483e9f.d10fe","type":"inject","z":"808049fb.fb404","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{\"deviceId\":\"b03ba40a-2108-43a0-ab16-b52611...\",\"deviceType\": \"humidity\", \"name\": \"Kitchen\",\"value\":48,\"unit\": \"%\"}","payloadType":"json","x":530,"y":320,"wires":[["cea81498.5e7d9"]]},{"id":"cea81498.5e7d9","type":"join","z":"808049fb.fb404","name":"","mode":"custom","build":"object","property":"payload","propertyType":"msg","key":"payload.deviceType","joiner":"\\n","joinerType":"str","accumulate":true,"timeout":"","count":"2","reduceRight":false,"reduceExp":"","reduceInit":"","reduceInitType":"","reduceFixup":"","x":690,"y":280,"wires":[["cea3658b.00763"]]},{"id":"cea3658b.00763","type":"function","z":"808049fb.fb404","name":"","func":"// This function sorts the comfort level for Domoticz based on the humidity.\n\nfunction comfortlevel(hum) {\n    \nswitch (true) {\n    case hum > 70: { hum_stat = 3 } break;\n    case hum < 30: { hum_stat = 2 } break;\n    case hum >= 30 && hum <= 45: { hum_stat = 0 } break;\n    case hum > 45 && hum <= 70: { hum_stat = 1 } break;\n    default: { hum_stat = 0 } break;\n}\nreturn hum_stat;\n}\n\nmsg.payload = {\"command\":\"udevice\", \"idx\":1234, \"svalue\":msg.payload.temperature.value + \";\" + msg.payload.humidity.value + \";\" + comfortlevel(msg.payload.humidity.value)};\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","x":860,"y":280,"wires":[["63f49ea5.880bd8"]]},{"id":"63f49ea5.880bd8","type":"debug","z":"808049fb.fb404","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":1050,"y":240,"wires":[]},{"id":"87a563e0.3dbde8","type":"mqtt out","z":"808049fb.fb404","name":"","topic":"domoticz/in","qos":"","retain":"","broker":"8591549f.77809","x":1050,"y":280,"wires":[]},{"id":"8591549f.77809","type":"mqtt-broker","name":"Jonas_MQTT_Server","broker":"192.168.10.24","port":"1883","clientid":"","usetls":false,"compatmode":true,"keepalive":"60","cleansession":true,"birthTopic":"","birthQos":"0","birthPayload":"","closeTopic":"","closeQos":"0","closePayload":"","willTopic":"","willQos":"0","willPayload":""}]

I suggest try it and if any questions, I like to hear it.

Regards

[FireWizard]

Hello @tontze,

And if you connect the MQTT output node, you should see:


Regards

[tontze]

Well, what can i say, it just works Maybe i learn it some day, i have no coding skill at all, so this is hard to understand.
Again, thank you very much !

[tontze]

Im a bit puzzled here, why isnt this changing TEMP only dummy in domoticz : ?

Code: Select all

[{"id":"9eadc808.4fdfd8","type":"function","z":"e1366dff.7c47f8","name":"","func":"msg.payload = {\"command\":\"udevice\", \"idx\":26, \"nvalue\":0, \"svalue\":msg.payload.value};\nreturn msg;\n","outputs":1,"noerr":0,"initialize":"","finalize":"","x":1040,"y":440,"wires":[["b72a581a.148968"]]}]

I can see in domoticz logs :

Code: Select all

 2021-03-27 14:54:06.005 MQTT: Topic: domoticz/in, Message: {"command":"udevice","idx":26,"nvalue":0,"svalue":23.3}
2021-03-27 14:54:06.005 Error: MQTT: Invalid data received!

?

[FireWizard]

Hello @tontze

I have no idea, what you mean with

Im a bit puzzled here, why isnt this changing TEMP only dummy in domoticz : ?

What I see in your node is the following:

Code: Select all

msg.payload = {"command":"udevice", "idx":26, "nvalue":0, "svalue":msg.payload.value};
return msg;

A few things are important.

1. Where does the data come from.
In my example it came from: msg.payload.temperature.value but in your example it comes from msg.payload.value.
So this is another source.

2. Another thing is also important. svalue requires a string.
Check always that you send a string (between " "). If it is a number (value in blue) add at the end of each value .toString().

3. In your log file, the incoming data message looks not okay. I see at the end 23.3 where I should expect "23.3".

4. It is important that you send the data according to what the configured virtual sensor expects.
In my example the Temperature/Humidity sensor expects 3 parameters. In that case you should send 3 parameters.
If one parameter is not available, send a "0", but send always the number of parameters, as required by the sensor.

I do not know to which sensor you want to send this data, but let's assume it is the temperature sensor.
This sensor expects only the temperature value as a string (1 parameter).

So test the following in the function node:

Code: Select all

msg.payload = {"command":"udevice", "idx":26, "nvalue":0, "svalue":msg.payload.value.toString()};
return msg;

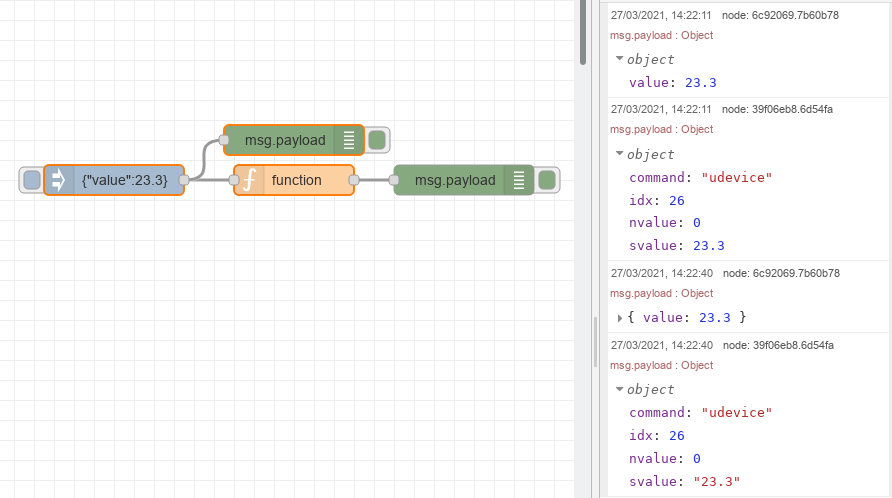

See picture below:


Do you see the difference regarding the svalue?
The upper one is a number and the lower one a string.
The lower works in Domoticz, the upper one not.

Regards

[tontze]

Hello @tontze

I have no idea, what you mean with

Im a bit puzzled here, why isnt this changing TEMP only dummy in domoticz : ?

What I see in your node is the following:

Code: Select all

msg.payload = {"command":"udevice", "idx":26, "nvalue":0, "svalue":msg.payload.value};
return msg;

A few things are important.

1. Where does the data come from.
In my example it came from: msg.payload.temperature.value but in your example it comes from msg.payload.value.
So this is another source.

2. Another thing is also important. svalue requires a string.
Check always that you send a string (between " "). If it is a number (value in blue) add at the end of each value .toString().

3. In your log file, the incoming data message looks not okay. I see at the end 23.3 where I should expect "23.3".

4. It is important that you send the data according to what the configured virtual sensor expects.
In my example the Temperature/Humidity sensor expects 3 parameters. In that case you should send 3 parameters.
If one parameter is not available, send a "0", but send always the number of parameters, as required by the sensor.

I do not know to which sensor you want to send this data, but let's assume it is the temperature sensor.
This sensor expects only the temperature value as a string (1 parameter).

So test the following in the function node:

Code: Select all

msg.payload = {"command":"udevice", "idx":26, "nvalue":0, "svalue":msg.payload.value.toString()};
return msg;

See picture below:



Do you see the difference regarding the svalue?
The upper one is a number and the lower one a string.
The lower works in Domoticz, the upper one not.

Regards

I meant, i have TEMPERATURE dummy in domoticz, and was puzzled why it didnt work I do now. I have a steep learning curve here )
