Controlling Toon [HACKED] from Domoticz

[Jasper79]

Then I might be doing something wrong again.
The energy usage is much more than I really did.



Maybe I'm using the solar data instead or it's calculated the other way round instead.

[madpatrick]

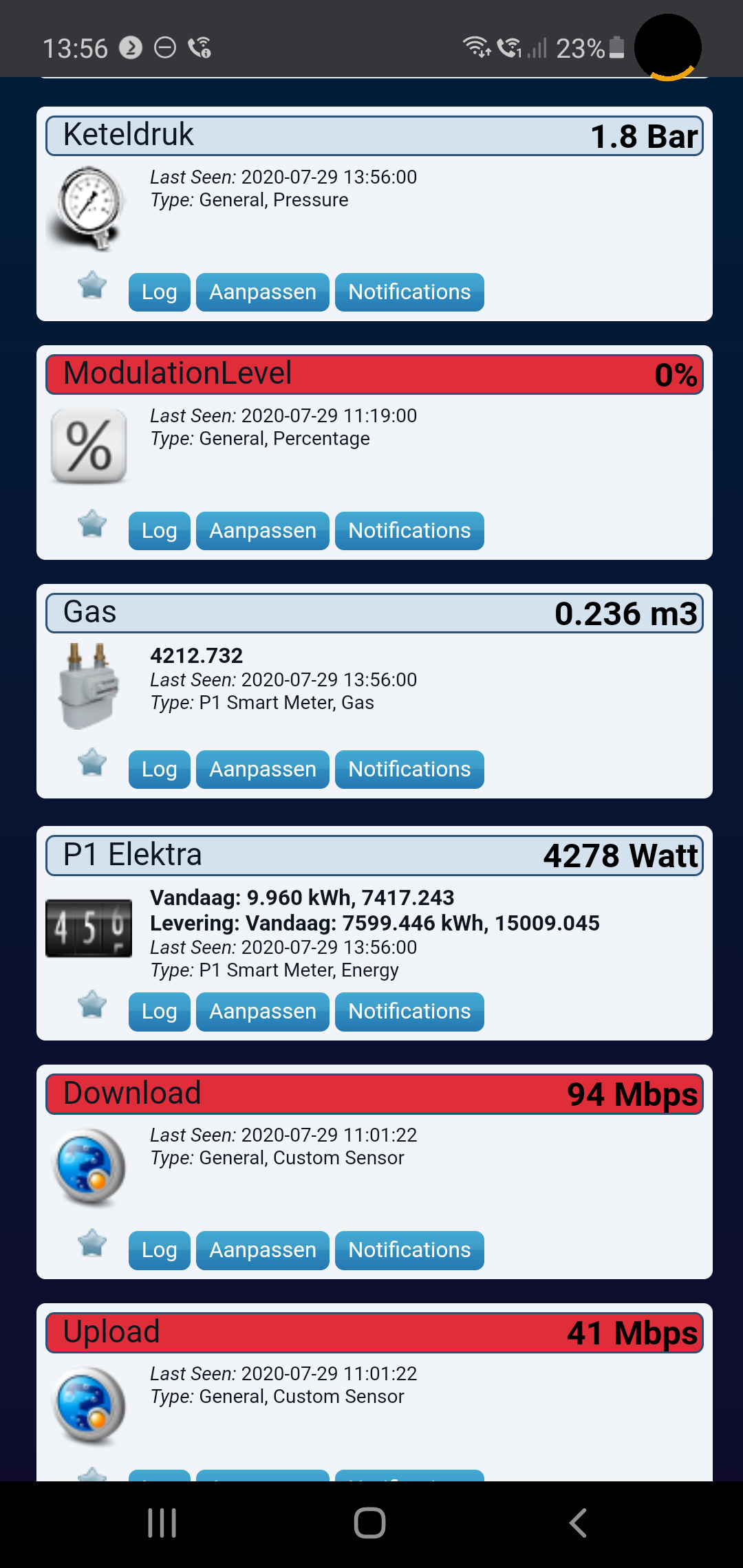

This is the screenshot of my P1 meter

[Jasper79]

I also have Solaredge though the api plugin does not show me the current watts.

Today I deleted all UV's and devices because it still wasn't showing like your screenshot.
Added them all back from the link you provided earlier and now I do have some values now and will have to wait to see if it will be okay.
For now it does not show any electricity usage or delivery form the solar pannels.

For the missing items in the Solaredge API I wil search for the topic and ask there.

[Jasper79]

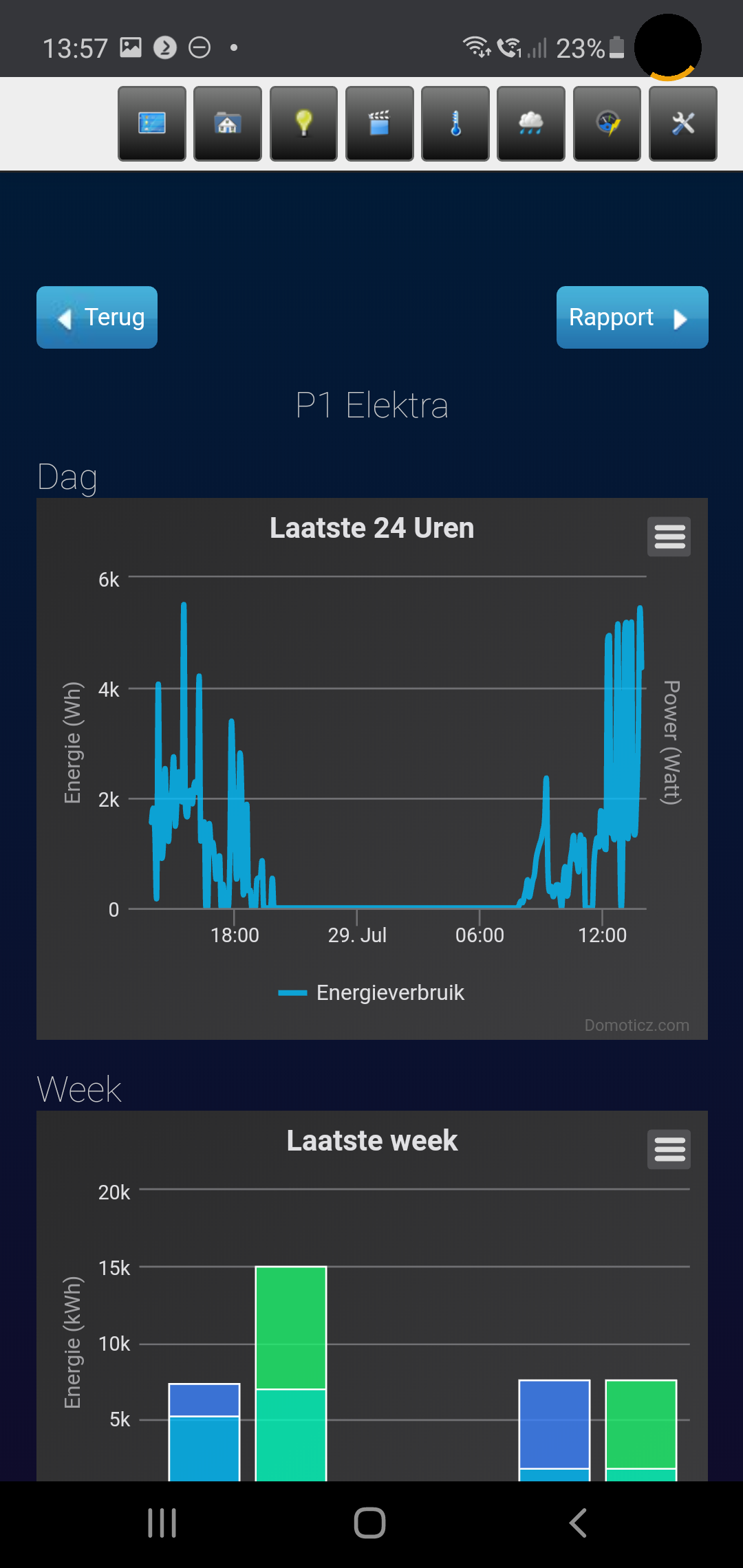

Watching the graph today tells me that I still have the wrong date.
If it wasn't for the solar panels I would have the right data, now during sunshine I have a flat line, and when sundown it show the right amount.

So probably I'm reading bought energy only instead of the used energy.
To get this right I think I need another set of data coming from the Toon Zon meter adapter.

[Jasper79]

Just received a wemos shield for reading the meter values directly so think I'll go that way.

[StevenHoogslag]

Hello Jasper,

Do you have Wemos hardware for access to Toon (version 2020) data or slimme meter data?

[Jasper79]

Right now I'm using a wemos to read P1 data instead of the Toon data.

[senadj]

Followed the NL manual. I now have an error:
2020-09-11 12:44:13.602 Error: EventSystem: problem writing file: C:\Program Files (x86)\Domoticz\scripts\dzVents\generated_scripts\Toon Setpoint.lua
2020-09-11 12:44:13.617 Error: EventSystem: problem writing file: C:\Program Files (x86)\Domoticz\scripts\dzVents\generated_scripts\Toon.lua
What am I doing wrong?
I can now only operate Toon Scenes. The rest will not work.

[Jasper79]

I can control Toon from Domoticz though I'd like to expand the features.

What I would like is that when the temperature is manually changed a timer should start and after 30 min the auto program is set again.

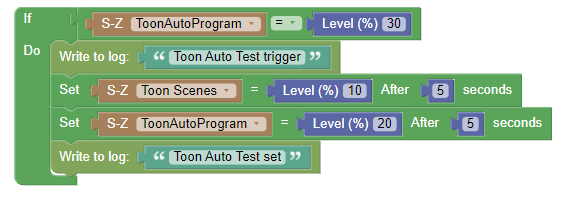

I created a blockly which does nothing whatever I tried.

Toon auto.png (16.41 KiB) Viewed 1459 times

Even the log part doesn't show up.

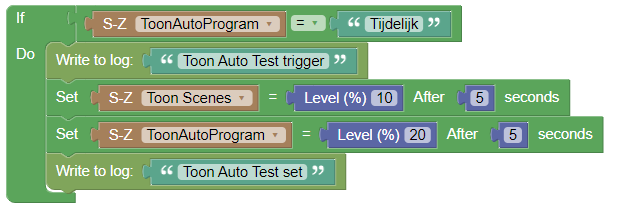

I tried the 30% and also number 30 as well as text Tijdelijk and I can't find the script running.
Used Device and Timer.

Some help please,.

[Jasper79]

5 seconds are for testing of course, so I don't have to wait for half an hour

[Jasper79]

Been trying some more .

When I have a dummy switch and the Toon Scene at 50% the dummy does not turn on.

When swapping the dummy switch to trigger and the scene as set the scene changes when triggering the switch.

Why can't the scene work as a trigger?

Toon auto test.png (5.99 KiB) Viewed 1435 times

[Larsoss]

Hello,

Since this morning (while I was working) I keep getting these messages.
So I haven't changed anything, and I would like your help to diagnose and fix the problem.
What can I try?

2020-10-15 16:21:00.682 Error: dzVents: Error: (3.0.2) -=# P1 Toon #=-: An error occurred when calling event handler Toon_script
2020-10-15 16:21:00.682 Error: dzVents: Error: (3.0.2) -=# P1 Toon #=-: ...moticz/scripts/dzVents/generated_scripts/Toon_script.lua:68: attempt to perform arithmetic on a nil value (local 'CurrentElectricityFlowLaag')

I also quickly restored a backup DB from 2 days ago, but even then I immediately get the message ..

Domoticz version = 2020.2 and Toon (root) version is 5.33.9

[waaren]

2020-10-15 16:21:00.682 Error: dzVents: Error: (3.0.2) -=# P1 Toon #=-: An error occurred when calling event handler Toon_script
2020-10-15 16:21:00.682 Error: dzVents: Error: (3.0.2) -=# P1 Toon #=-: ...moticz/scripts/dzVents/generated_scripts/Toon_script.lua:68: attempt to perform arithmetic on a nil value (local 'CurrentElectricityFlowLaag')

There are quite a number of versions flying around on this and other fora. So please share the script you use now.

Generally speaking debugging start with switch the log to debug. In most dzVents scripts you can do that by changing domoticz.LOG_INFO or domoticz.LOG_ERROR to domoticz.LOG_DEBUG in the logging section.

[Larsoss]

Probably found it already. I pulled my cables out of the P1 meter 1x, and then plugged them in again.

Code: Select all

return {
   logging = {
      level = domoticz.LOG_FORCE, -- Select one of LOG_INFO, LOG_DEBUG, LOG_ERROR, LOG_FORCE to override system log level
      marker = "-=# P1 Toon #=-"
},
   on = {
      timer = {
         'every minute'
      }
   },
   execute = function(domoticz)
        local ToonThermostat        = domoticz.variables('UV_ToonThermostat').value -- Sensor showing current setpoint
        local ToonTemperature       = domoticz.variables('UV_ToonTemperature').value -- Sensor showing current room temperature
        local ToonBoilerTempIn      = domoticz.variables('UV_ToonBoilerTempIn').value -- Sensor showing water temp return
        local ToonBoilerTempOut     = domoticz.variables('UV_ToonBoilerTempOut').value -- Sensor showing current water temp out
        local ToonBoilerPressure    = domoticz.variables('UV_ToonBoilerPressure').value -- Sensor showing current room temperature
        local ToonBoilerModulation  = domoticz.variables('UV_ToonBoilerModulation').value -- Sensor showing current Boiler Modulation
        local ToonScenes            = domoticz.variables('UV_ToonScenes').value -- Sensor showing current program
        local ToonAutoProgram       = domoticz.variables('UV_ToonAutoProgram').value -- Sensor showing current auto program status
        local ToonProgramInformation = domoticz.variables('UV_ToonProgramInformation').value -- Sensor showing displaying program information status
        local ToonIP                = domoticz.variables('UV_ToonIP').value
        local DomoticzIP            = domoticz.variables('UV_DomoticzIP').value
        local ToonBurnerName        = domoticz.variables('UV_ToonBurnerName').value
        local P1SmartMeterPower     = domoticz.variables('UV_P1SmartMeterElectra').value
        local P1SmartMeterGas1      = domoticz.variables('UV_P1SmartMeterGasMeterStand').value
        local ToonBoilerSetpoint    = domoticz.variables('UV_ToonBoilerTempSetpoint').value  -- Sensor showing current boiler set point water temp out

-- Handle json
        local json = assert(loadfile "/home/pi/domoticz/scripts/lua/JSON.lua")()  -- For Linux
    -- json = (loadfile "/home/pi/domoticz/scripts/lua/JSON.lua")() -- test
    --    local json = assert(loadfile "/var/domoticz/scripts/lua/JSON.lua")()  -- For Linux (ClearOS)

        local handle = assert(io.popen(string.format('curl http://%s/happ_thermstat?action=getThermostatInfo', ToonIP)))
        local ThermostatInfo = handle:read('*all')
        handle:close()

        local jsonThermostatInfo = json:decode(ThermostatInfo)

        if jsonThermostatInfo == nil then
            return
        end

        local handle2 = assert(io.popen(string.format('curl http://%s/boilerstatus/boilervalues.txt', ToonIP)))
        local BoilerInfo = handle2:read('*all')
        handle2:close()

-- JSON data from Toon contains a extra "," which should not be there.
        BoilerInfo = string.gsub(BoilerInfo, ",}", "}")
        jsonBoilerInfo = json:decode(BoilerInfo)

-- http://192.168.1.120/hdrv_zwave?action=getDevices.json
        local handle4 = assert(io.popen(string.format('curl http://%s/hdrv_zwave?action=getDevices.json', ToonIP)))
        local GasPowerInfo = handle4:read('*all')
        handle4:close()

-- JSON data from Toon contains a extra "." which should not be there.
        GasPowerInfo = string.gsub(GasPowerInfo, "dev_2.", "dev_2")
        GasPowerInfo = string.gsub(GasPowerInfo, "dev_2:", "dev_2\":")
        local jsonGasPower = json:decode(GasPowerInfo)

-- Update the powerconsumption
         local CurrentElectricityFlowHoog = tonumber(jsonGasPower.dev_24.CurrentElectricityFlow )           --stroomverbruik momenteel hoogtarief
         local CurrentElectricityFlowLaag = tonumber(jsonGasPower.dev_26.CurrentElectricityFlow )           --stroomverbruik momenteel laagtarief
         local CurrentElectricityQuantityHoog = tonumber(jsonGasPower.dev_24.CurrentElectricityQuantity)    --stroomverbruik totaal hoogtarief
         local CurrentElectricityQuantityLaag = tonumber(jsonGasPower.dev_26.CurrentElectricityQuantity)    --stroomverbruik totaal laagtarief
         local CurrentElectricityDeliveredHoog = tonumber(jsonGasPower.dev_25.CurrentElectricityQuantity)   --stroomgeleverd momenteel hoogtarief
         local CurrentElectricityDeliveredLaag = tonumber(jsonGasPower.dev_27.CurrentElectricityQuantity)   --stroomgeleverd momenteel laagtarief
         local CurrentElectricityQuantity =   CurrentElectricityFlowHoog + CurrentElectricityFlowLaag       --stroomverbruik totaal aktueel
         local totalDeliveredPower = 0
         local totalDeliveredPower2 = CurrentElectricityDeliveredHoog/1000 + CurrentElectricityDeliveredLaag/1000      --stroomverbruik totaal geleverd
         local CurrentGasFlow = tonumber(jsonGasPower.dev_21.CurrentGasFlow)
         local CurrentGasQuantity = tonumber(jsonGasPower.dev_21.CurrentGasQuantity)

        domoticz.devices(P1SmartMeterPower).updateP1(CurrentElectricityQuantityLaag, CurrentElectricityQuantityHoog, CurrentElectricityDeliveredLaag, CurrentElectricityDeliveredHoog, CurrentElectricityQuantity, totalDeliveredPower).silent()
        domoticz.devices(P1SmartMeterGas1).updateGas(CurrentGasQuantity).silent()
        --domoticz.log('*** P1 from toon: ' .. CurrentElectricityQuantityLaag/1000 .. 'kwh USAGE1 | ' ..CurrentElectricityQuantityHoog/1000 .. 'kwh USAGE2 | ' .. CurrentElectricityDeliveredLaag/1000 .. 'kwh RETURN1 | ' .. CurrentElectricityDeliveredHoog/1000 .. 'kwh RETURN2 | ' .. CurrentElectricityQuantity .. 'w consumed | '.. totalDeliveredPower2 .. 'w produced', domoticz.LOG_FORCE)


-- Update the Boiler Water In to current value
        local currentboilerInTemp = tonumber(jsonBoilerInfo.boilerInTemp)
        currentboilerInTemp = tonumber(string.format("%.0f", currentboilerInTemp))  -- afgeronde getallen is voldoende [PdB]
        if domoticz.utils.round(domoticz.devices(ToonBoilerTempIn).temperature,0) ~= domoticz.utils.round(currentboilerInTemp,0) then
        domoticz.log('Updating Boiler Water In to current value: ' ..currentboilerInTemp)
        domoticz.devices(ToonBoilerTempIn).updateTemperature(currentboilerInTemp).silent()
    end

-- Update the Boiler water Out to current value
        local currentboilerOutTemp = tonumber(jsonBoilerInfo.boilerOutTemp)
        currentboilerOutTemp = tonumber(string.format("%.0f", currentboilerOutTemp))  -- afgeronde getallen is voldoende [PdB]
        if domoticz.utils.round(domoticz.devices(ToonBoilerTempOut).temperature,0) ~= domoticz.utils.round(currentboilerOutTemp,0) then
        domoticz.log('Updating Boiler Water Out to current value: ' ..currentboilerOutTemp)
        domoticz.devices(ToonBoilerTempOut).updateTemperature(currentboilerOutTemp).silent()
        end

-- Update the Boiler water Pressure to current value
        local currentBoilerPressure = tonumber(jsonBoilerInfo.boilerPressure)
--      currentBoilerPressure = tonumber(string.format("%.1f", currentBoilerPressure))  -- 1 decimaal is voldoende [PdB]
       if domoticz.utils.round(domoticz.devices(ToonBoilerPressure)._nValue,0) ~= domoticz.utils.round(currentBoilerPressure,0) then
           domoticz.log('Updating Boiler Pressure to current value: ' ..currentBoilerPressure, domoticz.LOG_INFO)
           domoticz.devices(ToonBoilerPressure).updatePressure(currentBoilerPressure).silent()
       end

-- Update the current temperature setpoint
        local currentSetpoint = tonumber(jsonThermostatInfo.currentSetpoint) / 100
        local currentTemperature = tonumber(jsonThermostatInfo.currentTemp) / 100
              currentTemperature = tonumber(string.format("%.1f", currentTemperature))  -- 1 decimaal is voldoende [PdB]

-- Update the current auto program
        local currentProgramState = tonumber(jsonThermostatInfo.programState)
           if currentProgramState == 0 then currentProgramState = 10 -- No
                elseif currentProgramState == 1 then currentProgramState = 20 -- Yes
                elseif currentProgramState == 2 then currentProgramState = 30 -- Temporary
            end

-- Update the current scene by state
        local currentActiveState = tonumber(jsonThermostatInfo.activeState)
            if currentActiveState == -1 then currentActiveState = 50 -- Manual
                elseif currentActiveState == 0 then currentActiveState = 40 -- Comfort
                elseif currentActiveState == 1 then currentActiveState = 30 -- Home
                elseif currentActiveState == 2 then currentActiveState = 20 -- Sleep
                elseif currentActiveState == 3 then currentActiveState = 10 -- Away
            end

-- Update the current scene by temperature
		local currentActiveTemp = tonumber(jsonThermostatInfo.currentSetpoint) / 100
		    if currentActiveTemp == 22 then currentActiveState = 40 -- Comfort
		        elseif currentActiveTemp == 20 then currentActiveState = 30 -- Home
		        elseif currentActiveTemp == 18.5 then currentActiveState = 20 -- Sleep
		        elseif currentActiveTemp == 16 then currentActiveState = 10 -- Away
		        else	currentActiveState = 50 -- Manual
		end

-- Update the toon burner selector to current program state
        local currentBurnerInfo = tonumber(jsonThermostatInfo.burnerInfo)
        local CurrentToonBurnerValue = domoticz.devices(ToonBurnerName).level

        if currentBurnerInfo == 0 then currentBurnerInfo = 0 -- uit
            elseif currentBurnerInfo == 1 then currentBurnerInfo = 10 -- cv aan
            elseif currentBurnerInfo == 2 then currentBurnerInfo = 20 -- warmwater aan
            elseif currentBurnerInfo == 3 then currentBurnerInfo = 30 -- voorverwarmen volgend setpoint
        end

-- Update toon burner selector if it has changed
        if CurrentToonBurnerValue ~= currentBurnerInfo then
            domoticz.log('Updating Toon burner info:')
            domoticz.devices(ToonBurnerName).switchSelector(currentBurnerInfo)
        end

-- Update the modulation level of the burner
        local currentModulationLevel = tonumber(jsonThermostatInfo.currentModulationLevel)
        if domoticz.devices(ToonBoilerModulation).percentage + 1 ~= currentModulationLevel + 1 then
            domoticz.log('Updating the Modulation sensor to new value: ' ..currentModulationLevel)
            domoticz.devices(ToonBoilerModulation).updatePercentage(currentModulationLevel)
        end

-- Update the temperature Boiler setpoint to current boiler set point
         local currentInternalBoilerSetpoint = jsonThermostatInfo.currentInternalBoilerSetpoint+1
        if domoticz.utils.round(domoticz.devices(ToonBoilerSetpoint).temperature, 1) ~= domoticz.utils.round(currentInternalBoilerSetpoint, 1) then
        domoticz.log('Updating the Boiler internal temperature setpoint to new value: ' ..currentInternalBoilerSetpoint)
        domoticz.devices(ToonBoilerSetpoint).updateTemperature(currentInternalBoilerSetpoint)
        end

-- Update the thermostat sensor to current setpoint
        if domoticz.devices(ToonThermostat).setPoint*100 ~= currentSetpoint*100 then
            domoticz.log('Updating thermostat sensor to new set point: ' ..currentSetpoint)
            domoticz.devices(ToonThermostat).updateSetPoint(currentSetpoint).silent()
        end

-- Update the temperature sensor to current room temperature
        if domoticz.utils.round(domoticz.devices(ToonTemperature).temperature, 1) ~= domoticz.utils.round(currentTemperature, 1) then
            domoticz.log('Updating the temperature sensor to new value: ' ..currentTemperature)
            domoticz.devices(ToonTemperature).updateTemperature(currentTemperature)
        end

-- Update the toon scene selector sensor to current program state
        if domoticz.devices(ToonScenes).level ~= currentActiveState then  -- Update toon selector if it has changed
            domoticz.log('Updating Toon Scenes selector to: '..currentActiveState)
            domoticz.devices(ToonScenes).switchSelector(currentActiveState).silent()
        end

-- Updates the toon auto program switch
        if domoticz.devices(ToonAutoProgram).level ~= currentProgramState then -- Update toon auto program selector if it has changed
            domoticz.log('Updating Toon Auto Program selector to: '..currentProgramState)
            domoticz.devices(ToonAutoProgram).switchSelector(currentProgramState).silent()
        end

-- Updates the toon program information text box
--      local currentNextTime = jsonThermostatInfo.nextTime
--      local currentNextSetPoint = tonumber(jsonThermostatInfo.nextSetpoint) / 100

--      if currentNextTime == 0 or currentNextSetPoint == 0 then
--          ToonProgramInformationSensorValue = 'Op ' ..currentSetpoint.. '°'
--      else
--          ToonProgramInformationSensorValue = 'Om ' ..os.date('%H:%M', currentNextTime).. ' op ' ..currentNextSetPoint.. '°'
--      end

--      if domoticz.devices(ToonProgramInformation).text ~= ToonProgramInformationSensorValue then
--          domoticz.log('Updating Toon Program Information to: '..ToonProgramInformationSensorValue)
--          domoticz.devices(ToonProgramInformation).updateText(ToonProgramInformationSensorValue)
--      end
   end
}

[Jasper79]

So far no one has been able figure out how to use the program state as trigger?

[madpatrick]

So far no one has been able figure out how to use the program state as trigger?

Hi Jasper79,
I don't understand your question exactly

With the script you can use the program state of Toon back and forth
It uses the command "currentProgramState" which is able to use.

[Jasper79]

Well I posted a Blockly a few posts up and that doesn't trigger (changes of state trigger a dummy switch) , also it doesn't show up on the logs.

When reversing the entire script it does work. (click on the dummy switch changes the toon status)

Edit,

Forget everything above,

I'll tell you what I was trying to achieve.

My daughter sometimes bumps the temperature to far above the program setpoint which has the state "tijdelijk" Then the heating turns on and it will most likely not reach a setpoint of 25c.

So what I want is that the Toon goes back to the normal program and lowers the setpoint.

What I was trying is when state is tijdelijk set state to follow program after 30min (when testing I used 5 seconds)

[madpatrick]

Well I posted a Blockly a few posts up and that doesn't trigger (changes of state trigger a dummy switch) , also it doesn't show up on the logs.

When reversing the entire script it does work. (click on the dummy switch changes the toon status)

Edit,

Forget everything above,

I'll tell you what I was trying to achieve.

My daughter sometimes bumps the temperature to far above the program setpoint which has the state "tijdelijk" Then the heating turns on and it will most likely not reach a setpoint of 25c.

So what I want is that the Toon goes back to the normal program and lowers the setpoint.

What I was trying is when state is tijdelijk set state to follow program after 30min (when testing I used 5 seconds)

Jasper

I'm not a programming expert, but this could be workaround
You must not need set the trigger on % level, but on the name of the level




When i try this is a message in my log (which indicates the trigger works)
The setpoint can work the same

[Jasper79]

It just refuses to work with the Toon switches as trigger.

Problem is in the IF part because when using a dummy switch for that the rest works fine.

Toon on Tijdelijk script.png (25.11 KiB) Viewed 1323 times

Toon on Tijdelijk.png (67.89 KiB) Viewed 1323 times

[madpatrick]

What options do you have under the switch “ToonAutoProgram” ?
Can you give screenshot as i’ve posted of the switch
