Blockly 1=0 always true and other problems Topic is solved

[AlanGpio]

Hi I've spent most of the day experimenting with a Blockly script without success. It would be nice to get another opinion. This is the script:

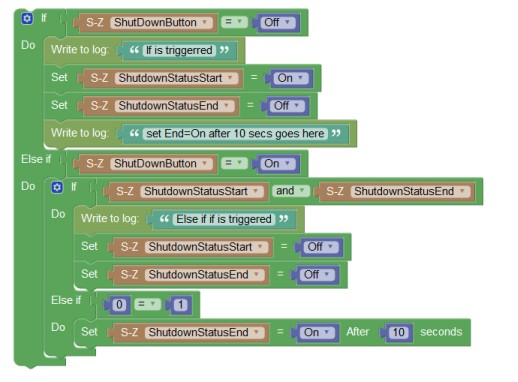

Blockly Script 1.jpg (73.8 KiB) Viewed 291 times

The Else if 0=1 is for "parking" unused bits of script as I' was getting fed up with deleting and recreating bits of script.

The ShutdownButton (gpio6) is normally High and goes Low when pressed. It is defined as a Push Off Button in Domoticz and as Both rising and falling edge in sys/gpio. When the button is pressed for just a second this is the log:

Code: Select all

 2020-03-24 20:02:01.128 (Raspberry Pi 4 HMS) Lighting 2 (ShutDownButton)
2020-03-24 20:02:01.130 EventSystem: Event triggered: SDB_Test_1
2020-03-24 20:02:01.447 (Raspberry Pi 4 HMS) Lighting 2 (ShutDownButton)
2020-03-24 20:02:01.449 EventSystem: Event triggered: SDB_Test_2
2020-03-24 20:02:01.124 Status: Sysfs GPIO: gpio6 new state = off
2020-03-24 20:02:01.130 Status: If is triggerred
2020-03-24 20:02:01.442 Status: Sysfs GPIO: gpio6 new state = on
2020-03-24 20:02:01.449 Status: Else if if is triggered
2020-03-24 20:02:11.474 (StatusFlags) Light/Switch (ShutdownStatusEnd)
2020-03-24 20:02:18.469 (StatusFlags) Light/Switch (ShutdownStatusEnd)
2020-03-24 20:02:18.464 Status: User: Admin initiated a switch command (

10 seconds later the ShutdownStatusEnd Light/Switch comes on. Logic says that 1=0 should never be true.

Further the log entry "Else if if is triggered" should also never happen as both variables ShutdownStatusStart and ShutdownStatusEnd have been set to 1 and 0 respectively.

Note that my first version used dummy switches for ShutdownStatusStart and ShutdownStatusEnd and the behaviour was the same.

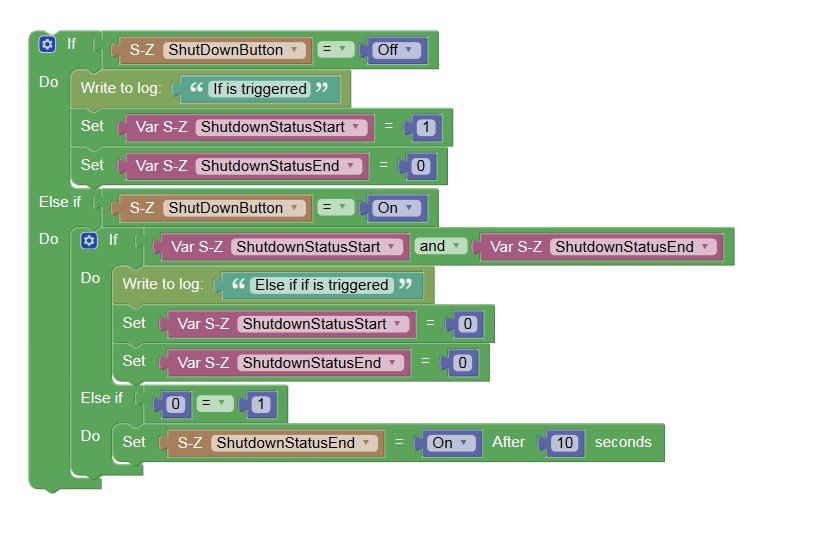

Blockly Script 2.jpg (42.77 KiB) Viewed 291 times

Code: Select all

 2020-03-24 20:29:09.317 Status: EventSystem: reset all events...
2020-03-24 20:29:20.284 Status: EventSystem: reset all events...
2020-03-24 20:29:55.759 (Raspberry Pi 4 HMS) Lighting 2 (ShutDownButton)
2020-03-24 20:29:55.761 EventSystem: Event triggered: SDB_Test2_1
2020-03-24 20:29:55.804 (StatusFlags) Light/Switch (ShutdownStatusStart)
2020-03-24 20:29:55.808 (StatusFlags) Light/Switch (ShutdownStatusEnd)
2020-03-24 20:29:55.754 Status: Sysfs GPIO: gpio6 new state = off
2020-03-24 20:29:55.761 Status: If is triggerred
2020-03-24 20:29:55.761 Status: set End=On after 10 secs goes here
2020-03-24 20:29:56.244 (Raspberry Pi 4 HMS) Lighting 2 (ShutDownButton)
2020-03-24 20:29:56.245 EventSystem: Event triggered: SDB_Test2_2
2020-03-24 20:29:56.254 (StatusFlags) Light/Switch (ShutdownStatusStart)
2020-03-24 20:29:56.259 (StatusFlags) Light/Switch (ShutdownStatusEnd)
2020-03-24 20:29:56.239 Status: Sysfs GPIO: gpio6 new state = on
2020-03-24 20:29:56.245 Status: Else if if is triggered
2020-03-24 20:30:06.255 (StatusFlags) Light/Switch (ShutdownStatusEnd)
2020-03-24 20:30:17.932 (StatusFlags) Light/Switch (ShutdownStatusEnd

I'm running this on a Rasp Pi 4 under Buster and within a Docker container. Domoticz V4.10364 (c)2012-2019 GizMoCuz and Build Hash: 1cacdddf, Date: 2019-01-25 10:01:48

I'm tempted to do this in python script but I'm having problems accessing the gpio pins.

Thanks for reading.
Alan

[waaren]

Hi I've spent most of the day experimenting with a Blockly script without success. It would be nice to get another opinion. This is the script:

There are quite a number of posts on this forum mentioning that nested if's in Blockly does not work as expected. Just type

nested Blockly

in the search window on the forum and you will get dozens of hits.
Bottom line: "Don't use nested if in Blockly "
