How use Room Plan ?

[Pjedr]

And been creative again, added my camera at the hallway in /var/ramdrive/www/templates/frontcam.html

Code: Select all

<br>
<h2>Entree Kamera</h2>
<br>
<div align="center" style="margin-right: auto; margin-left: auto; width: 650px;">
<img alt="video" id="imgDisplay" name="imgDisplay" src="http://<camaddress>:<ipport>/snapshot.cgi?user=usernam&pwd=password">
<div>

[dhanjel]

Just tried this in both Safari and Chrome without any luck. I enter a name and the relative path to my floorplan (even tried with example.jpg), but when I click 'Add' nothing is added. And nothing about this in the log.

Anyone else with issues like this?

(I'm running on a Windows server, version 1.1906)

[Dnpwwo]

I enter a name and the relative path to my floorplan (even tried with example.jpg), but when I click 'Add' nothing is added. And nothing about this in the log.

A suggestion and a question:

• To make sure that the relative URL is correct, append it to [url]http://<your_server:8080>[/url] and the image should appear in your browser. If it doesn't then the relative URL is incorrect.
• When you say 'nothing is added', do you get a row in the floor plan table but no image, or absolutely nothing?

File browser functionality is on the list for future updates to make this easier.

It looks like DB is not up to date. How I can solve this problem ?

Sorry Golgautier I've been out of town for a few days. From the log extract I believe that the Floorplan table exists in the database but that a command to add columns to the Plans table has not worked for you. I will look into adding some logging of 'major' events tonight so that I can diagnose some of these issues more easily.

[dhanjel]

Absolutely nothing is happening, no row at all.

[Golgautier]

@dnpwwo : Thank you very much. I will do all test you want. Take your time, I'm not hurry

[Golgautier]

@Dnpwwo : Thank you for your job... I updated Domoticz this evening to test roomplan module update...

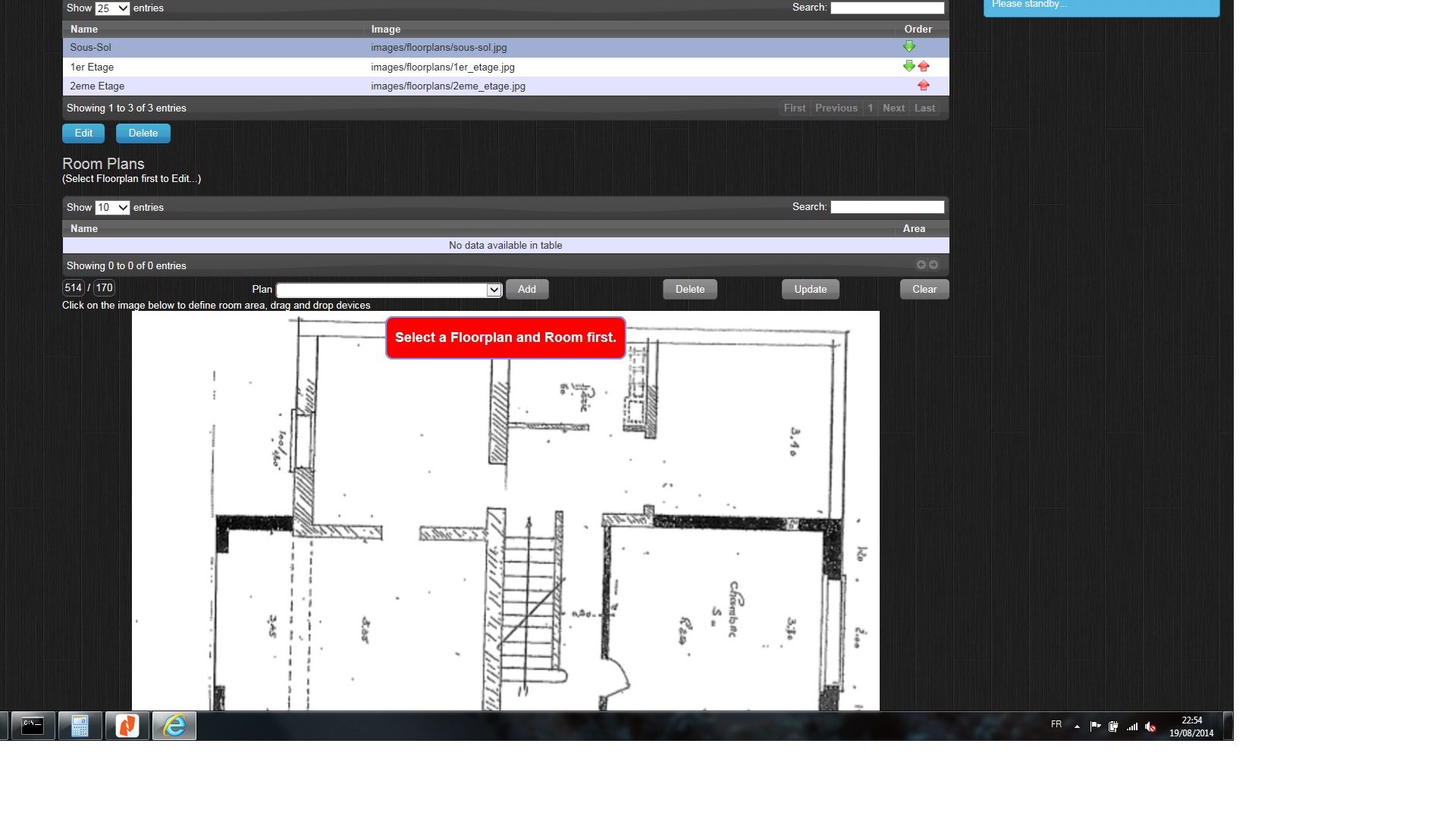

It works better for me (I can add plans and images), but I have still an issue :-/ When i select roomplan, picture is updated at he bottom (it's cool ), but I'm unable to do something on it... button or menus are greyed. When I click on the picture, I have a warning :


Chrome or IE, same issue :-/

[Dnpwwo]

Not sure what changed, I haven't published a new version yet

You need to create some Room Plans, these map devices to rooms and are existing functionality and is off the Setup menu. These also appear on the main Dashboard page as a drop down box on the right. Once you have some of these they will appear in the editor as well and 'Adding' them will populate the 2nd table.

Then you can click on the floorplan to draw your rooms

[Golgautier]

Hello,

I updated to 1.911 to try this. With 1.1909, I was unable to add floorplans because of table error and coredump. since I have updated, I can add floorplans.

I didn't undestood that roomplans where a part of floorplans, I thought that floorplans was a replacement module. So, I have created all my rooms with my devices, and added them into the flooplans, ans all seem to be working very well.

You did a great job ! congratulations !

[Dnpwwo]

Upped version 1912.

Popups now stay visible as long as the mouse pointer is over them, this means that blinds, inverted blinds & groups should now work because the right hand button can be pressed.

[Golgautier]

Good. I'll try it soon

Note : SetPoint icon seems to be broken in flor plans edition.

[Dnpwwo]

@Golgautier, Can you please post a picture of what SetPoint should look like (I don't have one) from one of the other device views? Also can you post the output from [url]http://<your_server>:8080/json.htm?type=devices&filter=all&used=true&order=Name&floor=<floorplan_number>[/url] for the floor plan that the device is on. All I need is the data for the specific device but if you can't work that out just post the whole thing.

[Golgautier]

Yes my lord (sorry, I miss Warcraft II )

the domoticz picture :


json output :

Code: Select all

{ "5MinuteHistoryDays" : 1, "ActTime" : 1408733419, "AllowWidgetOrdering" : true, "DashboardType" : 0, "Latitude" : "48.759255", "Longitude" : "2.302553", "MobileType" : 0, "TempScale" : 1.0, "TempSign" : "C", "WindScale" : 1.0, "WindSign" : "m/s", "dontcachehtml" : true, "result" : [ { "BatteryLevel" : 92, "CustomImage" : 0, "Data" : "20.0", "Favorite" : 1, "HardwareID" : 2, "HardwareName" : "Aeontech Z-Stick", "HaveTimeout" : false, "ID" : "0001101", "LastUpdate" : "2014-08-22 20:45:17", "Name" : "[Chambre_1][RT][Consigne]", "Notifications" : "false", "PlanID" : "1", "Protected" : false, "SetPoint" : "20.0", "SignalLevel" : 12, "SubType" : "SetPoint", "Timers" : "false", "Type" : "Thermostat", "TypeImg" : "override_mini", "Unit" : 1, "Used" : 1, "XOffset" : "1024", "YOffset" : "367", "idx" : "59" }, { "BatteryLevel" : 97, "CustomImage" : 0, "Data" : "17.0", "Favorite" : 1, "HardwareID" : 2, "HardwareName" : "Aeontech Z-Stick", "HaveTimeout" : false, "ID" : "0001001", "LastUpdate" : "2014-08-22 20:49:42", "Name" : "[Chambre_2][RT][Consigne]", "Notifications" : "false", "PlanID" : "2", "Protected" : false, "SetPoint" : "17.0", "SignalLevel" : 12, "SubType" : "SetPoint", "Timers" : "false", "Type" : "Thermostat", "TypeImg" : "override_mini", "Unit" : 1, "Used" : 1, "XOffset" : "341", "YOffset" : "320", "idx" : "58" } ], "status" : "OK", "title" : "Devices" }

[Dnpwwo]

@Golgautier, try build 1920+ and let me know if your SetPoint is still not showing up properly.

Added:

• SetPoint support
• Drag n Drop uplift, now very good on iPad, Chrome, IE. (Don't get me started on FireFox )
• Dimmer display finished
• Favorite setting now works when clicking on 'star'
• Back button from graphs fixed

[Golgautier]

Hi Dnpwwo...

I'm sorry but nothing is displayed whan I select floorplan and room... It is ok on all others rooms, but in this 2 rooms, I only have a set point device, and floorplan show me nothing :-/

Note : I have cleared the 2 room plans to verify but it changes nothing.


[Dnpwwo]

@Golgautier, try build 1932+, second time lucky.

I worked out how to inject your data into the code and saw an exception, now I see the device just fine.

[Golgautier]

Hello,

Thank you Dnpwwo, it's perfect now

[Dnpwwo]

Upped build 1942 - Added slider support for non-binary switches (like dimmers)

[qwerk]

The slider is working perfectly.
Is it possible to make it so the light will turn with use of the slider when the light is off?

Keep up the good work

[Dnpwwo]

Hi qwerk,

Glad to hear it works okay, I don't actually have any dimmable devices so I couldn't be 100% sure.

It should work pretty much the same way as the slider on the existing pages because it calls the same backend function. For me, if the light is on and the slider is moved to below about 20% it goes off. If the device is off it comes on if the slider is moved to anywhere above the same threshold. Is this not what you are after?

[qwerk]

@ Dnpwwo

funny thing,
It did not work at first and after your reply I tested again and now it works.
I did some SVN updates in between... who knows.

thanks for the reply and thanks for Domoticz
