Rotary Dimmer

Post by frankverd »

Running Domotics 4.9700
ip 192.168.178.200:8080

Wemos D1 firmware v2.0.0-dev12 test image with rotary
with Rotary KY-040 encoder connected to D3 GPIO(0) and D2 GPIO(2)
Ip 192.168.178.110 and at the device tab the rotary switch.

Mqtt:
192.178.178.200:1883

Hi All.
I like to controle my dimmer via a rotary switch KY-040 encoder.
Dimmer is working via the slider via a dummy dimmer via lua script.
So in short terms how can i controle a dimmer via a rotary encoder connected to a Wemos ESP8266.

Code: Select all

commandArray = {}
DomDevice = 'Dimmer-Veranda-110';
IP = '192.168.178.110';
PIN = "16";
if devicechanged[DomDevice] then
   if(devicechanged[DomDevice]=='Off') then
     print ("OFF dimm = "..uservariables['dimm']);
     CalcValue = 800;
   else if(devicechanged[DomDevice]=='On') then
        DomValue = uservariables['dimm'];
        print ("ON dimm = "..uservariables['dimm']);
        CalcValue = DomValue;
      else
         print("Other");
         DomValue = otherdevices_svalues[DomDevice];
         CalcValue = 900-(DomValue*9);
         commandArray['Variable:dimm'] = tostring(CalcValue);
         print ("dimm Level = "..uservariables['dimm']);
   end
   end
   runcommand = "curl 'http://" .. IP .. "/control?cmd=PWM,"  ..PIN.. "," .. CalcValue .. "'";
   os.execute(runcommand);
print("PWM calculated value= "..CalcValue);
end
return commandArray
Can any one help how to proceed, i have tried this for weeks now with out any results.


I have seen some articles :
For home assist:
https://community.home-assistant.io/t/a ... mqtt/29448
Domoticz:
viewtopic.php?t=17348

Image of wemos esp8266 where you can see that the rotary encoder is counting up and down.
Attachments
Schermafbeelding 2018-10-04 om 16.30.08.png
Schermafbeelding 2018-10-04 om 16.30.08.png (25.41 KiB) Viewed 2031 times
User avatar
emme
Posts: 909
Joined: Monday 27 June 2016 11:02
Target OS: Raspberry Pi / ODroid
Domoticz version: latest
Location: Milano, Italy
Contact:

Re: Rotary Dimmer

Post by emme »

how MQTT is involved in this?

rotary can send via mqtt 2 different payload domoticz already formatted to be stored in a variable...
then you can have a dzVents script to handle the variable change:

let's suppose the dimmer publish on /domoticz/in a payload like:

Dim Up

Code: Select all

{
   "command": "setuservariable",
   "idx": 1,
   "value": "+"
}
Dim Down

Code: Select all

{
   "command": "setuservariable",
   "idx": 1,
   "value": "-"
}
on dzVents you could a script like:

Code: Select all

return {
	on = {
		variables = { 'myVarIDX1' },
	},

	execute = function(dz, myVar)
	    local dimmer = dz.devices('myDimmerDevice')
	    local dimLevel = dimmer.level
	    local dimStep = 5       -- absolute value to step up or down the dimmer

        if myVar.value == "+" then
            newDimLevel = dimLevel + dimstep
            if newDimLevel > 100 then newDimLevel = 100 end
        elseif myVar.value == "-" then
            newDimLevel = dimLevel - dimstep
            if newDimLevel < 0 then newDimLevel = 0 end
        end
        dimmer.dimTo(newDimLevel)
        if newDimLevel == 0 then dimmer.switchOff().checkFirst()
           else
              dimmer.switchOn().checkFirst()
       end
}
the script will be activated bu variable chage (it reflects the mqtt telegram)
if it gets a "+ " then it increate the dim value, in "-"... well... it does exactely what it is supposed to do

then I added a level check... assuming 0 and 100 are min and max values....
and more...
if you get 0... then switch off the dimmer device ;)

hope you enjoy it
ciao
M
The most dangerous phrase in any language is:
"We always done this way"
frankverd
Posts: 4
Joined: Sunday 18 March 2018 15:27
Target OS: -
Domoticz version:
Contact:

Re: Rotary Dimmer

Post by frankverd »

Hi Emme.
Thank you for responding for some more pieces of this puzzel :D
I appreciate your help !!!!!

As i understand is that the ESP8266 is send mqtt message from the rotary swithch to mqtt

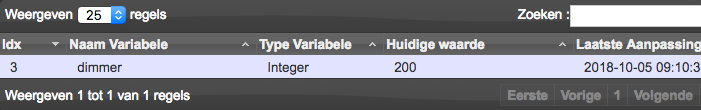

But How do i get / see these update in variable "dimmer" i have created in Domoticz.

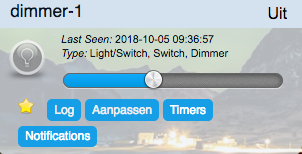

Dimmer-1 and Rotary are on the same ESP8266
GPIO POrts: Dimmer on GPI0 16 and the rotary on GPIO,0 and 2

Json output: dimer is changing when i turn the rotary.

System
Build 20000
Unit 11
Uptime 1431
Free RAM 19328
Sensors
0
TaskName "dimmer"
dimmer 75


..
Rg Frank
Attachments
Schermafbeelding 2018-10-05 om 09.37.15.png
Schermafbeelding 2018-10-05 om 09.37.15.png (29.55 KiB) Viewed 1995 times
Schermafbeelding 2018-10-05 om 09.38.04.png
Schermafbeelding 2018-10-05 om 09.38.04.png (10.18 KiB) Viewed 1995 times
Schermafbeelding 2018-10-05 om 09.38.22.png
Schermafbeelding 2018-10-05 om 09.38.22.png (56.53 KiB) Viewed 1996 times
