I have done the same mod (wemos mini wired directly) and it is jumpy as well just like your gif. Did you get to the bottom of this?Raspberry Piet wrote: ↑Monday 02 October 2017 22:38 Now i flashed espurna 1.9.5 for my ECH1560 Chinese powermeter. (wemos d1-mini inside)
It is showing some values but it is a bit jumpy:
Cheap Chinese Power Meter made wireless
Moderator: leecollings
-
- Posts: 3
- Joined: Saturday 13 June 2015 7:17
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Cheap Chinese Power Meter made wireless
-
- Posts: 158
- Joined: Saturday 11 January 2014 16:21
- Target OS: Raspberry Pi / ODroid
- Domoticz version: Beta
- Location: NL
- Contact:
Re: Cheap Chinese Power Meter made wireless
No but xoseperez wants to fix it someday issue 596tastycarp wrote: ↑Sunday 20 May 2018 2:25I have done the same mod (wemos mini wired directly) and it is jumpy as well just like your gif. Did you get to the bottom of this?Raspberry Piet wrote: ↑Monday 02 October 2017 22:38 Now i flashed espurna 1.9.5 for my ECH1560 Chinese powermeter. (wemos d1-mini inside)
It is showing some values but it is a bit jumpy:
-
- Posts: 3
- Joined: Saturday 13 June 2015 7:17
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Cheap Chinese Power Meter made wireless
Ahh Thanks for the info. It sounds like he owns a few ehc1560 now. so hopefully not too far off. I will put mine into the one day project pile!
-
- Posts: 5
- Joined: Friday 27 July 2018 18:49
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Cheap Chinese Power Meter made wireless
How did you wire the 3rd power meter?Kapee wrote: ↑Wednesday 20 September 2017 10:37 I ordered three powermeters and all three have a different printed circuit board. The 1st and the 3rd with spi interface, the 2nd with serial interface.
For the 3rd powermeter I made a pcb for the wemos and power supply, it just fitted in height.
3pwrmtrs (Small).jpg
-
- Posts: 13
- Joined: Sunday 09 April 2017 21:08
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Location: Netherlands
- Contact:
Re: Cheap Chinese Power Meter made wireless

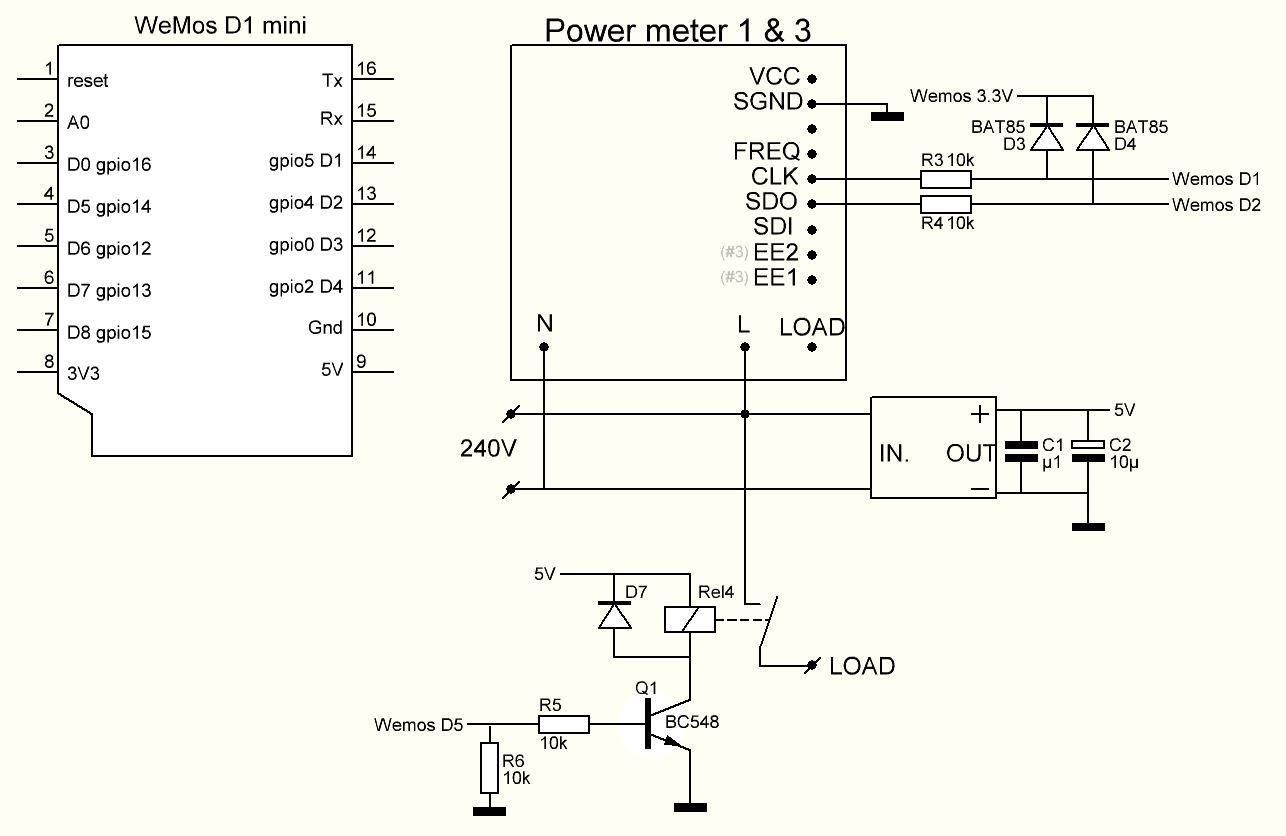

Here is the schematic
- Attachments
-
- 3rd powermeter.jpg (80.64 KiB) Viewed 3582 times
Re: Cheap Chinese Power Meter made wireless
Just a remark, I made the same 'mistake' viewtopic.php?f=38&t=7325&start=40#p149833 and added some opto-couplers between the powermeter board and the ESP for safety because I used ESP07 and external antenna's.
-
- Posts: 5
- Joined: Friday 27 July 2018 18:49
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Cheap Chinese Power Meter made wireless
SweetPants wrote: ↑Saturday 04 August 2018 12:44Just a remark, I made the same 'mistake' viewtopic.php?f=38&t=7325&start=40#p149833 and added some opto-couplers between the powermeter board and the ESP for safety because I used ESP07 and external antenna's.
So it's better add the opto-couplers?
Re: Cheap Chinese Power Meter made wireless
Only if you have external connections (like a WiFi antenna)DaNii78 wrote: ↑Saturday 04 August 2018 13:38So it's better add the opto-couplers?SweetPants wrote: ↑Saturday 04 August 2018 12:44Just a remark, I made the same 'mistake' viewtopic.php?f=38&t=7325&start=40#p149833 and added some opto-couplers between the powermeter board and the ESP for safety because I used ESP07 and external antenna's.
-
- Posts: 5
- Joined: Friday 27 July 2018 18:49
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Cheap Chinese Power Meter made wireless
I can't make it work with a ESP-01...
Anybody has tried with this ESP?
Anybody has tried with this ESP?
Re: Cheap Chinese Power Meter made wireless
ESP-01 has not enough memory i think. You probably get compiler/link errors?
-
- Posts: 5
- Joined: Friday 27 July 2018 18:49
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Cheap Chinese Power Meter made wireless
No, I can compile and the code gets uploaded but I always obtain a 0 value in the voltage measure.
