Have really thought about weldering, there is a metal backplate at the tablet, but i think the heat would have destroyed it
Finished it and used epoxy resin glue, think i will never get this off again
But it works and looks, for my mind, quite good.
All in all around 23€ for all this.
Yeah the power cable is annoying, but there is no power source inside the wall i could use.
I'm using the "Teclast X10", the cheapest 10" China tablet i could find https://www.banggood.com/Teclast-X10-Qu ... 43009.html
For the price it is surprisingly fast, but the speakers are really bad.
blacksn0w wrote:Yeah the power cable is annoying, but there is no power source inside the wall i could use.
I'm using the "Teclast X10", the cheapest 10" China tablet i could find https://www.banggood.com/Teclast-X10-Qu ... 43009.html
For the price it is surprisingly fast, but the speakers are really bad.
you could drill a hole to wall behind the tablet, and another one near floor, directly under the upper hole, and using some small chain as weight, lure that cable from upper hole and out from lower hole, and to the power socket
Before drilling, try to make sure there is nothing to prevent wire going down to lower hole inside the wall
-----------------------------------------
Smartthings
zigbee2mqtt
RFLink 433mhz / Nrf 2.4Ghz
Mi Light
esp8266MiLight Hub
OpenHab/HomeAssistant/Domoticz
HP T610 & Debian 5.10.19-1 x86_64[/b]
Due to frustrations on "of-the-shelve" baby monitors, I decided to make on my own. Also good for the wife acceptance factor, to purchase more domotics.
My question:
I would like to ad a block that shows: "expected low temperature" ( the minimum temperature for the current day)
From Wunderground I know where to find it in de JSON outputfile, but I can't figure out how to get it in a block like " currentweather" https://www.wunderground.com/weather/ap ... a/forecast
What would be the way to do this?
1. Create a virtual device(sensor/switch) in Domoticz?
2. Edit some of the js files in Dashticz?
3. Other suggestions
Actually I haven't found any post/wiki that describes a virtual sensor based on a weather forecast...
BTW: Thanks to Robgeerts and all the contributors to this forum, I would not have gotten to this point without reading your posts.
BTW2: Toon is not the name of the device, but my two year old son

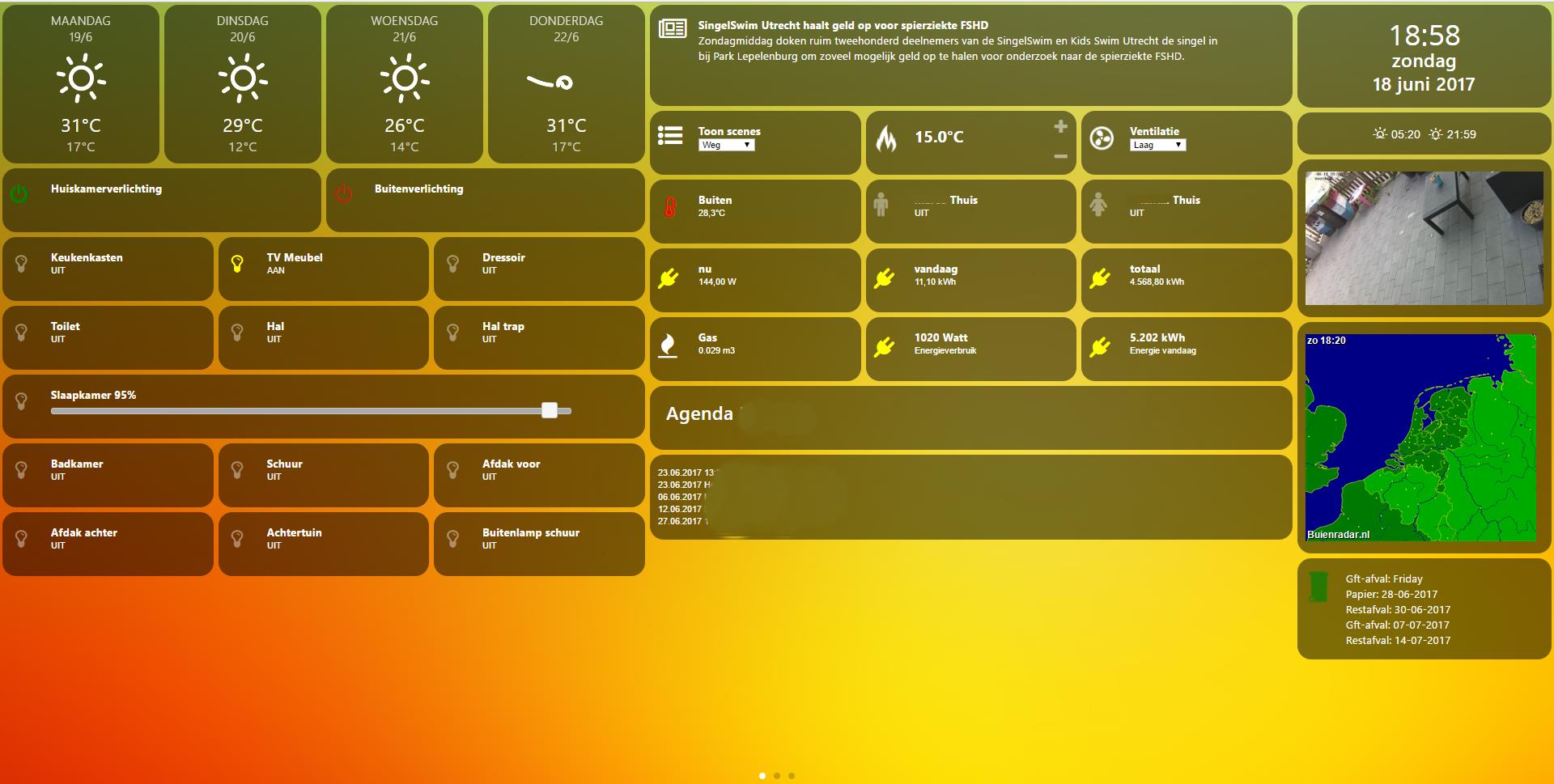

var _LANGUAGE = 'nl_NL'; //or: en_US, fr_FR, hu_HU
var _HOST_DOMOTICZ = 'http://192.168.192.24:8080';
var _DOMOTICZ_REFRESH = 5; //in seconds
var _DASHTICZ_REFRESH = 30; //in minutes
var _THEME = 'default'; // default = dashticz default theme
/*
IF YOU HAVE A MEDIABOX FROM ZIGGO (HORIZON), COPY SWITCH_HORIZON.PHP ON A WEBSERVER INSIDE YOUR NETWORK AND CHANGE THE IP.
ENTER THE PATH TO THIS FILE BELOW.
*/
var _HOST_ZIGGO_HORIZON = '';
var _APIKEY_WUNDERGROUND = '';
var _WEATHER_CITY = "'s-hertogenbosch";
var _WEATHER_CITYNAME = 'Den Bosch'; //show a different city name, leave empty if same as _WEATHER_CITY
var _WEATHER_COUNTRY = 'NL';
var _USE_AUTO_POSITIONING = true; //don't want to configure positions, use auto positioning
var _USE_FAVORITES = false; //only used when using auto positioning
var _HIDE_SECONDS_IN_CLOCK = true; //do not show the seconds in the clock
var _HIDE_MEDIAPLAYER_WHEN_OFF = false; //when you have a mediaplayer connected, hide it if nothing is playing
var _NEWS_RSSFEED = 'http://www.nu.nl/rss/algemeen';
var _USE_FAHRENHEIT = false;
var _USE_BEAUFORT = false; //Bft instead of m/s
var _TRANSLATE_SPEED = false; //windspeed, north northwest instead of NNW
var _STANDBY_AFTER_MINUTES = false; //enter amount of seconds like: 5 (5 seconds)
var _SCROLL_NEWS_AFTER = 7000; //milliseconds, so 7000 is 7 seconds
var _SHOW_LASTUPDATE = false;
var _LASTUPDATE_FORMAT = 'DD-MM-YY HH:mm';
var _SCREENSLIDER_EFFECT = 'fade'; //'slide' or 'fade' or 'cube' or 'coverflow' or 'flip'
var _AUTO_SWIPEBACK_TO = 1; //when no activity, swipe back to main screen after x seconds
var _AUTO_SWIPEBACK_TIME = 0; //seconds
var _SLIDE_PAGES = 60; //Loop all pages and change page every x (min. 5) seconds, set _AUTO_SWIPEBACK_TIME = 0
var _APIKEY_MAPS = '';
var _MAPS_LATITUDE = '';
var _MAPS_LONGITUDE = '';
var _MAPS_ZOOMLEVEL = 9;
//defining wich blocks to show, de numbers represents the IDX of the device in Domoticz
//only define if you want to use a custom width instead of the default
/* Example:
blocks[1] = {}
blocks[1]['width'] = 4; //1 to 12, remove this line if you want to use the default (4)
blocks[1]['title'] = 'Living room' //if you want change the name of switch different then domoticz
blocks[1]['icon'] = 'fa-eye'; //if you want an other icon instead of the default, choose from: http://fontawesome.io/cheatsheet/
blocks[1]['image'] = 'bulb_off.png'; //if you want to show an image instead if icon, place image in img/ folder
blocks[1]['switch'] = true; //if you want to switch the title and data
blocks[1]['hide_data'] = true; //if you want to hide the data of this block
blocks[1]['show_lastupdate'] = true; //if you want to show the last update specific for this block
blocks[1]['playsound'] = 'sounds/ping.mp3'; //play a sound when a device changes
blocks[1]['protected'] = true; //protect switching manually in Dashticz
*/
var blocks = {}
//Open camera als er iemand aan de deur staat
blocks[241] = {}
blocks[241]['playsound'] = 'sounds/doorbell.mp3';
blocks[241]['openpopup'] = {}
blocks[241]['openpopup']['url'] = 'http://192.168.192.6:xxx/cgi-bin/CGIProxy.fcgi?cmd=snapPicture2&usr=xxx&pwd=xxx';
blocks[241]['openpopup']['auto_close'] = 30; //seconds
//Groepen & Scenes
blocks['s4'] = {} //Groep - Huiskamer
blocks['s4']['width'] = 6; //1 to 12, remove this line if you want to use the default (4)
blocks['s4']['icon'] = 'fa-power-off';
blocks['s4']['hide_data'] = true;
blocks['s2'] = {} //Groep - Buitenverlichting
blocks['s2']['width'] = 6; //1 to 12, remove this line if you want to use the default (4)
blocks['s2']['icon'] = 'fa-power-off';
blocks['s2']['hide_data'] = true;
//Klimaat schakelaars
blocks[20] = {} //Toon scenes
blocks[20]['width'] = 4; //1 to 12, remove this line if you want to use the default (4)
blocks[20]['icon'] = 'fa-list-ul';
blocks[20]['title'] = 'Toon scenes';
blocks[115] = {} //Toon temperatuur instelling
blocks[115]['width'] = 4; //1 to 12, remove this line if you want to use the default (4)
blocks[115]['title'] = '';
//Slimme meters
blocks[29] = {} //Zonnepanelen
blocks[29]['width'] = 4; //1 to 12, remove this line if you want to use the default (4)
blocks[29]['icon'] = 'fa-sun-o';
blocks[29]['title'] = '';
blocks[29]['switch'] = true;
blocks[121] = {} //Gas meter
blocks[121]['width'] = 4; //1 to 12, remove this line if you want to use the default (4)
blocks[121]['title'] = 'Gas';
blocks[121]['switch'] = true;
blocks[120] = {} //Elektra meter
blocks[120]['width'] = 4; //1 to 12, remove this line if you want to use the default (4)
blocks[120]['title'] = '';
blocks[120]['switch'] = false;
//Temperaturen
blocks[12] = {} //Weer
blocks[12]['width'] = 4; //1 to 12, remove this line if you want to use the default (4)
blocks[12]['title'] = 'Buiten';
blocks[12]['switch'] = true;
blocks[116] = {} //Huiskamer temperatuur
blocks[116]['width'] = 4; //1 to 12, remove this line if you want to use the default (4)
blocks[116]['title'] = 'Huiskamer';
blocks[116]['switch'] = true;
blocks[173] = {} //Hal (voor) temperatuur
blocks[173]['width'] = 4; //1 to 12, remove this line if you want to use the default (4)
blocks[173]['title'] = 'Hal (voor)';
blocks[173]['switch'] = true;
blocks[627] = {} //Schuur temperatuur
blocks[627]['width'] = 4; //1 to 12, remove this line if you want to use the default (4)
blocks[627]['title'] = 'Schuur';
blocks[627]['switch'] = true;
blocks[404] = {} //Zonnepanelen temperatuur
blocks[404]['width'] = 4; //1 to 12, remove this line if you want to use the default (4)
blocks[404]['title'] = 'Zonnepanelen';
blocks[404]['switch'] = true;
blocks[777] = {} //Badkamer temperatuur
blocks[777]['width'] = 4; //1 to 12, remove this line if you want to use the default (4)
blocks[777]['title'] = 'Badkamer';
blocks[777]['switch'] = true;
//defining number of columns, their contents en widths
//width can be a number 1 to 12, but total widths of all columns should always be 12
var columns = {}
columns[1] = {}
columns[1]['width'] = 5;
columns[1]['blocks'] = ['weather','s4','s2',162,553,580,98,342,389,184,347,345,541,343,398,402] //remark: idx 144 produces 2 blocks, so you can use: '144_1' and '144_2' (or of course, just 144 if you want one)
//columns[1]['blocks'] = ['blocktitle_2',162,553,580]
htilburgs wrote:I liked your idea, but with a little different buttons and moved the slider further down.
(And I don't have a problem with different thickness).
htilburgs wrote:I liked your idea, but with a little different buttons and moved the slider further down.
(And I don't have a problem with different thickness).
dutchdevil83 wrote:
//Open camera als er iemand aan de deur staat
blocks[241] = {}
blocks[241]['playsound'] = 'sounds/doorbell.mp3';
blocks[241]['openpopup'] = {}
blocks[241]['openpopup']['url'] = 'http://192.168.192.6:xxx/cgi-bin/CGIProxy.fcgi?cmd=snapPicture2&usr=xxx&pwd=xxx';
blocks[241]['openpopup']['auto_close'] = 30; //seconds
I'm trying to use this popup too.
My camera has as far as I know/been able to find only a rtsp url which won't work in this way. I do have a snapshot url, but what I want is a live feed in the popup.
In Domoticz itself, camera settings, I am able to open the live feed in a popup, the only things I entered there are the ip/username/ww/snapshot url.
Which method does Domoticz use to open the live feed in the popup, and maybe I can use that method maybe in dashticz too?

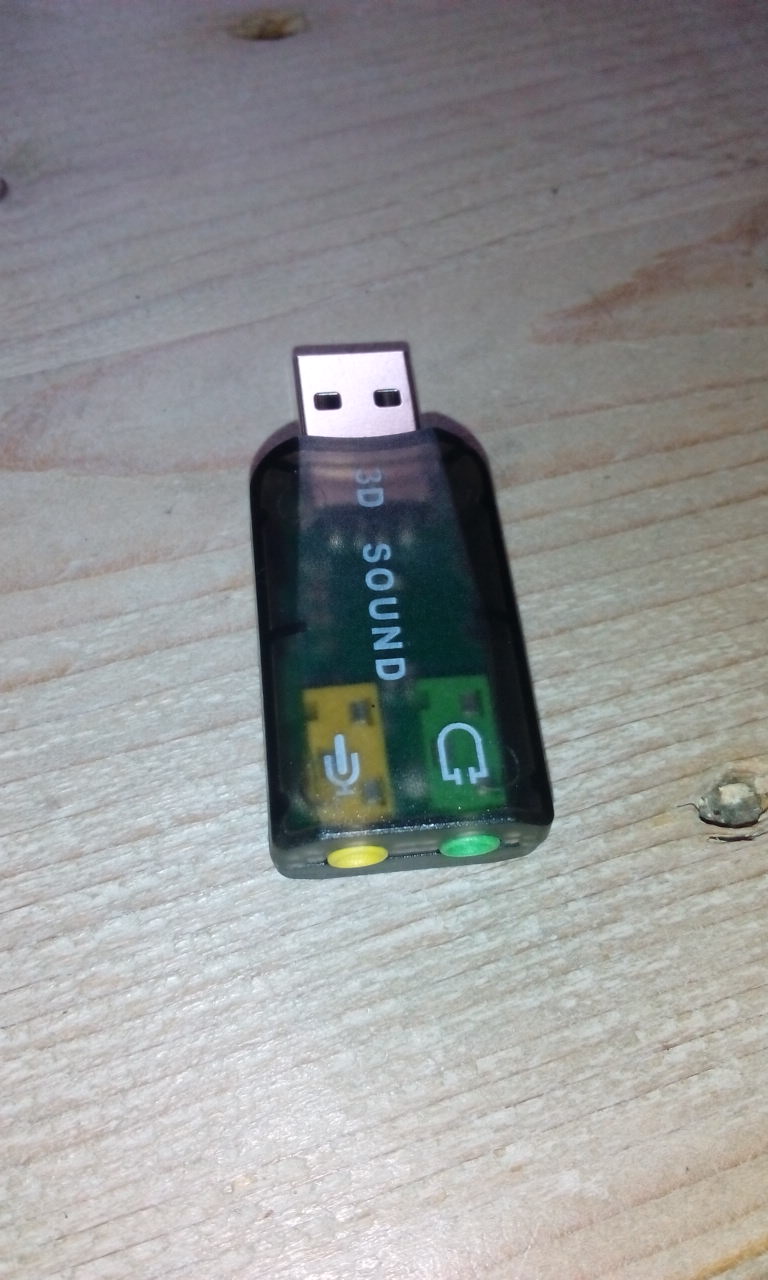

Would like to play music on the tablet on the wall to run through the raspberry usb sound card so I can adjust the volume in domoticz and then move on to the amplifier that I can control in the case of domoticz by group in and out,
Does anyone know how to make the volume in domoticz via usb sound card
ArieKanarie wrote:My camera has as far as I know/been able to find only a rtsp url which won't work in this way. I do have a snapshot url, but what I want is a live feed in the popup.
In Domoticz itself, camera settings, I am able to open the live feed in a popup, the only things I entered there are the ip/username/ww/snapshot url.
Which method does Domoticz use to open the live feed in the popup, and maybe I can use that method maybe in dashticz too?
Any luck in figuring something out? I have a Foscam camera set up and Dashticz shows a snapshot (updates every few seconds). When I click on the block, it shows the larger popup. I like your idea of moving to another screen, but ideally want a way to get video and audio. I'm not sure if it's possible. Another option could be clicking a link to open the VLC app on the ipad, which can show a livestream with audio.
