Florplan different image based on lights on or off (room goes dark if switch is off)

Post by dakipro »

Hi,
Before I switched to domoticz, I saw a very nice (fancy) feature on MajorDomo https://github.com/sergejey/majordomo and that is that you can add image overlay on the florplan based on the switch state.
Since we already have a option to drag and drop switches, it would be (in theory at least) possible to drag and drop different custom image that would be shown based on some switch state/value.

Then we could visually display if the doors are open, if the lights are on or off, if the flor is heated, perhaps outside temperature/weather (one could go nuts with creativity here...)

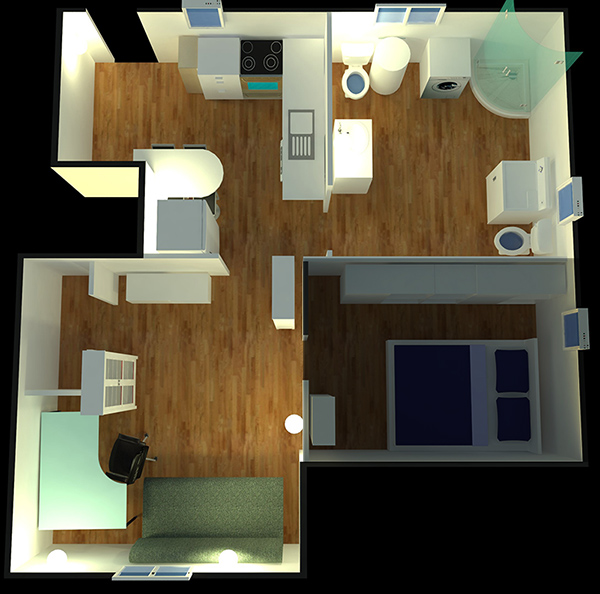

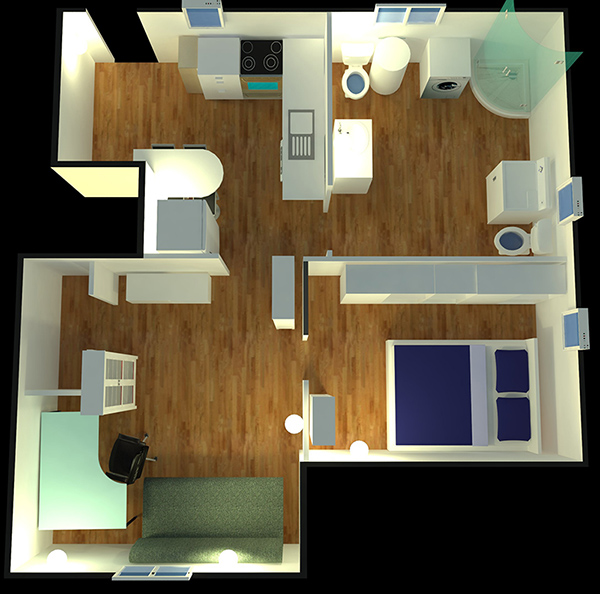

Maybe a simple option like on the attached image, lights only
Raspberry Pi 2 B - MySensors (dimmers, switches, motion, temperature, lux, humidity sensors)
zWave (220v switches)
various 433 via RFLink
Xztraz
Posts: 107
Joined: Tuesday 31 January 2017 21:54
Target OS: Raspberry Pi / ODroid
Domoticz version:
Contact:

Re: Florplan different image based on lights on or off (room goes dark if switch is off)

Post by Xztraz »

This would rock!
