Rflink Not Working at all
Moderators: leecollings, Stuntteam
-
- Posts: 17
- Joined: Thursday 12 January 2017 14:03
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Rflink Not Working at all
Hi guys,
Last week i bought a rflink gateway to connect with my raspberry pi and my somfy blinds...I have soldered all components etc. and believe me i'm experienced in soldering due to my daily work activities..i connected it to the rflink loader and could flash it to the latest fw version...tried to connect a somfy telis and a kaku switch and nothing happend after that i did some research and found out that connecting the ground of the rf connector directly to the arduino board it would work so wired a direct connection and yes it worked it was already 02.00 so i wanted to start programming the next day and so i did but this time it didnt want to pick any signal anymore...guys i give up..pfff
Last week i bought a rflink gateway to connect with my raspberry pi and my somfy blinds...I have soldered all components etc. and believe me i'm experienced in soldering due to my daily work activities..i connected it to the rflink loader and could flash it to the latest fw version...tried to connect a somfy telis and a kaku switch and nothing happend after that i did some research and found out that connecting the ground of the rf connector directly to the arduino board it would work so wired a direct connection and yes it worked it was already 02.00 so i wanted to start programming the next day and so i did but this time it didnt want to pick any signal anymore...guys i give up..pfff
Last edited by MoralKnight on Wednesday 08 February 2017 10:37, edited 2 times in total.
-
- Posts: 121
- Joined: Sunday 11 October 2015 8:50
- Target OS: Raspberry Pi / ODroid
- Domoticz version: V3.6224
- Location: Holland
- Contact:
Re: Rflink Not Working at all
It is no fun if something won't work, happens to me frequently.
But keep up beat
My rflink works, also build myself.
Without modifications
And I know that it is working for a lot of other people.
I'm afraid that no matter the skills that you have, there is something wrong with the build or maybe a component.
Not easy to say without having the device in hand.
But keep up beat
My rflink works, also build myself.
Without modifications
And I know that it is working for a lot of other people.
I'm afraid that no matter the skills that you have, there is something wrong with the build or maybe a component.
Not easy to say without having the device in hand.
RPI-2 + SSD / ESPEasy Sensors & Switches / Sonoff / RFLink / Action Switches / TP-Link switch / Node-Red / Reacticz
- Stuntteam
- Posts: 399
- Joined: Wednesday 06 May 2015 16:39
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
You could send some photos to [email protected]
-=# RFLink Gateway Development Team #=-
Introduction: http://www.nemcon.nl/blog2/
Generic RFLink Support forum: http://www.esp8266.nu/forum/viewforum.php?f=8
Introduction: http://www.nemcon.nl/blog2/
Generic RFLink Support forum: http://www.esp8266.nu/forum/viewforum.php?f=8
-
- Posts: 17
- Joined: Thursday 12 January 2017 14:03
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all

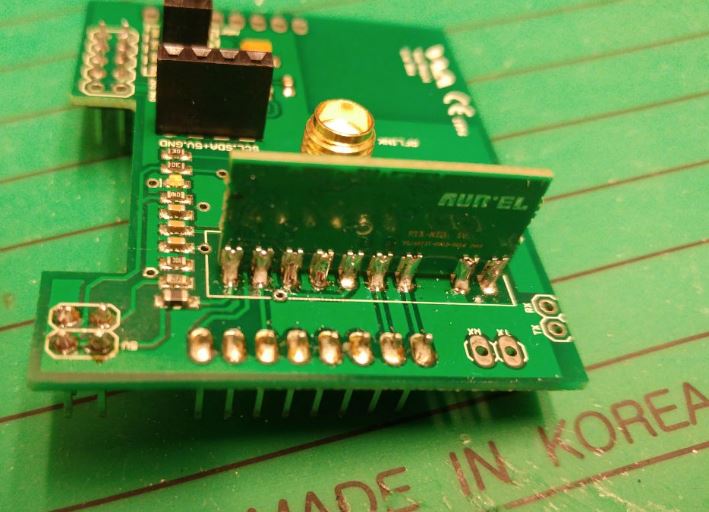

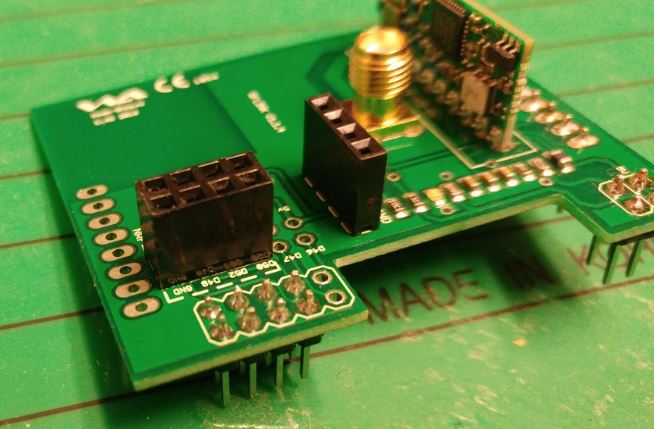

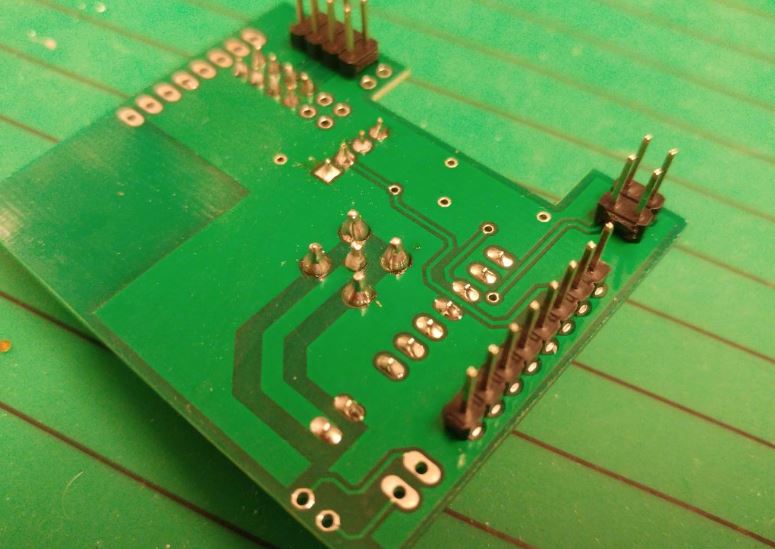

i will send some pictures tonight. The strange thing is when i made a direct connection from the ground of the antenna rf plug to the ground of the mega it worked for one day. Next day signal not been recognized anymore. I always use a ESD strapp and gloves use a great Weller soldering station with heat automation so i wont burn the board...pffff getting tired..
-
- Posts: 17
- Joined: Thursday 12 January 2017 14:03
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
NietGiftig wrote:It is no fun if something won't work, happens to me frequently.
But keep up beat
My rflink works, also build myself.
Without modifications
And I know that it is working for a lot of other people.
I'm afraid that no matter the skills that you have, there is something wrong with the build or maybe a component.
Not easy to say without having the device in hand.
I see you live in holland...I can send it to you so you can have a look..
-
- Posts: 41
- Joined: Saturday 01 November 2014 13:51
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
I seem to have the same problem.
It seems all solderings are okay, flashed the firmware R45.
If i run RFLink Loader coming in the package and switch Debug on and use an Kaku remote nothing seems to happen?
Anyone have any ideas?
My board is version 1.1.4.
It seems all solderings are okay, flashed the firmware R45.
If i run RFLink Loader coming in the package and switch Debug on and use an Kaku remote nothing seems to happen?
Anyone have any ideas?
My board is version 1.1.4.
- Stuntteam
- Posts: 399
- Joined: Wednesday 06 May 2015 16:39
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
What do you see in the rflink loader screen?
You can make a connection between pin 12 and 13, reboot, remove connection, reboot again and run normally.
This fixes some issues with eeprom settings.
You can make a connection between pin 12 and 13, reboot, remove connection, reboot again and run normally.
This fixes some issues with eeprom settings.
-=# RFLink Gateway Development Team #=-
Introduction: http://www.nemcon.nl/blog2/
Generic RFLink Support forum: http://www.esp8266.nu/forum/viewforum.php?f=8
Introduction: http://www.nemcon.nl/blog2/
Generic RFLink Support forum: http://www.esp8266.nu/forum/viewforum.php?f=8
-
- Posts: 41
- Joined: Saturday 01 November 2014 13:51
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
I can see firmware etc, tells me Some mode status and when pressing debug it writes a line of test like rfdebug on. Thats all.
Verzonden vanaf mijn iPhone met Tapatalk
Verzonden vanaf mijn iPhone met Tapatalk
- Stuntteam
- Posts: 399
- Joined: Wednesday 06 May 2015 16:39
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
cut&paste the contents.. did you try the reset method using pin12&13?
-=# RFLink Gateway Development Team #=-
Introduction: http://www.nemcon.nl/blog2/
Generic RFLink Support forum: http://www.esp8266.nu/forum/viewforum.php?f=8
Introduction: http://www.nemcon.nl/blog2/
Generic RFLink Support forum: http://www.esp8266.nu/forum/viewforum.php?f=8
-
- Posts: 41
- Joined: Saturday 01 November 2014 13:51
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
I will try tonight or this weekend!
Verzonden vanaf mijn iPhone met Tapatalk
Verzonden vanaf mijn iPhone met Tapatalk
-
- Posts: 41
- Joined: Saturday 01 November 2014 13:51
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R45;
10;version;
20;01;VER=1.1;REV=45;BUILD=09;
10;status;
20;02;STATUS;setRF433=ON;setNodoNRF=OFF;setMilight=OFF;setLivingColors=OFF;setAnsluta=OFF;setGPIO=OFF;setBLE=OFF;setMysensors=OFF;
10;rfdebug=on;
20;03;RFDEBUG=ON;
This is what it shows.
No lights on the Arduino Mega except a green light and one orange on the RFLink 1.1.4 between the SMA connector and next to the "side-cutout".
10;version;
20;01;VER=1.1;REV=45;BUILD=09;
10;status;
20;02;STATUS;setRF433=ON;setNodoNRF=OFF;setMilight=OFF;setLivingColors=OFF;setAnsluta=OFF;setGPIO=OFF;setBLE=OFF;setMysensors=OFF;
10;rfdebug=on;
20;03;RFDEBUG=ON;
This is what it shows.
No lights on the Arduino Mega except a green light and one orange on the RFLink 1.1.4 between the SMA connector and next to the "side-cutout".
-
- Posts: 17
- Joined: Thursday 12 January 2017 14:03
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
Like you can see soldering isnt the problem. I again checked all soldering islands and they were perfect even the multimeter confirmed good conenction..What do you mean with connecting pin 12 and 13?
To be honoust i am already working a couple off days with this rflink board to get it to work and i am getting frustrated and otherwise i have to see this as a failure and accept the fact my money goes trough the drain and buy a rfxcom trx433e transceiver:?
To be honoust i am already working a couple off days with this rflink board to get it to work and i am getting frustrated and otherwise i have to see this as a failure and accept the fact my money goes trough the drain and buy a rfxcom trx433e transceiver:?
Last edited by MoralKnight on Thursday 09 February 2017 21:19, edited 1 time in total.
-
- Posts: 17
- Joined: Thursday 12 January 2017 14:03
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all

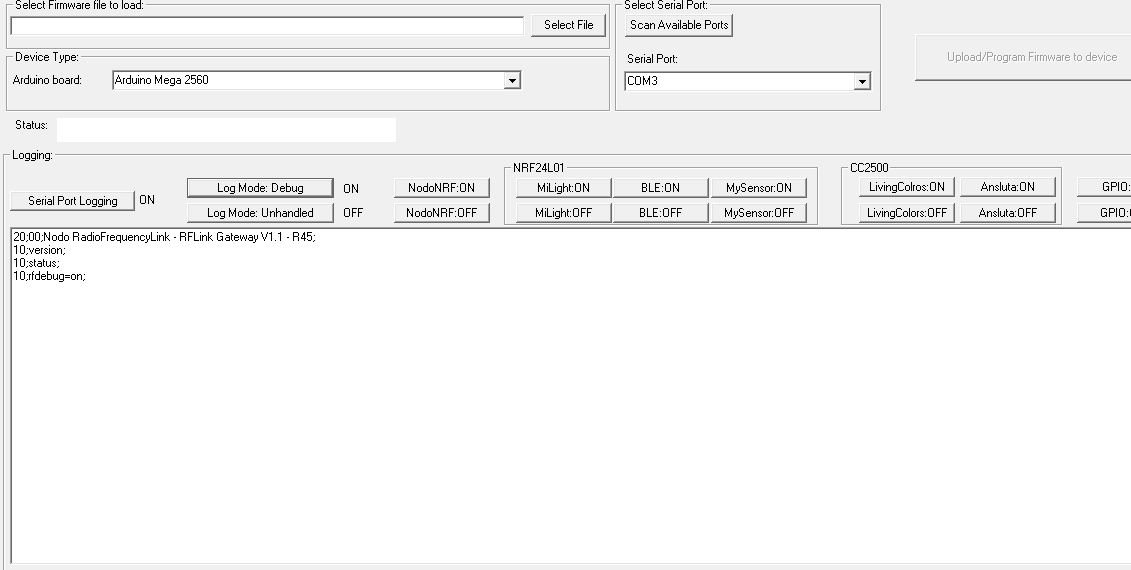

this is what i see and not 1 single signal is getting picked up... Tried the somfy telis remote and a wireless KAKU switch...
- Attachments
-
- 7.JPG (64.28 KiB) Viewed 8924 times
-
- Posts: 41
- Joined: Saturday 01 November 2014 13:51
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
I see the same now, i saw some more but after some fidling around i pulled the RFLink board when the Arduino was Powered from USB..... any thoughts?MoralKnight wrote:this is what i see and not 1 single signal is getting picked up... Tried the somfy telis remote and a wireless KAKU switch...
Verzonden vanaf mijn iPhone met Tapatalk
-
- Posts: 62
- Joined: Thursday 18 September 2014 20:28
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
Hi,
just purchased and nothing works... trying to debug via minicom, but I get that:
After the initial 20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R45; I don't get nothing.
Purchased with soldering option.
Exist an option to hard reset the arduino board to empty state?
EDIT:
Downgraded to version 43, something works:
So, why only R43 works and R44 and R45 no?
just purchased and nothing works... trying to debug via minicom, but I get that:
Code: Select all
root@domo:~/download/RFLink_v1.1_r45# minicom
Welcome to minicom 2.6.1
OPTIONS: I18n
Compiled on Apr 28 2012, 19:24:31.
Port /dev/ttyACM0
Press CTRL-A Z for help on special keys
20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R45;
10;VERSION;
10;RFDEBUG=ON;
10;STATUS;
Purchased with soldering option.
Exist an option to hard reset the arduino board to empty state?
EDIT:
Downgraded to version 43, something works:
Code: Select all
2017-02-09 23:53:38.281 RFLink: Serial Worker stopped...
2017-02-09 23:53:43.187 RFLink: Using serial port: /dev/ttyACM0
2017-02-09 23:53:44.106 RFLink: 20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R45;
2017-02-09 23:53:44.106 RFLink: Controller Initialized!...
2017-02-09 23:54:13.558 User: initiated a RFLink Device Create command: 10;VERSION;
2017-02-09 23:54:18.000 Error: RFLink: TX time out...
2017-02-09 23:54:28.009 RFLink: Serial Worker stopped...
2017-02-09 23:56:30.071 RFLink: Using serial port: /dev/ttyACM0
2017-02-09 23:56:30.993 RFLink: 20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R44;
2017-02-09 23:56:30.994 RFLink: Controller Initialized!...
2017-02-09 23:56:45.094 User: initiated a RFLink Device Create command: 10;VERSION;
2017-02-09 23:56:50.000 Error: RFLink: TX time out...
2017-02-09 23:57:00.086 RFLink: Serial Worker stopped...
2017-02-09 23:59:35.277 RFLink: Using serial port: /dev/ttyACM0
2017-02-09 23:59:36.197 RFLink: 20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R43;
2017-02-09 23:59:36.197 RFLink: Controller Initialized!...
2017-02-09 23:59:36.272 RFLink: 20;01;VER=1.1;REV=43;BUILD=0a;
2017-02-09 23:59:36.273 RFLink Detected, Version: 1.1 Revision: 43 Build: 0
2017-02-09 23:59:58.927 User: initiated a RFLink Device Create command: 10;VERSION;
2017-02-09 23:59:59.003 RFLink: 20;02;VER=1.1;REV=43;BUILD=0a;
2017-02-09 23:59:59.003 RFLink Detected, Version: 1.1 Revision: 43 Build: 0
2017-02-10 00:00:14.144 RFLink: 20;03;Eurochron;ID=0002;TEMP=0037;HUM=0e;
2017-02-10 00:00:14.145 (RFLink) Temp + Humidity (Eurochron)
- Stuntteam
- Posts: 399
- Joined: Wednesday 06 May 2015 16:39
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
When you only see this:
20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R45;
10;VERSION;
10;RFDEBUG=ON;
10;STATUS;
you have to reset the eeprom.
make a connection between pin 12 and 13, reboot, remove the connection, reboot again and r44 andr45 will work.
20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R45;
10;VERSION;
10;RFDEBUG=ON;
10;STATUS;
you have to reset the eeprom.
make a connection between pin 12 and 13, reboot, remove the connection, reboot again and r44 andr45 will work.
-=# RFLink Gateway Development Team #=-
Introduction: http://www.nemcon.nl/blog2/
Generic RFLink Support forum: http://www.esp8266.nu/forum/viewforum.php?f=8
Introduction: http://www.nemcon.nl/blog2/
Generic RFLink Support forum: http://www.esp8266.nu/forum/viewforum.php?f=8
-
- Posts: 17
- Joined: Thursday 12 January 2017 14:03
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all

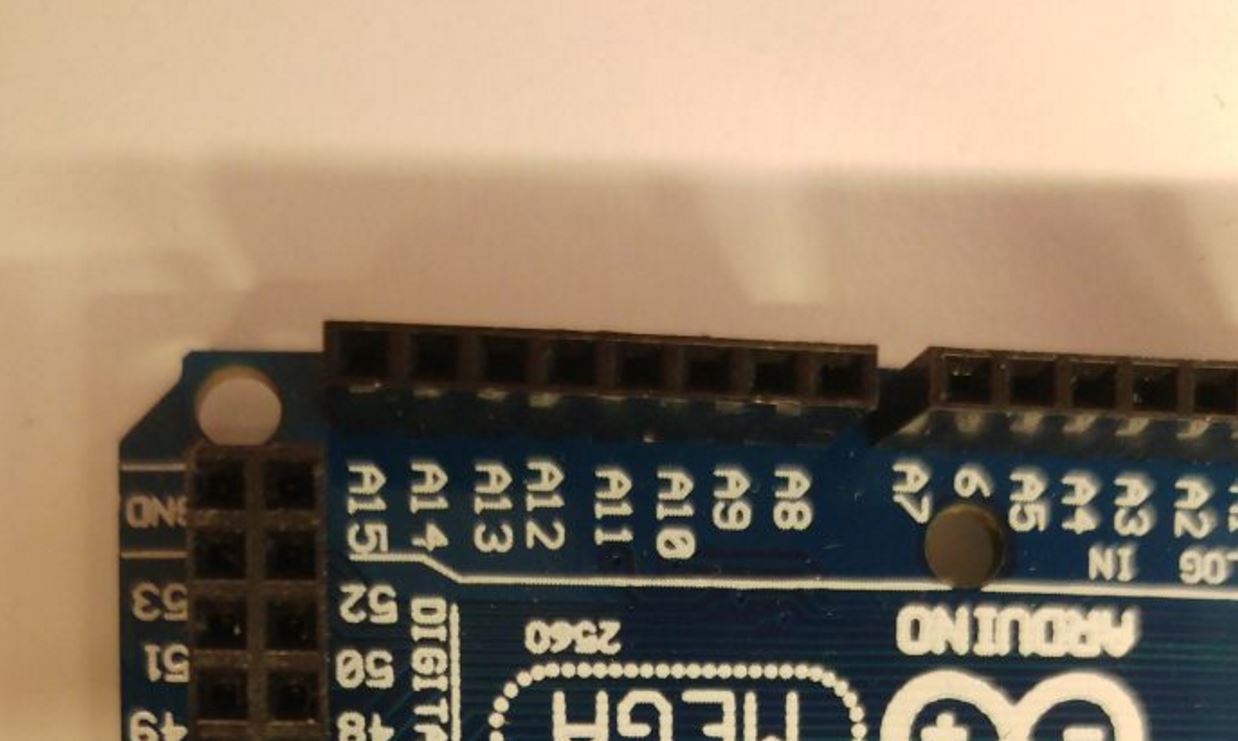

Do you mean 12 and 13 on the arduino board? And do i have make a temp connection between does 2 points?Stuntteam wrote:When you only see this:
20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R45;
10;VERSION;
10;RFDEBUG=ON;
10;STATUS;
you have to reset the eeprom.
make a connection between pin 12 and 13, reboot, remove the connection, reboot again and r44 andr45 will work.
Thanks
- Attachments
-
- arduino.JPG (82.17 KiB) Viewed 8850 times
- Stuntteam
- Posts: 399
- Joined: Wednesday 06 May 2015 16:39
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
Yes, but use the 12&13 near the USB connector
-=# RFLink Gateway Development Team #=-
Introduction: http://www.nemcon.nl/blog2/
Generic RFLink Support forum: http://www.esp8266.nu/forum/viewforum.php?f=8
Introduction: http://www.nemcon.nl/blog2/
Generic RFLink Support forum: http://www.esp8266.nu/forum/viewforum.php?f=8
-
- Posts: 62
- Joined: Thursday 18 September 2014 20:28
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
Thankyou, now it works
-
- Posts: 41
- Joined: Saturday 01 November 2014 13:51
- Target OS: Raspberry Pi / ODroid
- Domoticz version:
- Contact:
Re: Rflink Not Working at all
Hi,
After sending Nodo-shop a request with build guide for the 1.1.4 board if found out that there should be a 5x2 header in the bottom right corner of the board. I used the 1.1.3 guide from YouTube to build my board. Anyhow i inserted 2 extra pins and have solderd them in place.
Reset the EEPROM and loaded R45 again with no succes, see the result is see in RFLink Loader 1.09:
20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R45;
10;version;
20;01;VER=1.1;REV=45;BUILD=09;
10;status;
20;02;STATUS;setRF433=ON;setNodoNRF=OFF;setMilight=OFF;setLivingColors=OFF;setAnsluta=OFF;setGPIO=OFF;setBLE=OFF;setMysensors=OFF;
When Log mode On is pressed following:
20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R45;
10;version;
20;01;VER=1.1;REV=45;BUILD=09;
10;status;
20;02;STATUS;setRF433=ON;setNodoNRF=OFF;setMilight=OFF;setLivingColors=OFF;setAnsluta=OFF;setGPIO=OFF;setBLE=OFF;setMysensors=OFF;
10;rfdebug=on;
20;03;RFDEBUG=ON;
When my Kaku ATMT-502 remote and AWMT-003 remote's used nothing shows up?
What am i doing wrong?
After sending Nodo-shop a request with build guide for the 1.1.4 board if found out that there should be a 5x2 header in the bottom right corner of the board. I used the 1.1.3 guide from YouTube to build my board. Anyhow i inserted 2 extra pins and have solderd them in place.
Reset the EEPROM and loaded R45 again with no succes, see the result is see in RFLink Loader 1.09:
20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R45;
10;version;
20;01;VER=1.1;REV=45;BUILD=09;
10;status;
20;02;STATUS;setRF433=ON;setNodoNRF=OFF;setMilight=OFF;setLivingColors=OFF;setAnsluta=OFF;setGPIO=OFF;setBLE=OFF;setMysensors=OFF;
When Log mode On is pressed following:
20;00;Nodo RadioFrequencyLink - RFLink Gateway V1.1 - R45;
10;version;
20;01;VER=1.1;REV=45;BUILD=09;
10;status;
20;02;STATUS;setRF433=ON;setNodoNRF=OFF;setMilight=OFF;setLivingColors=OFF;setAnsluta=OFF;setGPIO=OFF;setBLE=OFF;setMysensors=OFF;
10;rfdebug=on;
20;03;RFDEBUG=ON;
When my Kaku ATMT-502 remote and AWMT-003 remote's used nothing shows up?
What am i doing wrong?
Who is online
Users browsing this forum: No registered users and 1 guest
