[RELEASED] Python plugin to control Onkyo receivers

[rizzah]

@jorgh, @jimmy

Thanks for your help! It didn't work after your last post Jorgh, so i did a bit of googling on python scripts and domoticz. Came across (https://www.domoticz.com/wiki/Using_Python_plugins) turned out i did not have python3 installed yet. After i installed it i saw the new hardware.

One more thing, i see it uses auto scan feature, this is of course super handy, if you have a single ip-network. However i use different vlans, so a scan wont work. Is it possible to manually add an IP-adress/port?

Thanks again!
Peter

[JimmyH1969]

Good to see you again jorgh, hope you are allright.
Can we expect any changes to the plugin in the (near) feature?

@JimmyH1969,

I've configured an internet radio station, to look into the internet radio request. However, it's clearly implemented differently from the normal radio presets. I've not yet figured out how to list the presets and select them. If anyone has info on this it would be helpful.
It should be possible, as the Onkyo app is able to do it.

Regards,

Jorg

Hi Jorg,

Looking at the ISCP commands, selecting presets is done by:

"NPR" - Internet Radio Preset Command
"01"-"28" sets Preset No. 1 - 40 ( In hexadecimal representation)
"SET" preset memory current station

How to enummerate them seems abacadabra to me

[JimmyH1969]

Jorg. Is it possible to create just a switch to select the internet radio preset? To do this now i'm using a external executable. The downsite is that if i use that external execuatble it seems that your plugin loses it connection to the receiver and the plugin needs to be restarted.

[jake]

@Jorg,

Just dialing in to tell you that the plugin in the current state is working fine in my setup. It's in use every day, even to such an extent that when dzVents was disabled for some reason, my wife didn't remember anymore how to operate the receiver since Domoticz with your plugin takes care of that normally.

So a thumbs up from my side!

[JimmyH1969]

I agree, the plugin is great. Expanding functionality would be great, so maybe just another request to add to my whislist .....

Would it be possible to create something to send any command to the receiver?
Like sending the command "MVLUP" for example using a LUA script or something?

[dwmw2]

Hi Jorgh,

It looks like you did this around the same time I did — in February I started putting together Onkyo support too, which got merged into the latest stable release of Domoticz. It's native C++ support, because I'm running in a resource-constrained environment (an OpenWRT router) and the dependencies for Python are huge. If we could have lua plugins, that would be much nicer!

You've got a bit further than me though; you have supported the NRIQSTN command and parsed the XML to create the devices automatically.
Would you be interested in merging the extra support you have into Domoticz itself?

EDIT 2017-11-25:

I've just added the XML status support to the native hardware support: https://github.com/domoticz/domoticz/pull/1960

[JimmyH1969]

Hi dwmw2,

I have been testing your Onkyo native plugin in my Test Domoticz environment and it works really wel,
When i look at the Domoticz log when playing Spotify on the receiver, i see a lot of these messages:

Code: Select all

2017-11-28 13:48:43.552 OnkyoAVTCP: Packet received: 21 NTM00:02:06/00:02:11
2017-11-28 13:48:44.602 OnkyoAVTCP: Packet received: 21 NTM00:02:07/00:02:11
2017-11-28 13:48:45.652 OnkyoAVTCP: Packet received: 21 NTM00:02:08/00:02:11
2017-11-28 13:48:46.702 OnkyoAVTCP: Packet received: 21 NTM00:02:09/00:02:11
2017-11-28 13:48:47.752 OnkyoAVTCP: Packet received: 21 NTM00:02:10/00:02:11
2017-11-28 13:48:48.802 OnkyoAVTCP: Packet received: 21 NTM00:02:11/00:02:11
2017-11-28 13:48:49.852 OnkyoAVTCP: Packet received: 6 NJAn-
2017-11-28 13:48:49.852 OnkyoAVTCP: Packet received: 7 NSTP--
2017-11-28 13:48:49.852 OnkyoAVTCP: Packet received: 15 NATSt. Vincent
2017-11-28 13:48:49.852 OnkyoAVTCP: Packet received: 17 NALStrange Mercy
2017-11-28 13:48:49.852 OnkyoAVTCP: Packet received: 15 NTICheerleader
2017-11-28 13:48:49.853 OnkyoAVTCP: Packet received: 14 NMSxxxxxS10A
2017-11-28 13:48:49.853 OnkyoAVTCP: Packet received: 6 NJAn-
2017-11-28 13:48:49.853 OnkyoAVTCP: Packet received: 21 NTM--:--:--/00:02:11
2017-11-28 13:48:50.902 OnkyoAVTCP: Packet received: 21 NTM00:00:01/00:03:28
2017-11-28 13:48:50.902 OnkyoAVTCP: Packet received: 252

So it is actually catching the events the receiver is sending. Is it (going to be) possible to use these events and put them in a text sensor for example?
NAT = Artist Name, NAL = Album Name, NTI = Title and NTM = Time info. I think adding these to variables would be great if possible.
Also sending RAW commands to the receiver would be great. The volume slider for example is tricky for the ears, so i would like to send a MVLUP for example. The possibility to select Internet Radio presets would be great as well. I also asked Jorgh if that's gonna be possible.
Expanding functionallity would be great i think.

Thanks!

[dwmw2]

So it is actually catching the events the receiver is sending. Is it (going to be) possible to use these events and put them in a text sensor for example?
NAT = Artist Name, NAL = Album Name, NTI = Title and NTM = Time info. I think adding these to variables would be great if possible.

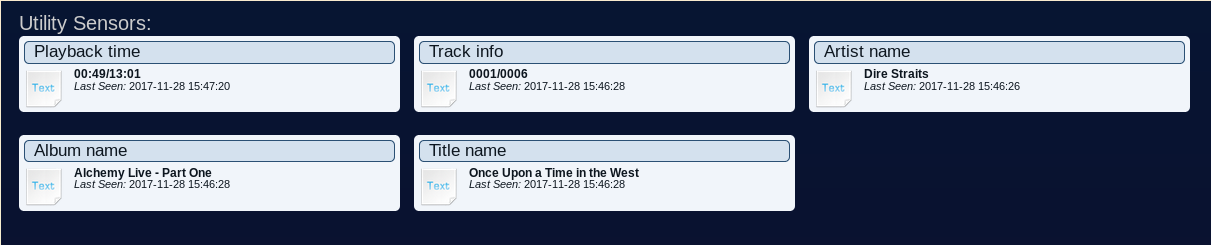

https://github.com/domoticz/domoticz/pull/1971

Also sending RAW commands to the receiver would be great. The volume slider for example is tricky for the ears, so i would like to send a MVLUP for example. The possibility to select Internet Radio presets would be great as well.

https://github.com/dwmw2/domoticz/commits/onkyo-cmd

Code: Select all

http://${DOMOTICZ}/json.htm?type=command&param=onkyoeiscpcommand&idx=${IDX}&action=MVLUP

Where ${IDX} is any logical device belonging to the Onkyo. And `MVLUP` is any command you want to send (needs to be an admin user).

[Varazir]

I'm getting this in my log, nothing shows in the device list.

Code: Select all

2017-11-28 22:44:19.485 (Onkyo) Started.
2017-11-28 22:44:20.691 (Onkyo) Initialized version 0.2.1, author 'jorgh'
2017-11-28 22:44:20.691 (Onkyo) Entering work loop.
2017-11-28 22:44:32.244 (Onkyo) Receiver found:
2017-11-28 22:44:32.245 (Onkyo) Type: AV Receiver or Stereo Receiver
2017-11-28 22:44:32.245 (Onkyo) Type: TX-NR509
2017-11-28 22:44:32.245 (Onkyo) Region: European or Asian model
2017-11-28 22:44:32.245 (Onkyo) IP adress: 192.168.2.30
2017-11-28 22:44:32.245 (Onkyo) eISCP port: 60128
2017-11-28 22:44:32.246 (Onkyo) MAC: 0009B0C6F4D6
2017-11-28 22:44:34.229 (Onkyo) Loading XML from file
2017-11-28 22:44:34.241 (Onkyo) XML file does not yet exist
2017-11-28 22:44:36.207 (Onkyo) Loading XML from file
2017-11-28 22:44:36.208 (Onkyo) XML file does not yet exist
2017-11-28 22:44:38.215 (Onkyo) Loading XML from file
2017-11-28 22:44:38.216 (Onkyo) XML file does not yet exist
2017-11-28 22:44:40.224 (Onkyo) Loading XML from file
2017-11-28 22:44:40.225 (Onkyo) XML file does not yet exist
2017-11-28 22:44:42.237 (Onkyo) Loading XML from file
2017-11-28 22:44:42.238 (Onkyo) XML file does not yet exist

[JimmyH1969]

https://github.com/dwmw2/domoticz/commits/onkyo-cmd

Code: Select all

http://${DOMOTICZ}/json.htm?type=command&param=onkyoeiscpcommand&idx=${IDX}&action=MVLUP

Where ${IDX} is any logical device belonging to the Onkyo. And `MVLUP` is any command you want to send (needs to be an admin user).

Awesome... This probably works after the commit i guess

[dwmw2]

Awesome... This probably works after the commit i guess

Yep, once https://github.com/domoticz/domoticz/pull/1971 is merged, I think it should end up in the next beta build.

I've updated the wiki page at https://www.domoticz.com/wiki/Onkyo

[pj-r]

Idea: receivers that doest support NRI. Could we create one monster json file that defines all the receivers and what those are supporting. Then another where user can configure everything that comes in xml with NRI command?
Or event better: UI to configure the device? So the basic conf and capabilities comes from json file and the rest user could configure?

Or is it just easier for everyone to buy new receiver

I'm getting this in my log, nothing shows in the device list.

TX-NR509 does not support NRI-command so its not supported by now. 424, 525, 626... is the first series that supports the NRI command. Google for ISCP_AVR_134.xlsx its a excel file that has information what receiver supports what functionality.

[dwmw2]

Idea: receivers that doest support NRI. Could we create one monster json file that defines all the receivers and what those are supporting.

https://github.com/miracle2k/onkyo-eiscp has that in a machine-readable form already. See
https://github.com/miracle2k/onkyo-eisc ... 3/NT3.yaml for example.

If a receiver doesn't support NRI, how do we know what its model is?

[pj-r]

https://github.com/miracle2k/onkyo-eiscp has that in a machine-readable form already. See
https://github.com/miracle2k/onkyo-eisc ... 3/NT3.yaml for example.

Ah, nice. Makes things easier

If a receiver doesn't support NRI, how do we know what its model is?

Looks like some supported command(perhaps ECN, discovery) already gets that info:

Code: Select all

2017-11-28 22:44:32.245 (Onkyo) Type: AV Receiver or Stereo Receiver
2017-11-28 22:44:32.245 (Onkyo) Type: TX-NR509

I'm getting this in my log, nothing shows in the device list.

Code: Select all

2017-11-28 22:44:19.485 (Onkyo) Started.
2017-11-28 22:44:20.691 (Onkyo) Initialized version 0.2.1, author 'jorgh'
2017-11-28 22:44:20.691 (Onkyo) Entering work loop.
2017-11-28 22:44:32.244 (Onkyo) Receiver found:
2017-11-28 22:44:32.245 (Onkyo) Type: AV Receiver or Stereo Receiver
2017-11-28 22:44:32.245 (Onkyo) Type: TX-NR509
2017-11-28 22:44:32.245 (Onkyo) Region: European or Asian model
2017-11-28 22:44:32.245 (Onkyo) IP adress: 192.168.2.30
2017-11-28 22:44:32.245 (Onkyo) eISCP port: 60128
2017-11-28 22:44:32.246 (Onkyo) MAC: 0009B0C6F4D6
2017-11-28 22:44:34.229 (Onkyo) Loading XML from file
2017-11-28 22:44:34.241 (Onkyo) XML file does not yet exist
2017-11-28 22:44:36.207 (Onkyo) Loading XML from file
2017-11-28 22:44:36.208 (Onkyo) XML file does not yet exist
2017-11-28 22:44:38.215 (Onkyo) Loading XML from file
2017-11-28 22:44:38.216 (Onkyo) XML file does not yet exist
2017-11-28 22:44:40.224 (Onkyo) Loading XML from file
2017-11-28 22:44:40.225 (Onkyo) XML file does not yet exist
2017-11-28 22:44:42.237 (Onkyo) Loading XML from file
2017-11-28 22:44:42.238 (Onkyo) XML file does not yet exist

[jorgh]

@pr-j, @dwmw2,

That is actually not a bad idea. The receiver type is delivered by the discovery. We could add an XML file per receiver model number that does not support NRI, and load the XML from file instead of the receiver.

Regards,

Jorg

[dwmw2]

That is actually not a bad idea. The receiver type is delivered by the discovery. We could add an XML file per receiver model number that does not support NRI, and load the XML from file instead of the receiver.

Ah yes, I hadn't noticed it; the built-in support doesn't do discovery yet and is just configured with the IP/port of the receiver. I should add that. It looks like it doesn't respond to ECNQSTN on the TCP connection; only UDP.

What we don't have is a per-model list of the available inputs (SLI command). Perhaps we could learn those as we go along, when one of them is seen — like your plugin already does for listening modes?

[rizzah]

Is there a command we can give to get the whole list and send it somewhere?

[dwmw2]

get

We probably just need to iterate over the known SLIxx commands and see which ones elicit a SLIN/A error response, and which ones work.

[rizzah]

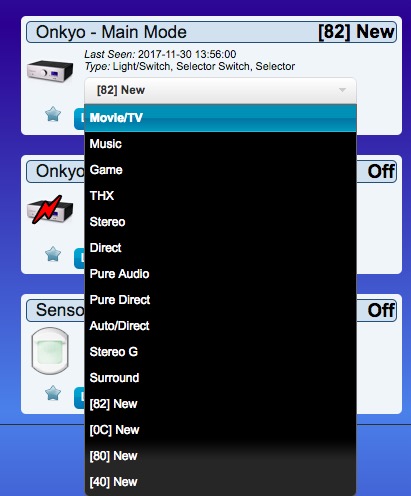

Ok, im not sure if this has anything to do with it, but i thought it did, when i look at my Onkyo Main Mode, i see it catched alot, but not all (see screenshot).

Screen Shot 2017-11-30 at 16.21.27.jpg (52.25 KiB) Viewed 4316 times

[Varazir]

I know my AVR isn't supported but just letning you know who it looks now with 3.8759 and plugin 0.2.1

Code: Select all

2017-12-01 10:29:14.711 (OnkyoPlugin) Started.
2017-12-01 10:29:25.965 (OnkyoPlugin) Calling message handler 'onHeartbeat'.
2017-12-01 10:29:25.965 (OnkyoPlugin) onHeartbeat called
2017-12-01 10:29:25.966 (OnkyoPlugin) Creating UDP Socket for sending/receiving discovery data
2017-12-01 10:29:25.967 (OnkyoPlugin) UDP Socket created succesfully
2017-12-01 10:29:25.967 (OnkyoPlugin) Sending UDP discovery packet
2017-12-01 10:29:25.968 (OnkyoPlugin) UDP Discovery packet send succesfully
2017-12-01 10:29:27.978 (OnkyoPlugin) Calling message handler 'onHeartbeat'.
2017-12-01 10:29:27.978 (OnkyoPlugin) onHeartbeat called
2017-12-01 10:29:27.979 (OnkyoPlugin) Checking if discovery data has been received
2017-12-01 10:29:27.980 (OnkyoPlugin) Receiver found:
2017-12-01 10:29:27.980 (OnkyoPlugin) Type: AV Receiver or Stereo Receiver
2017-12-01 10:29:27.981 (OnkyoPlugin) Type: TX-NR509
2017-12-01 10:29:27.981 (OnkyoPlugin) Region: European or Asian model
2017-12-01 10:29:27.981 (OnkyoPlugin) IP adress: 192.168.2.30
2017-12-01 10:29:27.981 (OnkyoPlugin) eISCP port: 60128
2017-12-01 10:29:27.982 (OnkyoPlugin) MAC: 0009B0C6F4D6
2017-12-01 10:29:27.982 (OnkyoPlugin) Connecting to Receiver
2017-12-01 10:29:29.940 (OnkyoPlugin) Calling message handler 'onHeartbeat'.
2017-12-01 10:29:29.940 (OnkyoPlugin) onHeartbeat called
2017-12-01 10:29:31.946 (OnkyoPlugin) Calling message handler 'onHeartbeat'.
