How to add Max! wall sensors or radiator sensors to floor plan ?

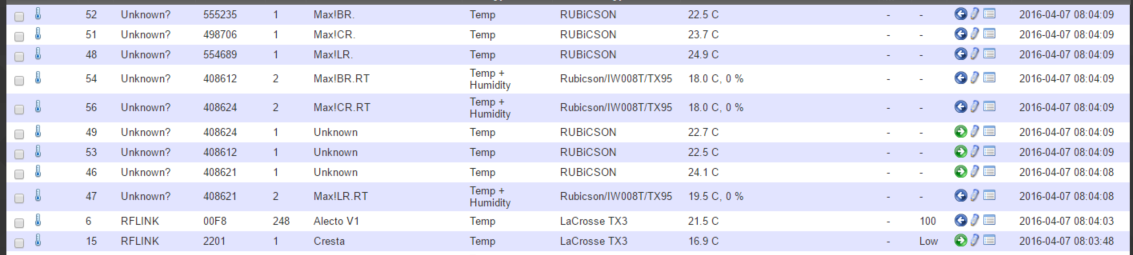

I see sensors in devices and sensors are added as used.

devices list.png (111.98 KiB) Viewed 3485 times

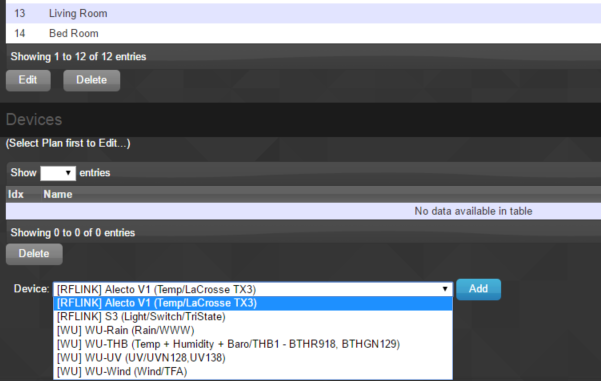

but in room plan edit I see only devices from rflink.

room edit.png (59.19 KiB) Viewed 3485 times

Thanks for help

R

[blackdog65]

Hiya,

The ELV Max! isn't (yet) seen directly by domoticz. You need to create a dummy device in hardware, mine is called "EQ3" and note its idx (left column) then in the .maxbuddy/scripts folder, edit the .js file to your ip/port and the dummy idx/HID.

See here viewtopic.php?f=34&t=841&start=20#p15912 for some better advice/tips.

Then your ELV Max! devices should start to show in devices. A word of advice, add them one at a time so that you know which is which.

Sean

[Westcott]

Hi all,
I'm starting to be able to read directly from the Cube using Lua and a tcp socket.
So far I can get the Cube's raw response - next to decode it in Lua.
Then to try sending an 's' command.

Huge thanks to whoever wrote the PiHeating Python code, it really got me started.

[blackdog65]

Wow Westcott!
Great to hear. This section has been so lifeless recently that I almost ( almost ) decided to look into Evo Home
I look forward to seeing how you get on and trying it

Sean

[mvzut]

Hi all,
I'm starting to be able to read directly from the Cube using Lua and a tcp socket.
So far I can get the Cube's raw response - next to decode it in Lua.
Then to try sending an 's' command.

Huge thanks to whoever wrote the PiHeating Python code, it really got me started.

Any news on this Westcott? I would love to have direct support for the Cube in Domoticz. Most other main home automation packages have it, and I really think it could boost interest in both Domoticz and the ELV Max! System.
Once you have something beta ready, I would be more than happy to help you test it.

P.S. I think I saw the code for the ELV Max! Cube binding for OpenHAB somewhere, they already worked out all the decoding. Maybe this can help? If I was a programmer myself, and if I had more time, I would have loved to help myself...
EDIT: it's at https://github.com/openhab/openhab/tree ... ng.maxcube

[Westcott]

Hi Mvzut,

Thanks for your interest!
My Cube broke, it wouldn't power up any more.
I've returned it to Conrad, but no response yet.
Thanks for the OpenHab mention, yes I've found a couple of similar descriptions.
My decoding of a single valve is almost complete.
Once I get a working Cube again, I can move to sending commands.

[blackdog65]

Hiya,
I think you'll find more than 1 waiting with interest
I'm holding my breath!

[Westcott]

Hi all of you holding your breaths,

If I post some code here, could you try it for me, please?
Unfortunately there is quite a bit of setup first, to get the necessary Lua libraries installed.

[mvzut]

Hi all of you holding your breaths,

If I post some code here, could you try it for me, please?
Unfortunately there is quite a bit of setup first, to get the necessary Lua libraries installed.

Yes no problem, glad to contribute! Assuming you will give some explanation on the installation of the libraries.

[Westcott]

OK, here we go.
I think this is how I did it...
First you need to update Lua to 5.2.
Then get the 'lua-socket' library, and the 'luarocks' installer/manager app.
Finally some 'luarocks' need to be installed.
The last step is a list of the installed 'rocks'.
Each step has to be successful before the next can run, I had a +lot+ of Googling to do here, and might have forgotten some bits.

Code: Select all

sudo apt-get install lua5.2
sudo apt-get install lua-socket
sudo apt-get install luarocks
sudo luarocks install luasec
sudo luarocks install luasocket
sudo luarocks install basexx

luarocks list

Installed rocks:
----------------

basexx
   0.3.0-1 (installed) - /usr/local/lib/luarocks/rocks

luasec
   0.6-1 (installed) - /usr/local/lib/luarocks/rocks

luasocket
   3.0rc1-2 (installed) - /usr/local/lib/luarocks/rocks

[mvzut]

I got stuck at the installation of the luasec rock, it complained about openssl.a or openssl.so or openssl.so.* not found. Openssl is installed on my system, but the files appeared to be in a non-standard location. Here's what I did to solve this:

Code: Select all

sudo mkdir /usr/local/ssl
sudo cp /usr/lib/arm-linux-gnueabihf/libssl.* /usr/local/ssl
sudo luarocks install luasec OPENSSL_LIBDIR=/usr/local/ssl

Let us know when you have a script to test!

[Westcott]

Nice one!
This might also work, before luasec -
sudo apt-get install libssl-dev

[mvzut]

Nice one!
This might also work, before luasec -
sudo apt-get install libssl-dev

Tried that first, said it was already installed?!

[Westcott]

Another possible way, watch out for the reverse quotes -
sudo luarocks install luasec OPENSSL_LIBDIR=/usr/lib/`gcc -print-multiarch`

[mvzut]

Another possible way, watch out for the reverse quotes -
sudo luarocks install luasec OPENSSL_LIBDIR=/usr/lib/`gcc -print-multiarch`

OK, but my solution was also ok, right? At least I have eveything installed now.

[blackdog65]

Hi again,
Just installed the lua libraries (same install problem) all good to go

[jorishp]

Everything is installed. Can't wait to start testing.

[Westcott]

Gosh, that makes - um - 3 of you!
Here is some Lua code, save it to a file somewhere, and run it interactively: 'lua yourfilename'
Then please copy the result back to here, together with a brief description of your Max devices.
You'll need to put your Cube's IP name/addr in the code.
Hopefully it will read the 'L response' ("Device List") from your cube.

Code: Select all

local socket = require "socket"
local basexx = require "basexx"

--MaxIP='172.16.176.26'
MaxIP='KEQ0817132'
MaxPort=62910

function maxCmd_H(data)
--	print('H='..data)
end

function maxCmd_M(data)
--	print('M='..data)
end

function maxCmd_C(data)
--	print('C='..data)
end

function maxCmd_L(data)
print('L='..data)
	dec = basexx.from_base64(data)
	hex = basexx.to_hex(dec)
--	print("Hex="..hex)
	s = hex:sub(1,2)
	data_len  = tonumber(s,16) + 1
	valve_adr = hex:sub(3,8)
	valve_info = hex:sub(13,14)
	batt = bit32.extract(valve_info,7,1)
	bst  = bit32.extract(valve_info,3,1)
	mode = bit32.extract(valve_info,1,2)
print("Len="..data_len, "Adr="..valve_adr, "batt="..batt, "bst="..bst, "mode="..mode)

    if (data_len == 13) then	-- WallMountedThermostat (dev_type 3)
print("Wall thermostat")
	elseif (data_len == 12) then -- HeatingThermostat (dev_type 1 or 2)
		s = hex:sub(15,16)
		valve_pos = tonumber(s,16)
		s = hex:sub(17,18)
		setpoint = tonumber(s,16) / 2
		s = hex:sub(21,22)
		temp = tonumber(s,16) / 10
print("Valve pos="..valve_pos, "Setpoint="..setpoint, "Temp="..temp)
	end

end

local tcp = socket.connect(MaxIP, MaxPort)

if not tcp then
	print("Socket connect failed for "..MaxIP..':'..MaxPort)
	return
end

tcp:settimeout(2)

while true do
    s, status, partial = tcp:receive()

    if (status) then
		print("TCP receive - "..status)
		break
	end

    local line = (s or partial)
	local cmd  = line:sub(1,1)
	local data = line:sub(3)

	if (cmd == 'H') then
		maxCmd_H(data)
	elseif (cmd == 'M') then
		maxCmd_M(data)
	elseif (cmd == 'C') then
		maxCmd_C(data)
	elseif (cmd == 'L') then
		maxCmd_L(data)
		break
	end
end

tcp:close()

[jorishp]

tried it but this is my output

Code: Select all

pi@raspberrypi ~ $ lua max.lua
lua: max.lua:1: module 'socket' not found:
	no field package.preload['socket']
	no file '/usr/local/share/lua/5.2/socket.lua'
	no file '/usr/local/share/lua/5.2/socket/init.lua'
	no file '/usr/local/lib/lua/5.2/socket.lua'
	no file '/usr/local/lib/lua/5.2/socket/init.lua'
	no file './socket.lua'
	no file '/usr/share/lua/5.2/socket.lua'
	no file '/usr/share/lua/5.2/socket/init.lua'
	no file './socket.lua'
	no file '/usr/local/lib/lua/5.2/socket.so'
	no file '/usr/lib/arm-linux-gnueabihf/lua/5.2/socket.so'
	no file '/usr/lib/lua/5.2/socket.so'
	no file '/usr/local/lib/lua/5.2/loadall.so'
	no file './socket.so'
stack traceback:
	[C]: in function 'require'
	max.lua:1: in main chunk
	[C]: in ?
pi@raspberrypi ~ $ lua
Lua 5.2.1  Copyright (C) 1994-2012 Lua.org, PUC-Rio
> ^C
pi@raspberrypi ~ $ luarocks list

Installed rocks:
----------------

basexx
   0.3.0-1 (installed) - /usr/local/lib/luarocks/rocks

luasec
   0.6-1 (installed) - /usr/local/lib/luarocks/rocks

luasocket
   3.0rc1-2 (installed) - /usr/local/lib/luarocks/rocks
