p1 and dial Topic is solved

[pvklink]

Can a dial be configured to show current use and total use that is registrated by the meter?

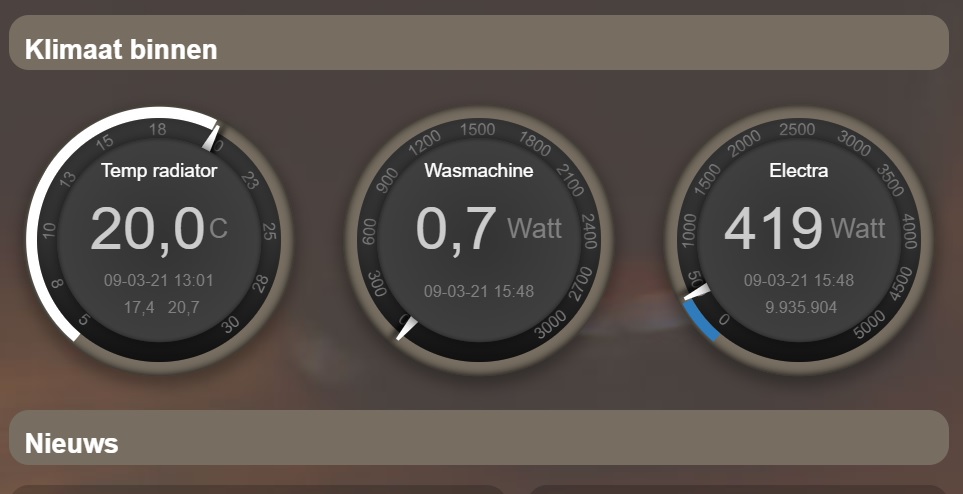

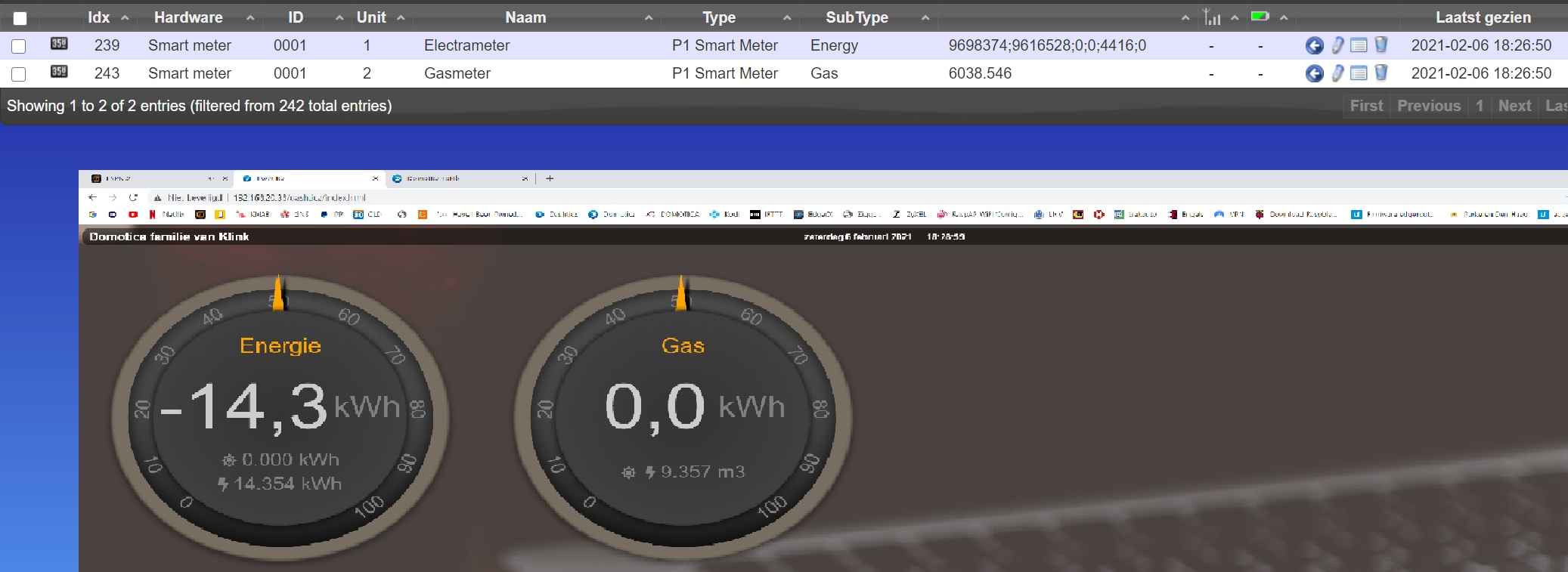

My domoticz has the values the meters shows
But my dial show other values


there are lot of differnces between my dial p1 meters and my domoticz data and the real meter

Gasmeter
current total usage on the meter = 6038 (like to see that and the current use or day use

Energie meter
Day total 9697
Night total 9618 (like to see that or otherwise together)
current use (like to see that too)

I tried to configure the right data, but no success...

blocks['p1'] = {
idx: 239,
title: 'Energie',
type: 'dial',
width: 3,
min: 0,
max: 100,
showring: true,
showunit: true,
shownumbers: true,
last_update: false,
data: [
{
value: 'T',
idx: '239_0',
},
{
value: 'T',
idx: '239_1',
}
]
}

[pvklink]

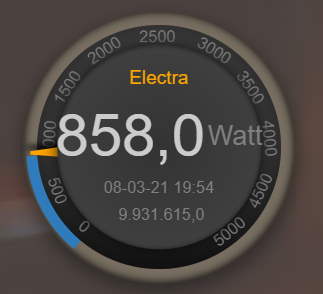

Is there a way to make the data 858 smaller?


Another need is to add the second part night meter of the p1 meter to the dial
An idea to achive this could be:
example p1 data: "9931615;9870242;0;0;3022;0" (and disabling the update date to make space)

blocks['testx'] = {
idx: 239,
title: 'Electra',
type: 'dial',
values: [
{value: 'Usage'},
{value: 'Data',idx: 239_1}
{value: 'Data',idx: 239_2}
],
width: 2,
hide_data: false,
switch: false,
min: 0,
max: 5000,
showring: true,
showunit: true,
shownumbers: true,
last_update: false}

[HansieNL]

As far as I know low an high tarif for p1 is IDX_7 and IDX_8. Can you try if that works?

[pvklink]

that gives an unknown error.
I read some of my previous topics and missed the remark of lokonli.
He did a suggestion to split the data field, i think that is the solution...

[Lokonli]

Working on it.

Little teaser:

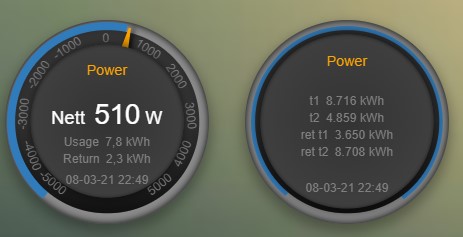

Currently I'm using the following dial definitions:

Code: Select all

blocks['p1'] = {
  type: 'dial',
  idx: 43,
  values: [
    {
      value: 'Nett',
      unit: 'W',
      label: 'Nett',
      addClass: 'primary',
    },
    {
      value: 'CounterToday',
      label: 'Usage',
      unit: 'kWh',
      decimals: 1
    },
    {
        value: 'CounterDelivToday',
        label: 'Return',
        unit: 'kWh',
        decimals: 1
    },
    ],
  layout: 1,
  showring: true,
  shownumbers: true,
  min: -5000,
  max: 5000,
  animation: false,
};

blocks['p1counters'] = {
    type: 'dial',
    idx: 43,
    values: [
      {
        value: 'Data0',
        unit: 'kWh',
        label: 't1',
        scale: 0.001
      },
      {
        value: 'Data1',
        unit: 'kWh',
        label: 't2',
        scale: 0.001
      },
      {
        value: 'Data2',
        unit: 'kWh',
        label: 'ret t1',
        scale: 0.001
      },
      {
        value: 'Data3',
        unit: 'kWh',
        label: 'ret t2',
        scale: 0.001
      },
      ],
    layout: 1,
    animation: false,
    fixed: true
  };

Features:
* Data is split into Data0, Data1, etc.
* Calculated fields: Nett
* labels
* scale
* addClass to set css classes per data item. 'primary' will give increased font.

I want to do a bit more of testing before I create the new beta.

[pvklink]

i wished i could help you, but missing the skills......
i already made a reservation for the p1 part

[pvklink]

My reservation for the P1
Only have to disable update_date so that i have space for the future 2 data elements (low and high usage (piek en dal gebruik)


[pvklink]

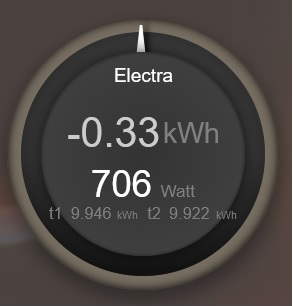

I installed, the latest beta, and yes, the data is splitted! GREAT

Still two questions:
1. can i disable the main value 0.33 and use the usage 706 Watt as main value of the dial
@update solved this by: showvalue: false

2. is it possibe that t1 and t2 are both on separate lines (break)
@update solved this too, by changing t1 in Dal and t2 in Piek !

3. Can i assign a value to the needle ?
for example the day usage ?


Code: Select all

blocks['p1_electra']	= {
	idx: 239,
	title: 'Electra',
	layout: 1,
	type: 'dial',
        color: 'white',
	values: [
          	{value: 'Usage',unit: 'Watt',  label: '',addClass: 'primary',},
		{value: 'Data0',unit: 'kWh',label: 't1',scale: 0.001},
	        {value: 'Data1',unit: 'kWh',label: 't2',scale: 0.001},
    		],
	width: 4,
//	icon: '',
	hide_data: false,
	switch: false,
        min: 0,
        max: 5000,
        showring: true,
        showunit: true,
	decimals: 0,
	animation: false,
	fixed: true,
        shownumbers: false,
        last_update: false}

[Lokonli]

You can add 'isNeedle: true' to a values item to bind the needle to it.

Sent from my SM-A320FL using Tapatalk

[pvklink]

Amazing!

1. Needle?
When attached to Data0 is shows a strange value, see image: value: 'Usage','isNeedle': true, unit: 'Watt', label: '',addClass: 'primary',},
When attached to Usage, it stays in the middle : value: 'Usage','isNeedle': true, unit: 'Watt', label: '',addClass: 'primary',},

2. (now i am going to overask, for the A , dont feel pressured, just to enthusiastic )
Is there a way to make the outerring white when below 1000 and red when above it ?
With this functionality there is no need for any js script handling....


Code: Select all

blocks['p1_electra']	= {
	idx: 239,
	title: 'Electra',
	layout: 1,
	showvalue: false,
	type: 'dial',
        color: 'white',
	values: [
          	{value: 'Usage',unit: 'Watt',  label: '',addClass: 'primary',},
		{value: 'Data0','isNeedle': true, unit: 'kWh',label: 'Piek',scale: 0.001},
	        {value: 'Data1',unit: 'kWh',label: 'Dal',scale: 0.001},
    		],
	width: 4,
//	icon: '',
	hide_data: false,
	switch: false,
        min: 0,
        max: 5000,
        showring: true,
        showunit: true,
	decimals: 0,
	animation: false,
	fixed: true,
        shownumbers: true,
        last_update: true}

[Lokonli]

Amazing!

1. Needle?
When attached to Data0 is shows a strange value, see image: value: 'Usage','isNeedle': true, unit: 'Watt', label: '',addClass: 'primary',},
When attached to Usage, it stays in the middle : value: 'Usage','isNeedle': true, unit: 'Watt', label: '',addClass: 'primary',},

It binds to the unscaled value, which is pretty big.
I'll check whether the scale factor can be used for the needle binding as well.

[pvklink]

ok!
dials are great !
Exp. what you can configure without the use of .js or css!

[Lokonli]

Amazing!

1. Needle?
When attached to Data0 is shows a strange value, see image: value: 'Usage','isNeedle': true, unit: 'Watt', label: '',addClass: 'primary',},
When attached to Usage, it stays in the middle : value: 'Usage','isNeedle': true, unit: 'Watt', label: '',addClass: 'primary',},

2. (now i am going to overask, for the A , dont feel pressured, just to enthusiastic )
Is there a way to make the outerring white when below 1000 and red when above it ?
With this functionality there is no need for any js script handling....


Code: Select all

blocks['p1_electra']	= {
	idx: 239,
	title: 'Electra',
	layout: 1,
	showvalue: false,
	type: 'dial',
        color: 'white',
	values: [
          	{value: 'Usage',unit: 'Watt',  label: '',addClass: 'primary',},
		{value: 'Data0','isNeedle': true, unit: 'kWh',label: 'Piek',scale: 0.001},
	        {value: 'Data1',unit: 'kWh',label: 'Dal',scale: 0.001},
    		],
	width: 4,
//	icon: '',
	hide_data: false,
	switch: false,
        min: 0,
        max: 5000,
        showring: true,
        showunit: true,
	decimals: 0,
	animation: false,
	fixed: true,
        shownumbers: true,
        last_update: true}

The needle was already connected to the scaled value. In your block the max is set, which is less than the current value, so the needle is in the max position.

However, the colored ring was not correct. I've fixed that in latest beta.

[pvklink]

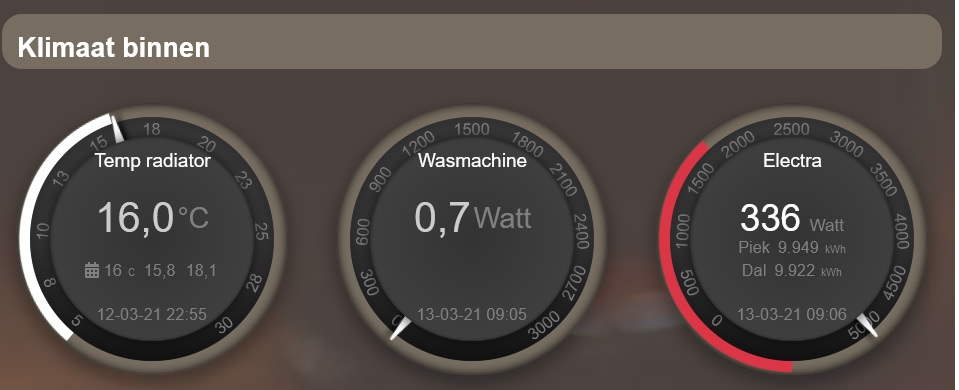

ok, gonna test it...

[pvklink]

Works perfecttttttttttttttttttttttttttttttt!

When you need more challenges for the dial, give a yel
