i am using the weather underground api

then name the sensor to Outside

in the hardware menu off the hgi80 you see outdoor sensor button
in the menu off evohome connect outdoor sensor and press the button in domoticz

if all goes well you will see the temp

Ok i got the module working with 1 DS18B20 sensor but i can't get it to work with 2 sensors does sombody got it working with 2 sensors and is willing to share the lua script here is my current lua script for 1 sensor --domoticz.lua require('ds18b20') -- ESP-01 GPIO Mapping gpio0 =3 gpio2 =4 ds18b20 ...

the room setpoint colors are the same as the evohome colors for that zone

the red sensor in my picture is a test sensor it is not seen for a while thats why it is red

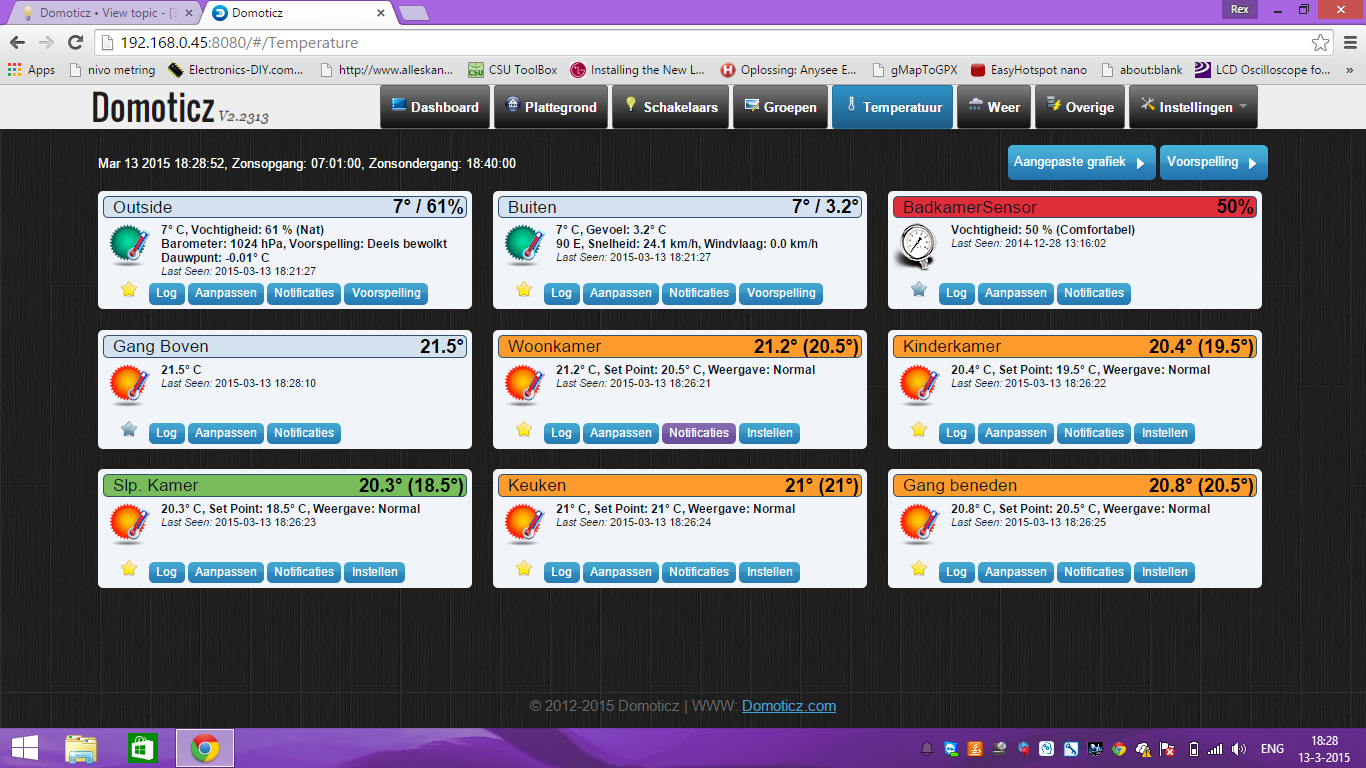

Screenshot

off the temp

The only problem that i had was missing firmware for the HGI80

after installing that and following the wiki

it is up and running

only the outdoor temp is not showing in the evohome the sensor is connected but no temp Solved got the name wrong

Also installing Evohome system

HGI80 is arriving in the mail tomorrow

i will post some information when it is up and running

No problems with group here

Made a group all lights 25%
Put the hue lights in
And It is working fine

Did a few tests

and 1 puls per 1 litre so this is working fine now

only problem that i have i don't know how to stop the script so i can update the value

other thing i have seen is that when i reboot the value in the counter file is reset to 0

so at reboot your meter reads 0,00 again

I got the following error during compile pi@domoticzpi ~ $ gcc -o isrcount.sh isrcounter1.c -l wiringPi isrcounter1.c:75:2: error: invalid preprocessing directive #{ isrcounter1.c:77:4: error: invalid preprocessing directive #++ isrcounter1.c:79:4: error: invalid preprocessing directive ...

Oke

small update

the change off interrupt in the script is perfect

now it counts ok but still 2 pulses 1 at beginning of detection 1 at end off detection

so set 2000 pulses for this moment

i am going to see if it is possible to put some debounce time in the script to fade 1 puls away

It changes every time some times it is 2 other times it is 4 or 16 the problem that i have at this moment is that the intensity of the led is to high so the pin voltage is not rising above 1,5 volts so i am going to make a small opamp circuit so it triggers at 0 volts and controls a transistor to ...

Thanks


got it compiled

and the script is running

i got some double counts when i trigger the sensor so that is the next challange

i also

are trying to get this working

i converted a eneco metersensor to do the job

i have pulses on the input now but i need help how to compile the c program and putting it all up

can someone help me with the shell command's

many thanks in advance

Small Tip from my side

try out the following program Fritzing

here you can design the scematics try it on virtual breadboard and also create the print layout

they also are able to make the PCB for you for a nice price

also with component print on top layer

This script runs the fan for a max time and then turns the fan off

i use this script and it's works perfect you could extend the max time so the fan will run longer
